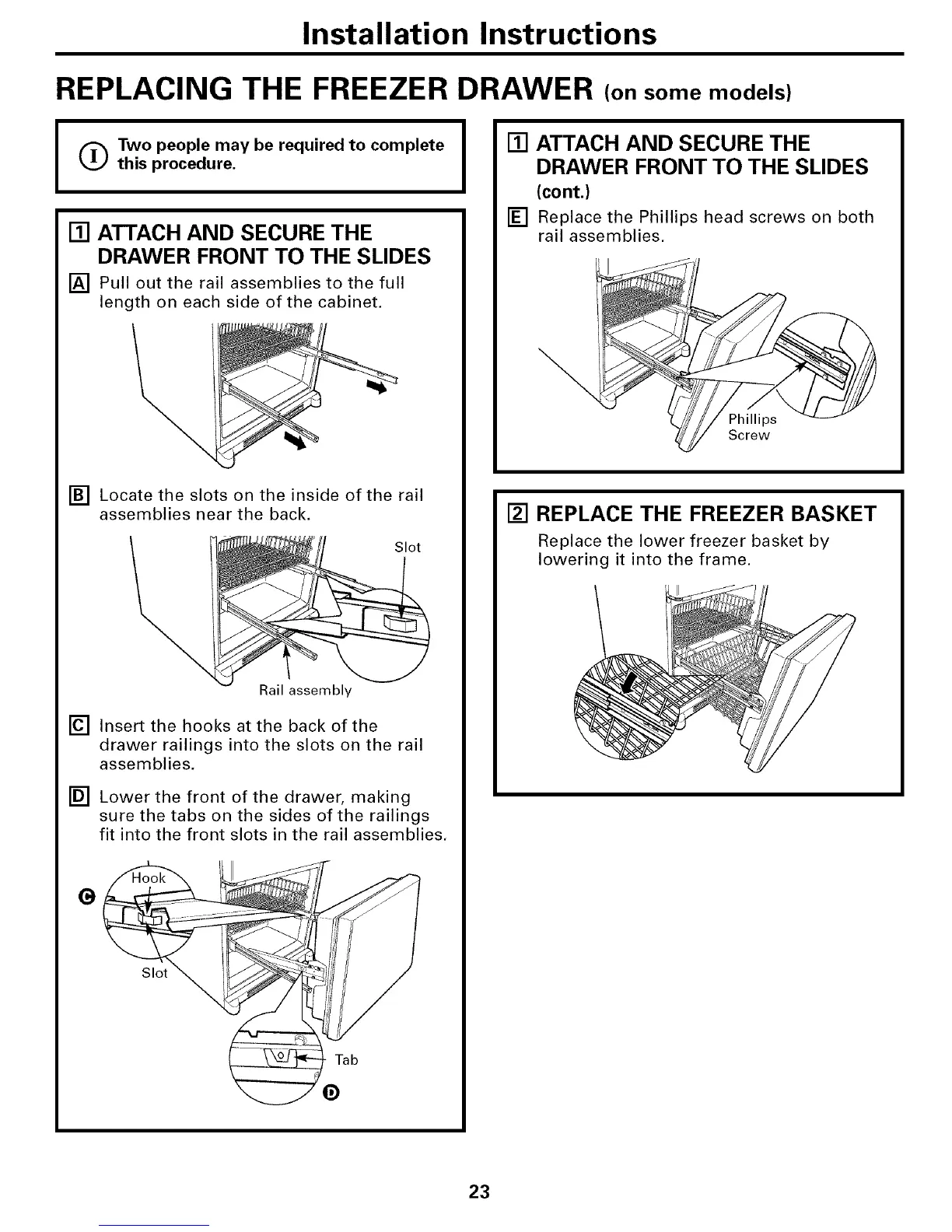

Installation Instructions
REPLACING THE FREEZER DRAWER (on some models)
I
(_Two people may be required to complete
this procedure.
[] ATTACH AND SECURE THE
DRAWER FRONT TO THE SLIDES
[] Pull out the rail assemblies to the full
length on each side of the cabinet.
[] Locate the slots on the inside of the rail
assemblies near the back.
Slot
[]
[]
G
Rail assembly
Insert the hooks at the back of the
drawer railings into the slots on the rail
assemblies.
Lower the front of the drawer, making
sure the tabs on the sides of the railings
fit into the front slots in the rail assemblies,
II
• "j_ '
I
[] ATTACH AND SECURE THE
DRAWER FRONT TO THE SLIDES
(cont.)
[] Replace the Phillips head screws on both
rail assemblies.
Phillips
Screw
[] REPLACE THE FREEZER BASKET
Replace the lower freezer basket by
lowering it into the frame.
23
