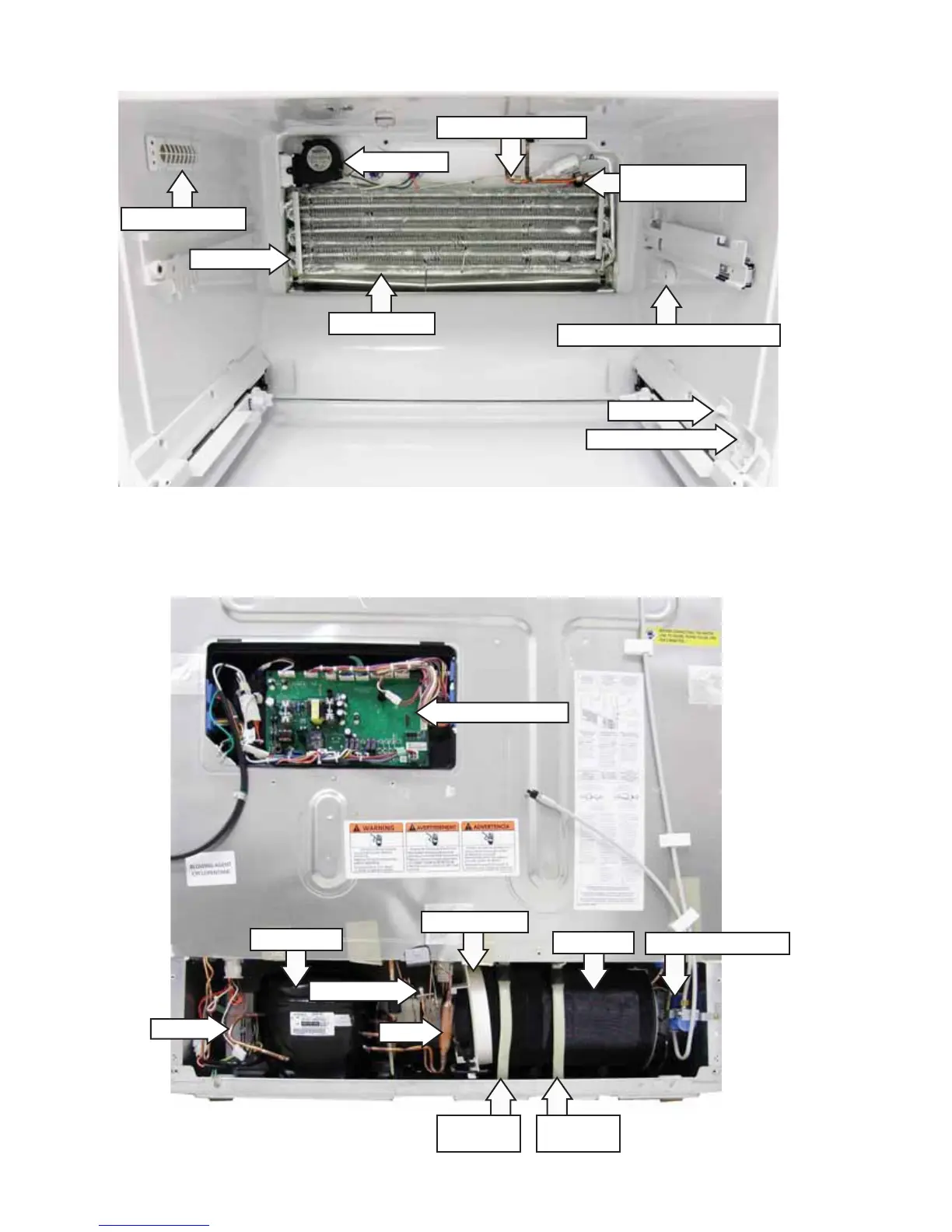

– 32 –
Freezer Compartment
Evaporator
Defrost Heater
Overtemperature
Thermostat
Evaporator Thermistor
Rear View
Main Control Board
Drier
Compressor
3-W
ay V
alve
Condenser
Inverter
Freezer Thermistor (behind cover)
Ice Box Fan
Light Switch
Light Switch Striker
Isolation W
ater V
alve
Condenser Fan
Fresh Food
Drain T
ube
Freezer
Drain T
ube
Ice Box
Air Return
31
33
Table of Contents
French Door
1
Table of Contents
3
Introduction
5
Nomenclature
6
Technical Data
7
Interior Airfl Ow
8
Installation
9
Freezer Drawer, Bin, and Basket
10
Fresh Food Door and Freezer Drawer Handles
10
Freezer Drawer Front
11
Removing the Fresh Food Doors
12
Control Features
14
Water Filter Cartridge
19
Dealer Demo Mode
22
Consumer Control LCD Models
24
Component Locator Views
31
Freezer Compartment
32
Control Board Connector Locator
33
Refrigeration System
35
Operation Overview
37
Components
40
Hinge Cover
40
Ambient Thermistor
41
Zigbee™ Board
41
Door Closure Mechanisms
42
Interior Lights
43
Door/Drawer Gaskets
43
Deli Pan Assembly
45
Thermistors
49
Fresh Food Defrost Heater
51
Fresh Food Evaporator Cover
51
Fresh Food Evaporator Thermistor
52
Fresh Food Fan
52
Fresh Food Overtemperature Thermostat
52
Freezer Drawer Slide Assemblies
53
Freezer Evaporator Cover
54
Freezer Fan
55
Freezer Defrost Heater
56
Freezer Overtemperature Thermostat
56
Ice Box Fan
57
Freezer Evaporator Thermistor
57
Machine Compartment Cover
58
Condenser Fan
59
Freezer and Fresh Food Drain Trap Tubes
59
Way Valve Coil
60
Way Valve
61
Inverter
61
Compressor Replacement
62
Inverter Compressor
63
Single-Speed Compressor
63
Dispenser Assembly
64
Ice Box Door Assembly
67
Ice Bucket
68
Icemakers
69
Ice Box Thermistor
72
Auger Motor
73
Water Filter
74
Water Filter Manifold
75
Water Tank
77
Isolation Water Valve
78
Water Valve and Flowmeter
78
Articulating Door Mullion
80
Circuit Boards
81
Service Diagnostic Functions
83
Service Diagnostic Mode
83
Schematics
87
Warranty
91
