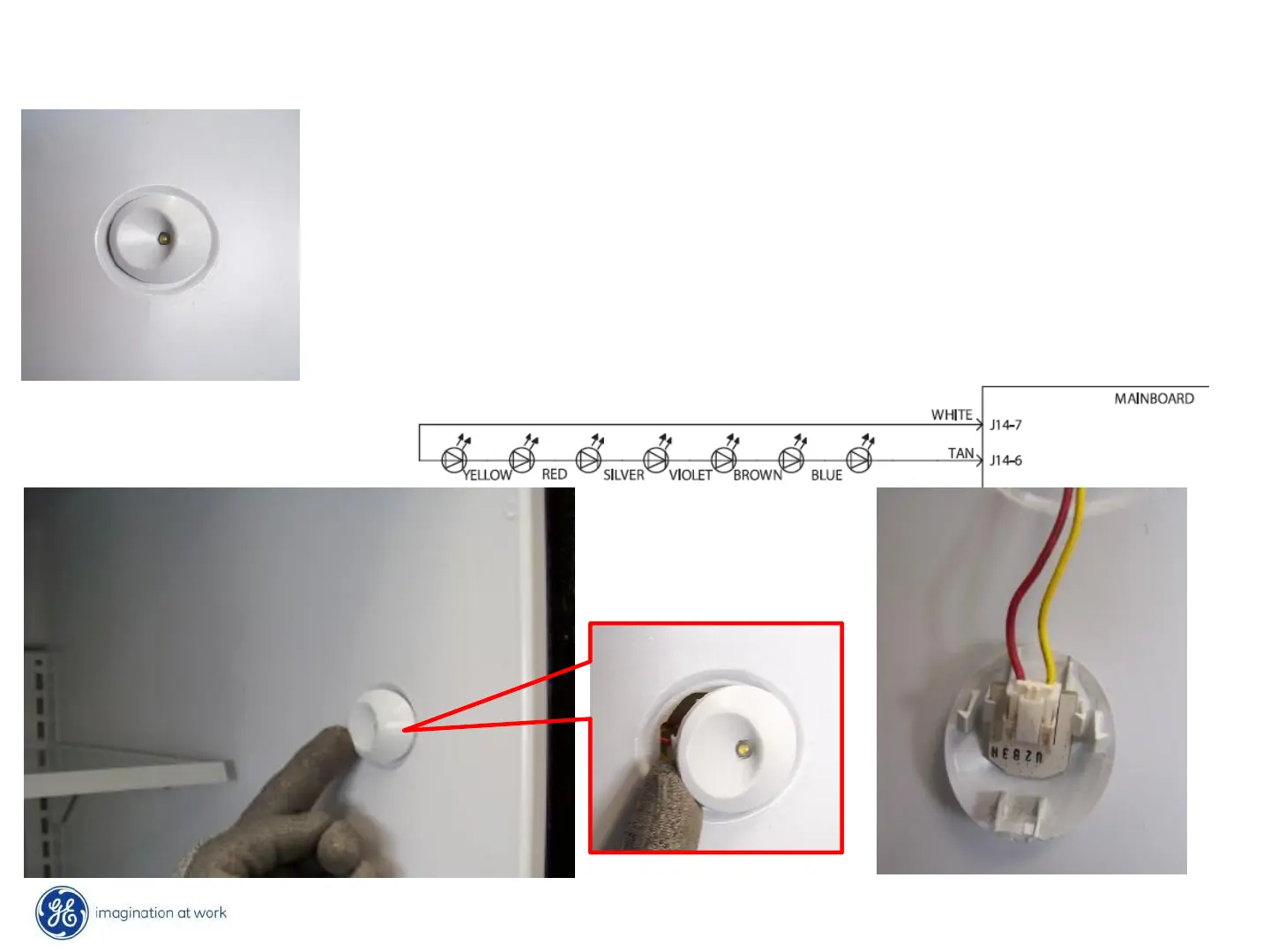

Fresh Food Showcase Pin-Point LEDs
¾ The Pin-Point LEDs are in either a 5 or 7 LED series circuit.
¾ If one LED fails (but the LED’s resistor is still OK), that LED will not be lit
while the others will be dim.
¾ When one LED fails completely, none of the LEDs will light.
¾ With a voltmeter, 5VDC – 20VDC can be read across the terminals of the
completely failed LED assembly.
¾ To remove the LED, pry up at the rear and slide to rear to release the tab.
¾ Each LED has a 2-pin connector for easy replacement.
