48
5/4/2012
Fr
esh F
ood Evaporator Cover

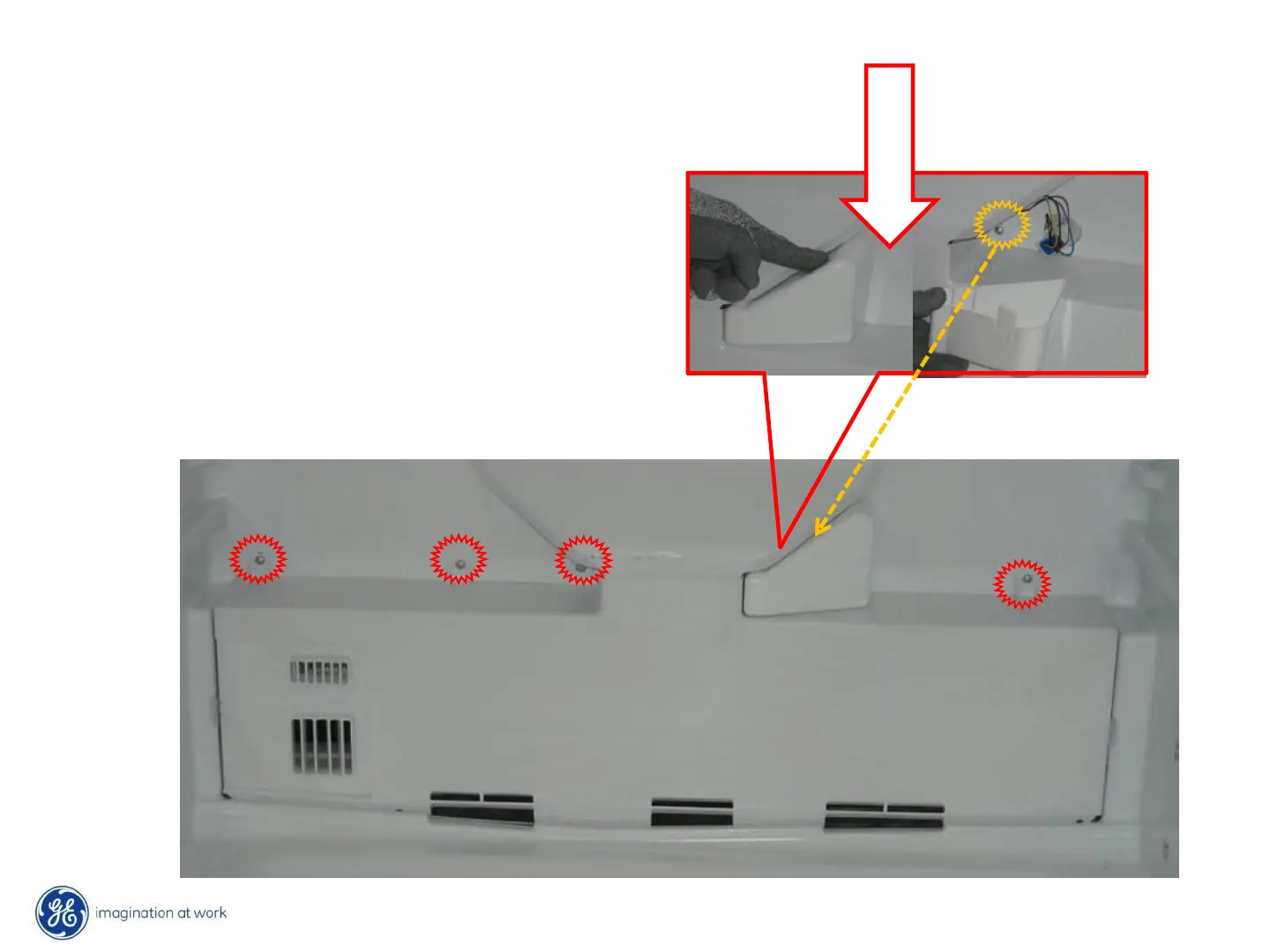

¾
Remov
e the fr
esh food
fan co
nnector
cover by
pressin
g down at the
upper
right
,
then slide it straight ou
t
.
¾
Remov
e 5 Phillips scr
ews. 1 sc
rew is
behind the conn
ector cover
.
