Condenser Fan Motor
¾ The condenser fan operates within
a range of 1000–2100 RPM*

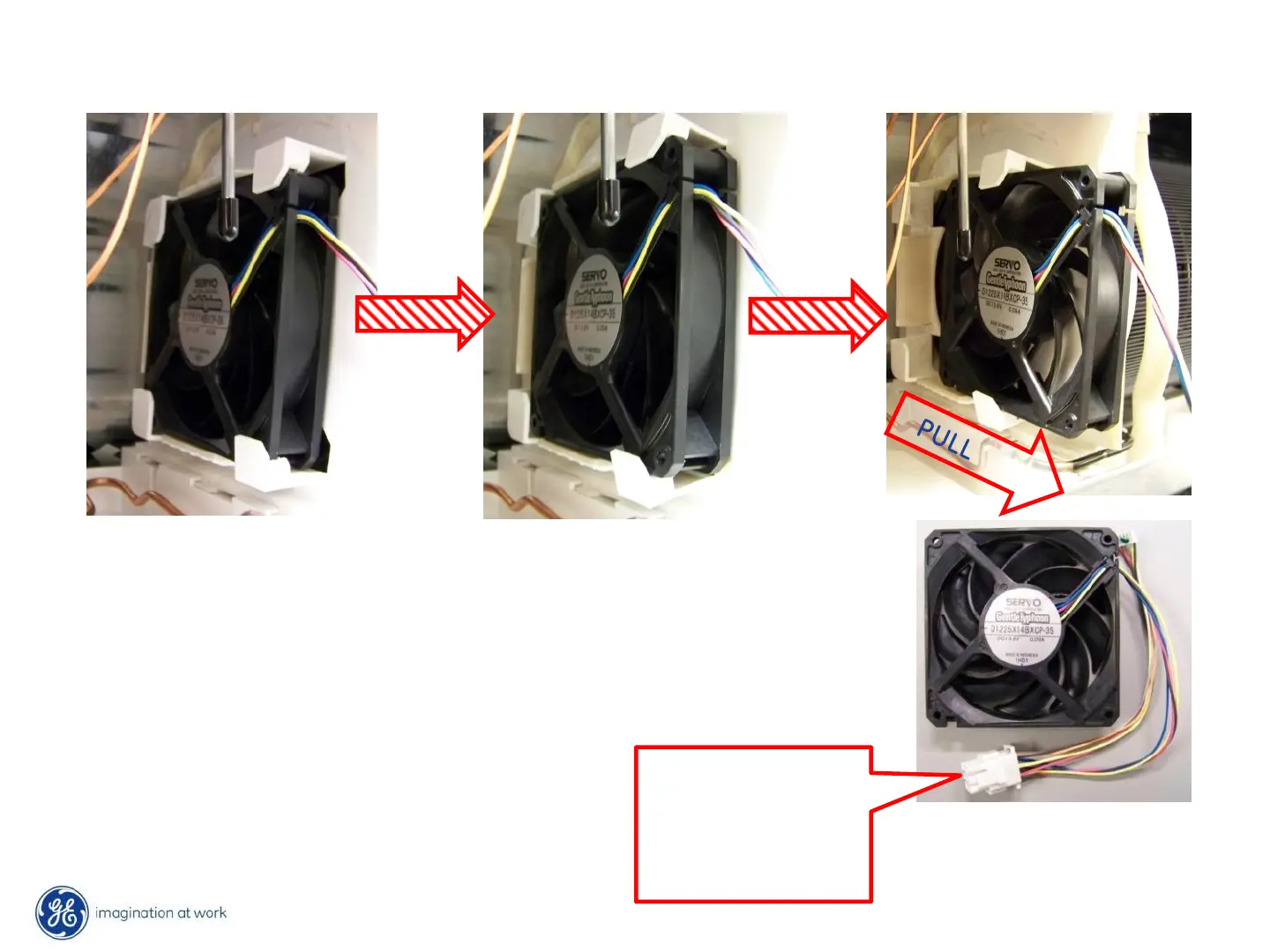

To remove:
¾ Remove the rear access cover
¾ Disconnect the harness connector
¾ Pull the fan assembly toward the
rear to disengage from the bracket
* Values are approximate and preliminary
FAN color code:
RED – 12vdc+
BLACK – 12 VDC-
YELLOW – PWM SPEED
BLUE – RPM FEEDBACK
