Fresh Food Fan Testing
¾ The fresh food fan is located at the base of the fresh food air duct.
¾ The fresh food evaporator cover must be removed to access the fan, but can easily be checked at the
electrical connector.

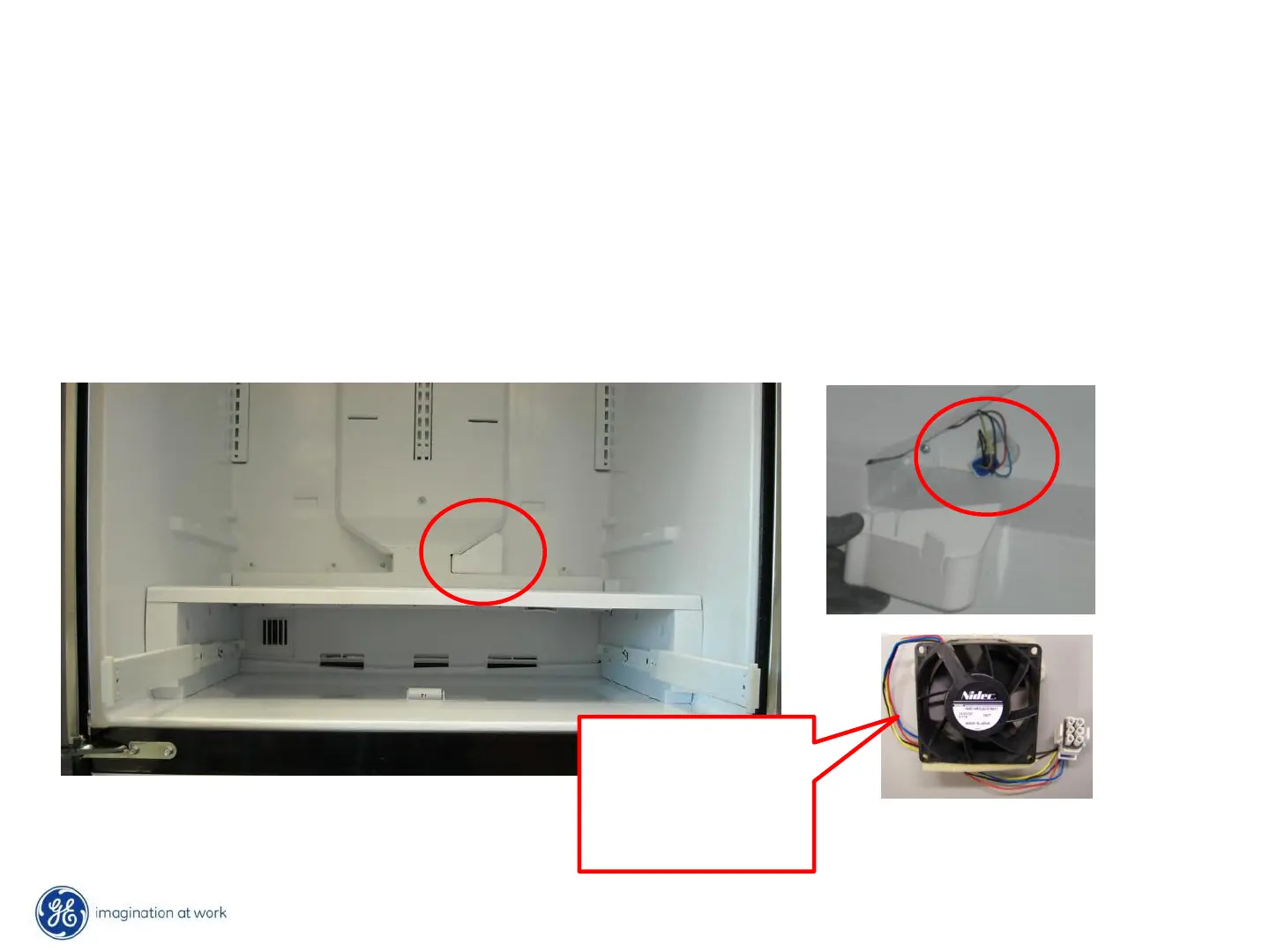

¾ Remove the right vegetable bin. Removing the electrical cover (A) will expose the electrical connector (B) for
testing with a multi-meter.
¾ The fresh food fan operates at 3 speeds
1. LOW SPEED = 2700 RPM*
2. MEDIUM SPEED = 3000 RPM*
3. HIGH SPEED = 3300 RPM*
Note: Fan speed range of 1500–4100 RPM is acceptable
* Values are approximate and preliminary
A
B
FAN color code:
RED – 12vdc+
BLACK – 12 VDC-
YELLOW – PWM SPEED
BLUE – RPM FEEDBACK
