49-3000353 Rev 6 23
Installation Instructions
ACCESSORIES:
Order on-line at GEApplianceparts.com, 24 hours a day or by phone at 877.959.8688 during normal business hours.
Follow the Installation Instructions included in the Kit for all clearances and installation requirements.
*With leveling legs retracted. See the COMBO DIMENSIONS section above for legs extension dimensions.
MINIMUM
CLEARANCES
Alcove or Closet
• Rear = 0”*
• Sides = 0”
• 7RS Ǝ
• )URQW Ǝ
• Consideration must be given to provide adequate clearance for installation and service.
• Closet doors must be louvered or otherwise ventilated and have at least 60 square inches (387.1 cm
2
) of open area.
* To enable 0” clearance on the back of the Combo, you must use 90° elbow hoses. Otherwise you may require
some additional clearance to avoid rubbing of the hoses against the back wall.
Riser:
53-5/8”*
(136.2 cm)
0”
0”
0”
0”
0”

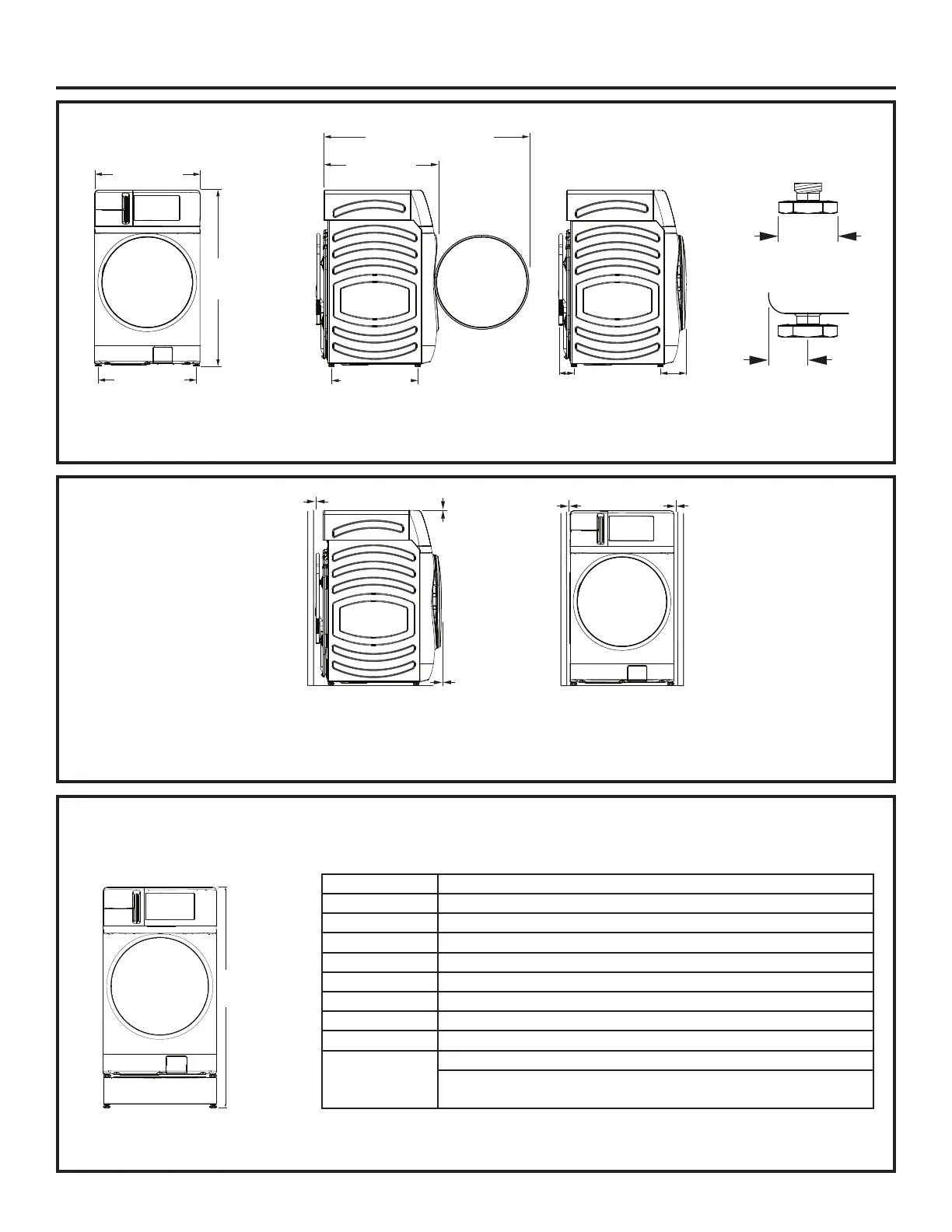

COMBO DIMENSIONS
*With leveling legs retracted: 46-3/4 (118.75 cm). / With leveling legs fully extended: 47-1/4 (120 cm).
28”
(71.2 cm)
46-3/4”*
(118.75 cm)
Front View
26”
(66.2 cm)
Side View
30-1/2”
(77.5 cm)
54-1/2” (138.5 cm)
22-7/8”
(58.1 cm)
1"
(2.54 cm)
Center of leveling
legs to cabinet sides
1-5/8"
(4.1 cm)
Width of leveling legs
2-1/8”
(5.5 cm)
6-3/4”
(17.2 cm)
Side View
Part Number Accessory
GFR0728PTDS Black Slate Riser
WX14X10011 6 ft stainless steel washer hoses with 90° elbows; 2-pack
WH49X316 Unit drain hose extension kit - Approximately 44”
WH41X36697 Unicouple Hose Assembly for Clothes Washer
GFAPC120V 4 Prong 240V to 110V Plug Converter
WX08X10070 4" Duct Vent Cap
PM14X10056 Appliance Brush Set
PM7X2 Universal low profile washer floor tray - White
GFR0728 28” width Riser without drawer
NOTE: The 28” width tall pedestal with drawer is not advised for use
with the Combo.
