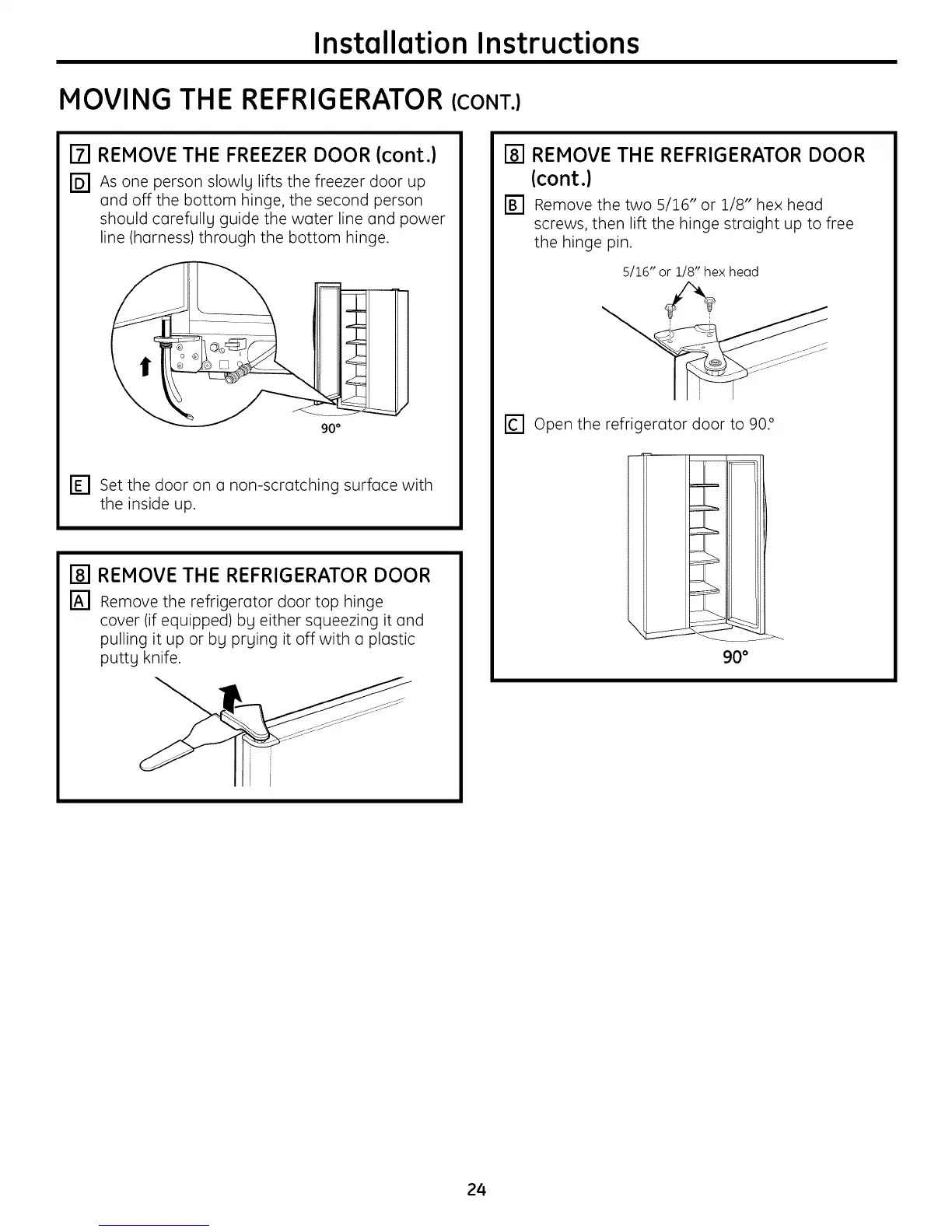

Installation Instructions
MOVING THE REFRIGERATOR (CONT.)
171REMOVE THE FREEZER DOOR (cont.)
[] As one person slowly lifts the freezer door up
and off the bottom hinge, the second person
should carefully guide the water line and power
line (harness) through the bottom hinge.
[] Set the door on a non-scratching surface with
the inside up.
[] REMOVE THE REFRIGERATOR DOOR
_'1 Remove the refrigerator door top hinge
cover (if equipped) by either squeezing it and
pulling it up or by prying it off with a plastic
putty knife.
r_ REMOVE THE REFRIGERATOR DOOR
Icont.I
rB1 Remove the two 5/16" or 1/8" hex head
screws, then lift the hinge straight up to free
the hinge pin.
5/16" or 1/8" hex head
Open the refrigerator door to 90°
90 °
24
