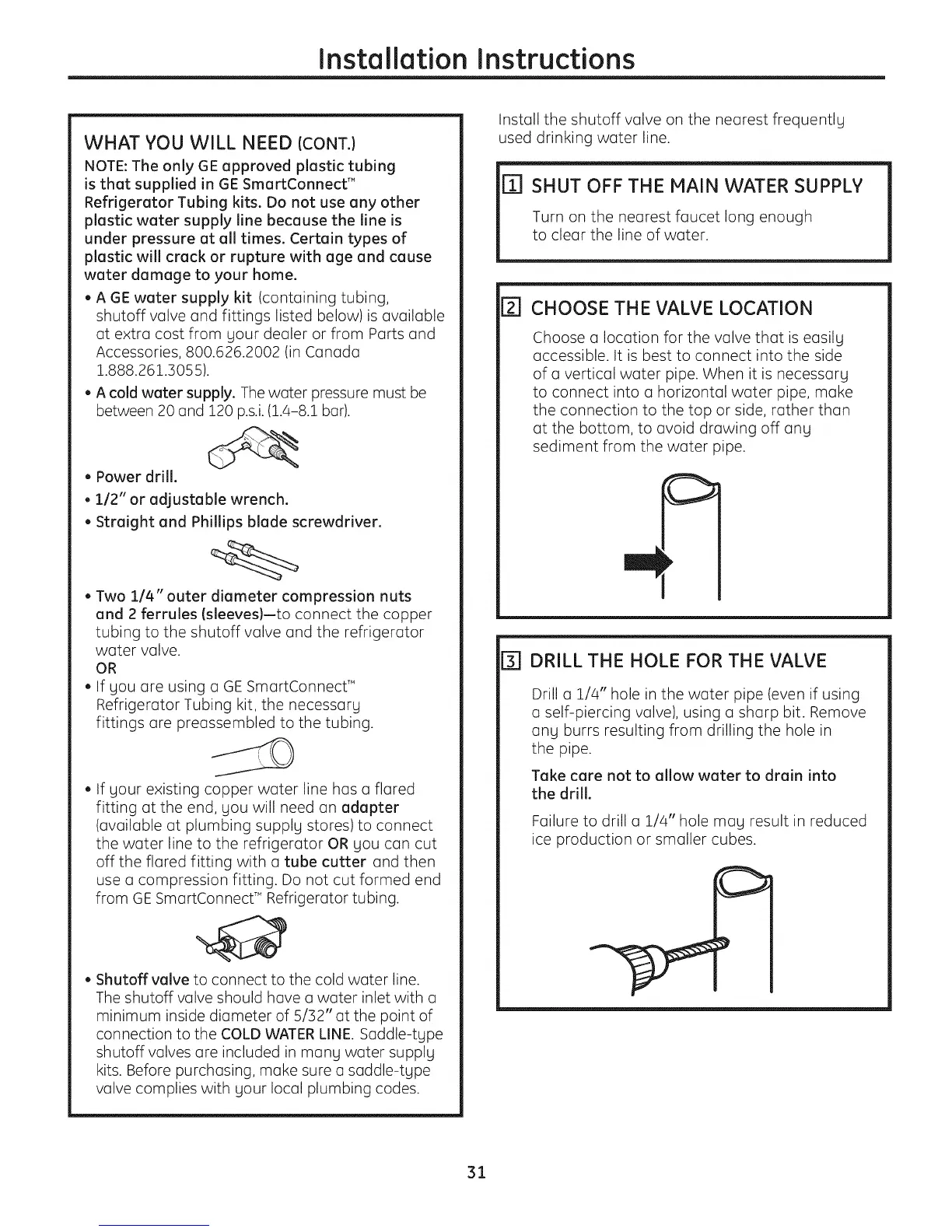

Installation Instructions
WHAT YOU WILL NEED (CONT.)
NOTE: The only GE approved plastic tubing
is that supplied in GE SmartConnect TM
Refrigerator Tubing kits. Do not use any other
plastic water supply line because the line is
under pressure at all times. Certain types of
plastic will crack or rupture with age and cause
water damage to your home.
, A GE water supply kit (containing tubing,
shutoff valve and fittings listed below)is available
at extra cost from Llour dealer or from Parts and
Accessories, 800.626.2002 (in Canada
1.888.261.3055).
, A cold water supply. The water pressure must be
between 20 and 120 p.s.i.(1.4-8.1 bar).
, Power drill.
,1/2" or adjustable wrench.
, Straight and Phillips blade screwdriver.
, Two 1/4" outer diameter compression nuts
and 2 ferrules (sleeves)--to connect the copper
tubing to the shutoff valve and the refrigerator
water valve.
OR
, If gou are using a GE SmartConnect T"
Refrigerator Tubing kit, the necessary
fittings are preassembled to the tubing.
, If Llour existing copper water line has a flared
fitting at the end, LlOUwill need an adapter
(available at plumbing supply stores) to connect
the water line to the refrigerator OR gou can cut
off the flared fitting with a tube cutter and then
use a compression fitting. Do not cut formed end
from GE SmartConnect T"Refrigerator tubing.
, Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
minimum inside diameter of 5/32" at the point of
connection to the COLD WATER LINE. Saddle-tgpe
shutoff valves are included in mang water supplg
kits. Before purchasing, make sure a saddle-tgpe
valve complies with gout local plumbing codes.
Install the shutoff valve on the nearest frequentlg
used drinking water line.
m SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet long enough
to clear the line of water.
[] CHOOSE THE VALVE LOCATION
Choose a location for the valve that is easilg
accessible. It is best to connect into the side
of a vertical water pipe. When it is necessarg
to connect into a horizontal water pipe, make
the connection to the top or side, rather than
at the bottom, to avoid drawing off ang
sediment from the water pipe.
mml
DRILL THE HOLE FOR THE VALVE
Drill a 1/4" hole in the water pipe (even if using
a self-piercing valve), using a sharp bit. Remove
ang burrs resulting from drilling the hole in
the pipe.
Take care not to allow water to drain into
the drill.
Failure to drill a 1/4" hole mag result in reduced
ice production or smaller cubes.
