GE Profile 42 - Page 18

1/2"
1"
3/4" Custom Panel
(Nominal Size)
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Fresh Food
Door
Backer Panel
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim
3/4"
1/4"
1"

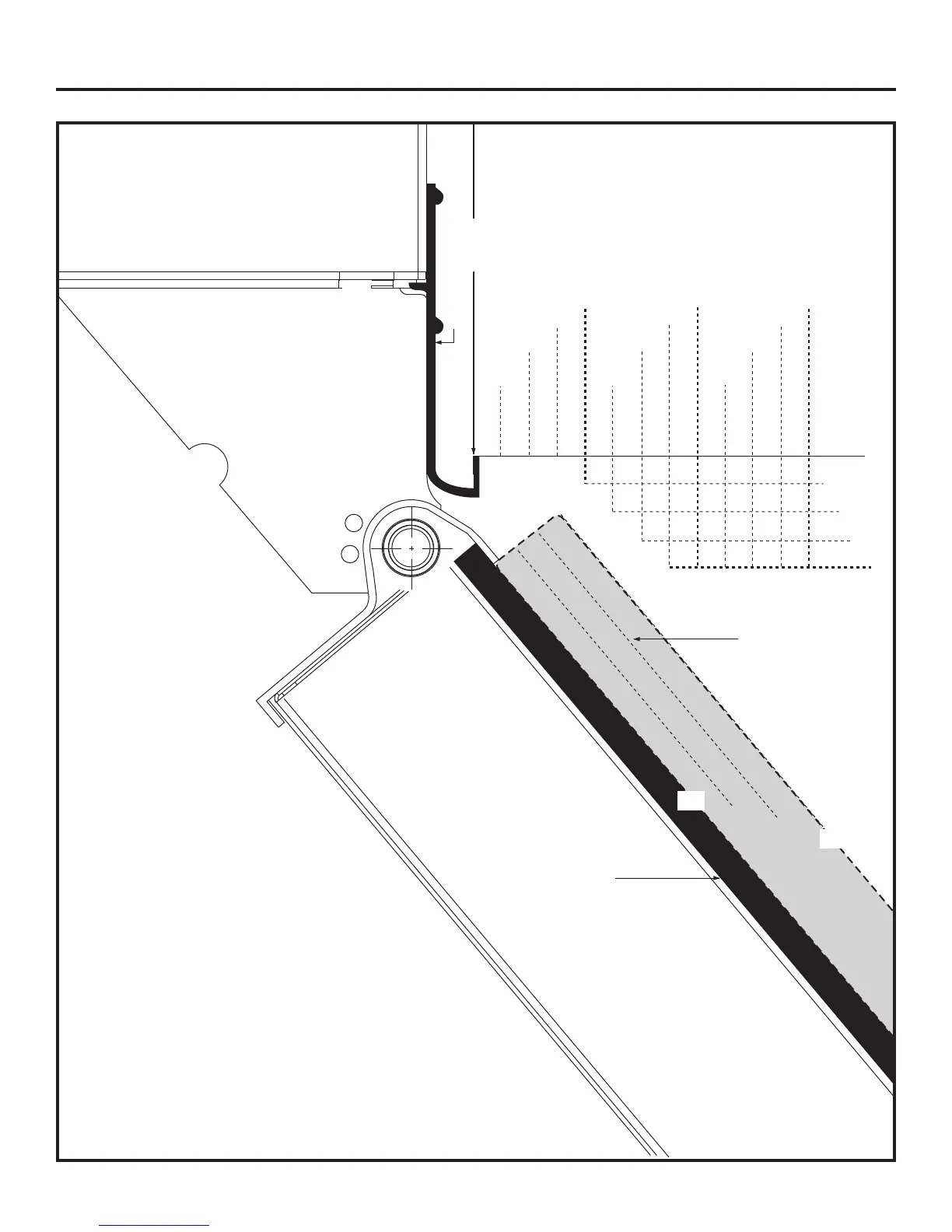

Top View
130° Door Swing
(factory setting)
Scale 1:1
Installation Instructions
18
