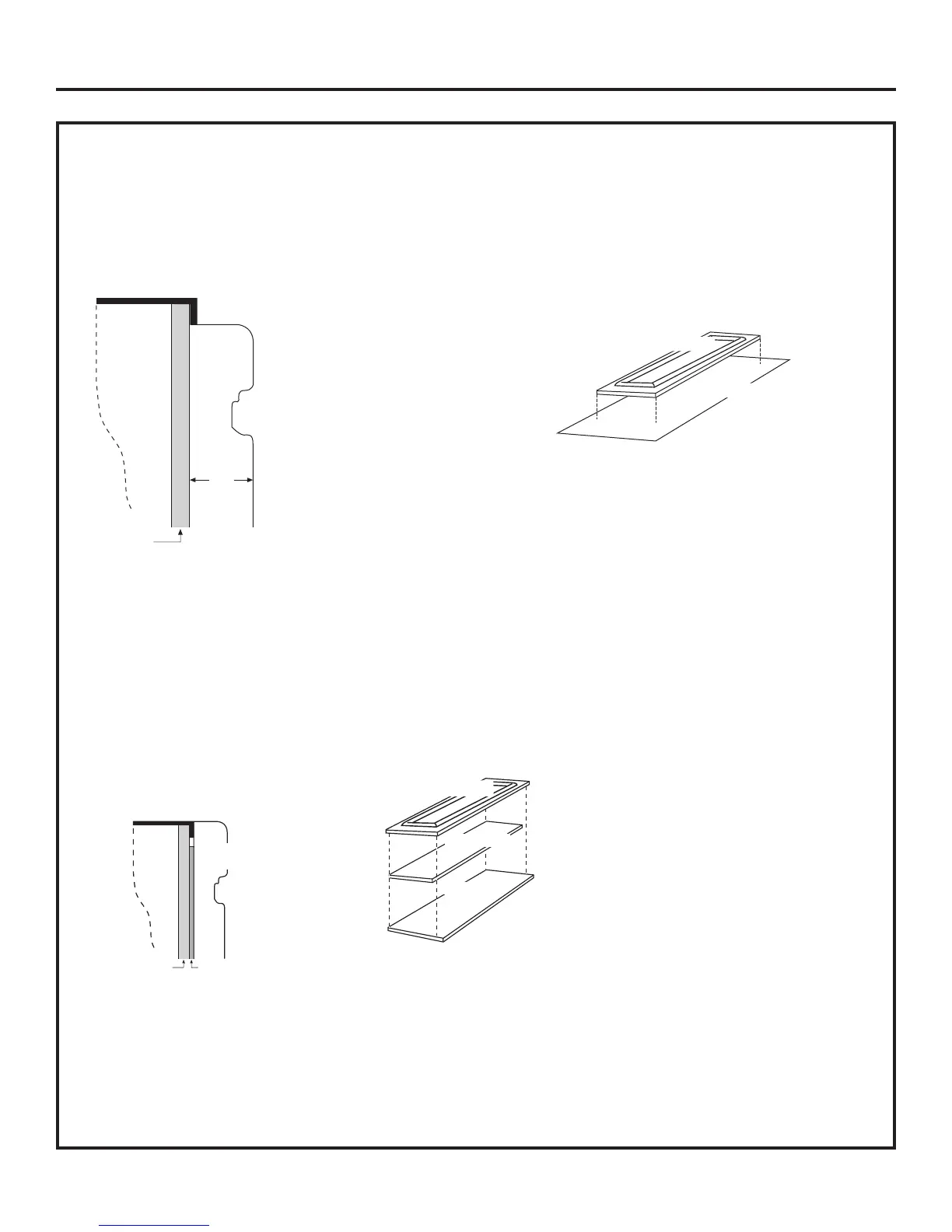

3/4” FRAMED CUSTOM PANEL OPTION
For a more custom appearance, 3/4” framed custom panels
may be installed on trimmed models. The overlay panel is
secured to a 1/4” finished backer panel. The assembled
custom panel then slides into the trim with the same procedure
described on page 37.
3/4” FULL-WIDTH OVERLAY
CUSTOM PANEL OPTION
This design provides a nearly trimless appearance. The full width overlay
panel covers most of the door trim. In this design, a spacer panel must
be installed between the finished backer and overlay panel.
NOTE: Left-to-right offset is not
equal to top-to-bottom offset.
NOTE: Left-to-right offset is not equal
to top-to-bottom offset.
.250 + .750 = 1.000 Maximum Total Panel
Thickness
IMPORTANT NOTE: Maximum total weight
is 70 pounds for any assembled Fresh Food
panel, 45 pounds total for the Freezer panels
and 15 pounds for the grille panel.
3/4"
Custom
Overlay
Panel
1/4"
Backer
Panel
Door
3/4"
Overlay Panel
Backer Panel
Custom
Overlay
Panel
1/4"
Backer
Panel
Door
.10 Inch
Spacer
Installation Instructions
22
.250 + .10 + .750 = 1.100 Maximum Total Panel Thickness
Spacer Panel
Overlay Panel
Backer Panel
