GE Profile PSC23MSTSS Dimensions And Installation Information

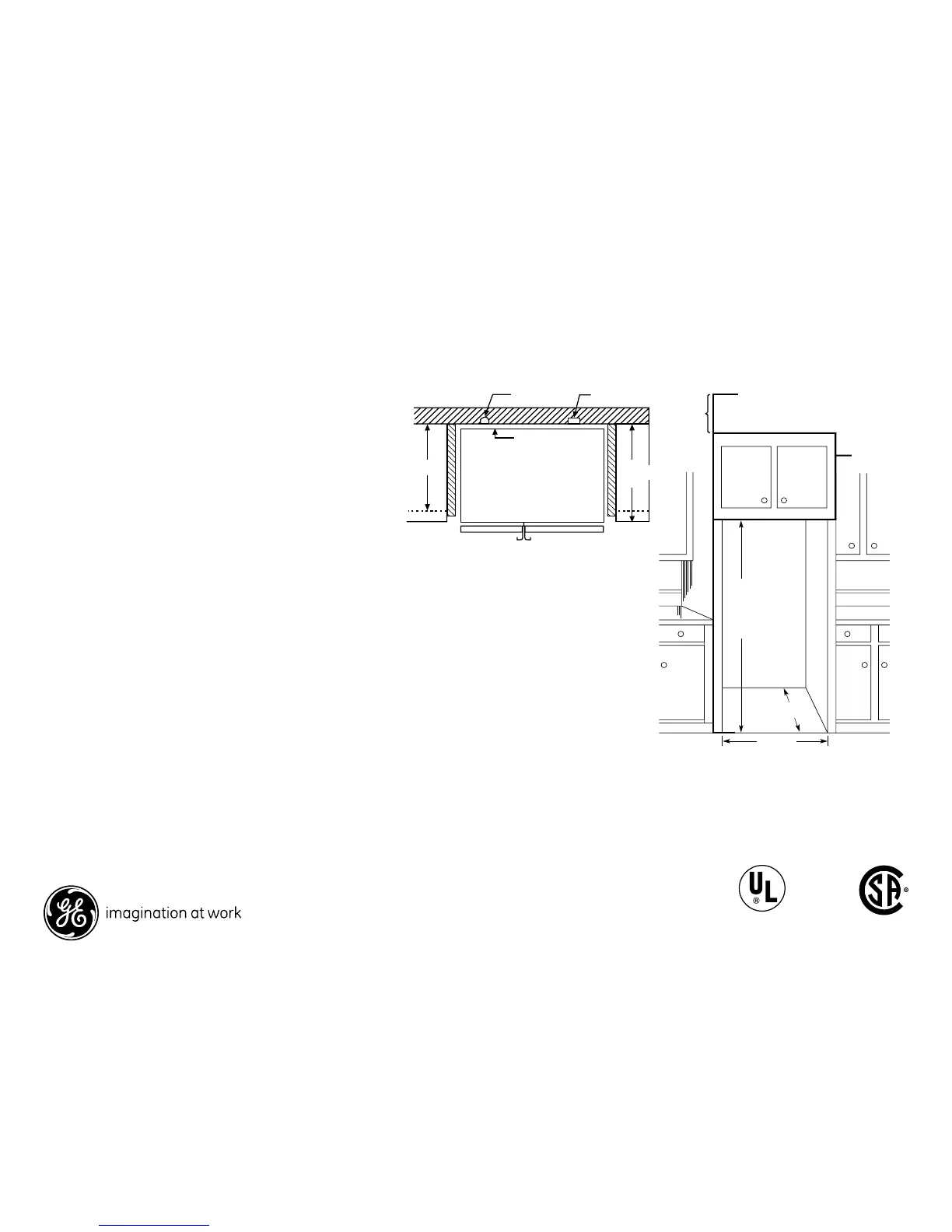

Rough-In Dimensions and Installation Information (in inches)
For answers to your Monogram,
®
GE Profile
™
or
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
service,
800.626.2000.
Installation Tips to Maximize the Built-In Look
• All wall/floor molding should be removed prior to installation.
• Water recess on rear wall recommended to prevent water
line damage. 48" minimum length, 1/4" diameter water
line tubing recommended.
• When possible, recess both copper water line and electrical
outlet. (See local codes)
• Front and rear leveling legs are adjustable for the built-in look.
(See owner’s manual)
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
25"
Counter
Top
Electrical Water
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
FOR 21 CUBIC FOOT MODELS
FOR 24 CUBIC FOOT MODELS
Fig 2A eps
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
36-1/8"
24-1/2"
*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from
the finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models
to allow additional clearance between cabinet doors and top of refrigerator trim
when cabinet doors are in open position.
Collar Trim In. w/ceiling
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
PSC23MST
GE Profile CustomStyle
™
22.6 Cu. Ft. Stainless Side-by-Side Refrigerator with Dispenser
Specification Revised 10/06
210205
Listed by
Underwriters
Laboratories
* The rough-in dimensions of 70-1/4”/72-1/4” are minimum and measured from the finished
floor to top of opening (or the underside of the overhead cabinets) For Models with Trim Kit:
If frameless style cabinets are planned for above the refrigerator, you may need to consider
adding a maximum of 1/4” (70-1/2”) to height of opening for 23 cu. ft. models and
1/8” (72-3/8”) for 25 cu. ft. models to allow additional clearance between cabinet doors
and top of refrigerator trim when cabinet doors are in open position.

GE Profile PSC23MSTSS Specifications

General

Brand	GE
Model	Profile PSC23MSTSS
Category	Refrigerator
Language	English
