Installation Instructions

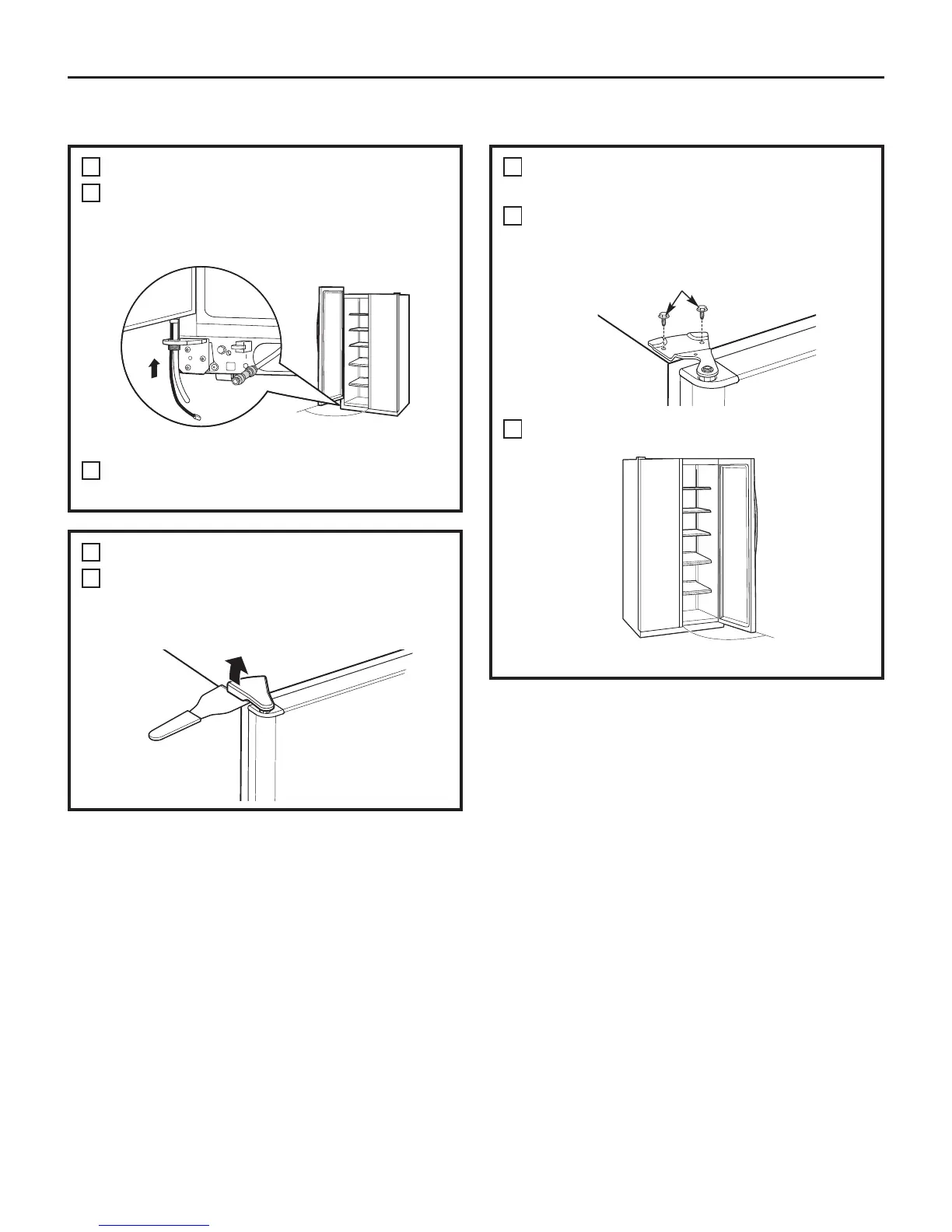

MOVING THE REFRIGERATOR (CONT.)
REMOVE THE FREEZER DOOR (cont.)
As one person slowly lifts the freezer door up
and off the bottom hinge, the second person
should carefully guide the water line and power
line (harness) through the bottom hinge.
Set the door on a non-scratching surface with
the inside up.
7
D
E
90°
REMOVE THE REFRIGERATOR DOOR
Remove the refrigerator door top hinge cover
(if equipped) by either squeezing it and pulling it
up or by prying it off with a plastic putty knife.
8
A
REMOVE THE REFRIGERATOR DOOR
(cont.)
Remove the two 5/16” or 1/8” hex head screws,
then lift the hinge straight up to free the hinge
pin.
Open the refrigerator door to 90.°
8
B
C
5/16” or 1/8” hex head
90°
To Next Page
