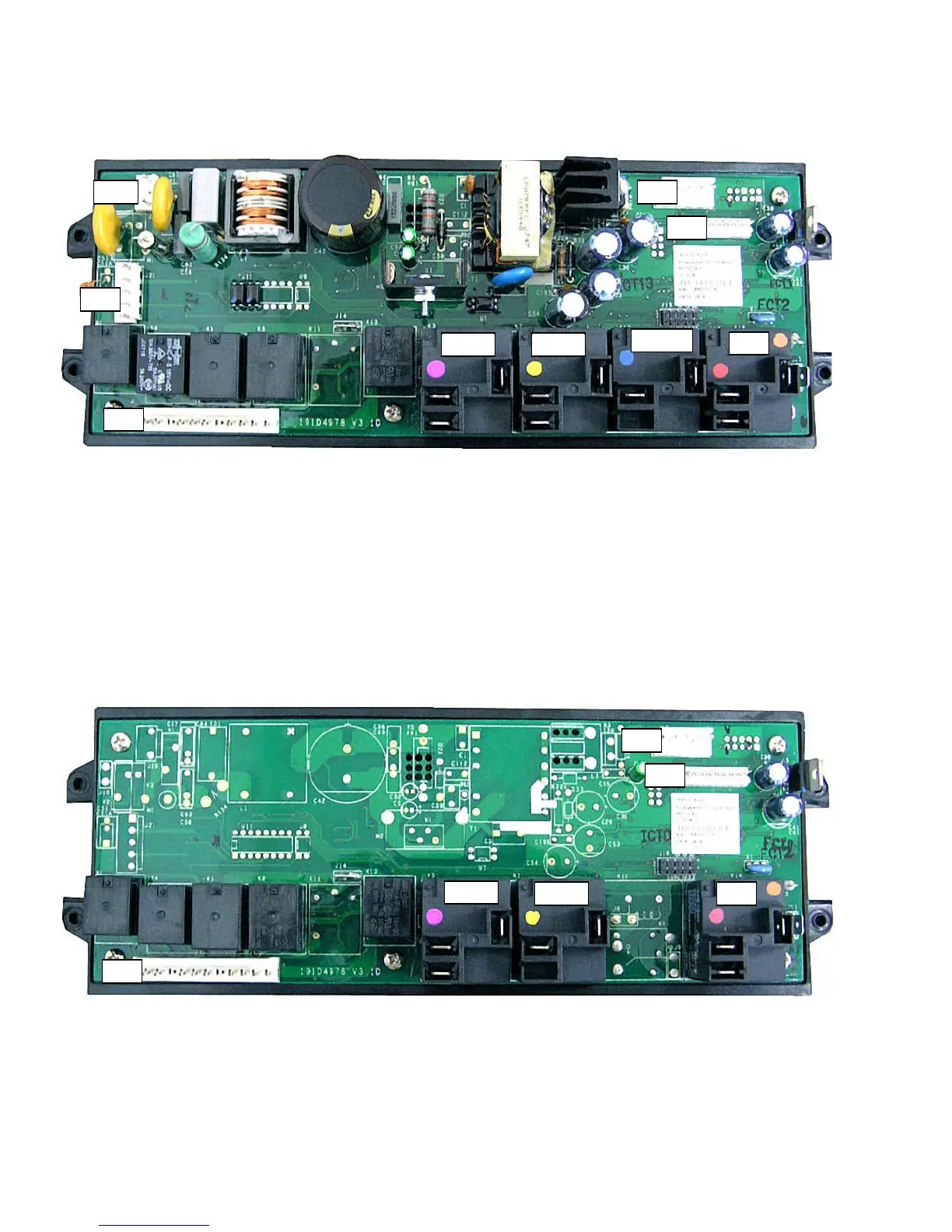

Relay Boards
Note: There is one relay board for each oven.
Lower Oven Relay Board
Upper Oven Relay Board
J16
J16
J17
J17
Broil Bake
CONVX
DLB
Broil
Bake DLB
J7
J7
J21
J20
J
7 Lower Oven: Oven Light, CONVX Fan, Lock
Motor
J16 Lower Oven Door Lock, Sail Switch
J17 Communication Cable, Lower Oven Clean
J
20 Lower Oven and Upper Oven: Thermal Limit
Switches
J21 Lower Oven and Upper Oven: Door Switches
J
7 Upper Oven: Oven Light, Cooling Fan, Lock
Motor
J16 Upper Oven Door Lock
J
17 Communication Cable, Upper Oven Clean
