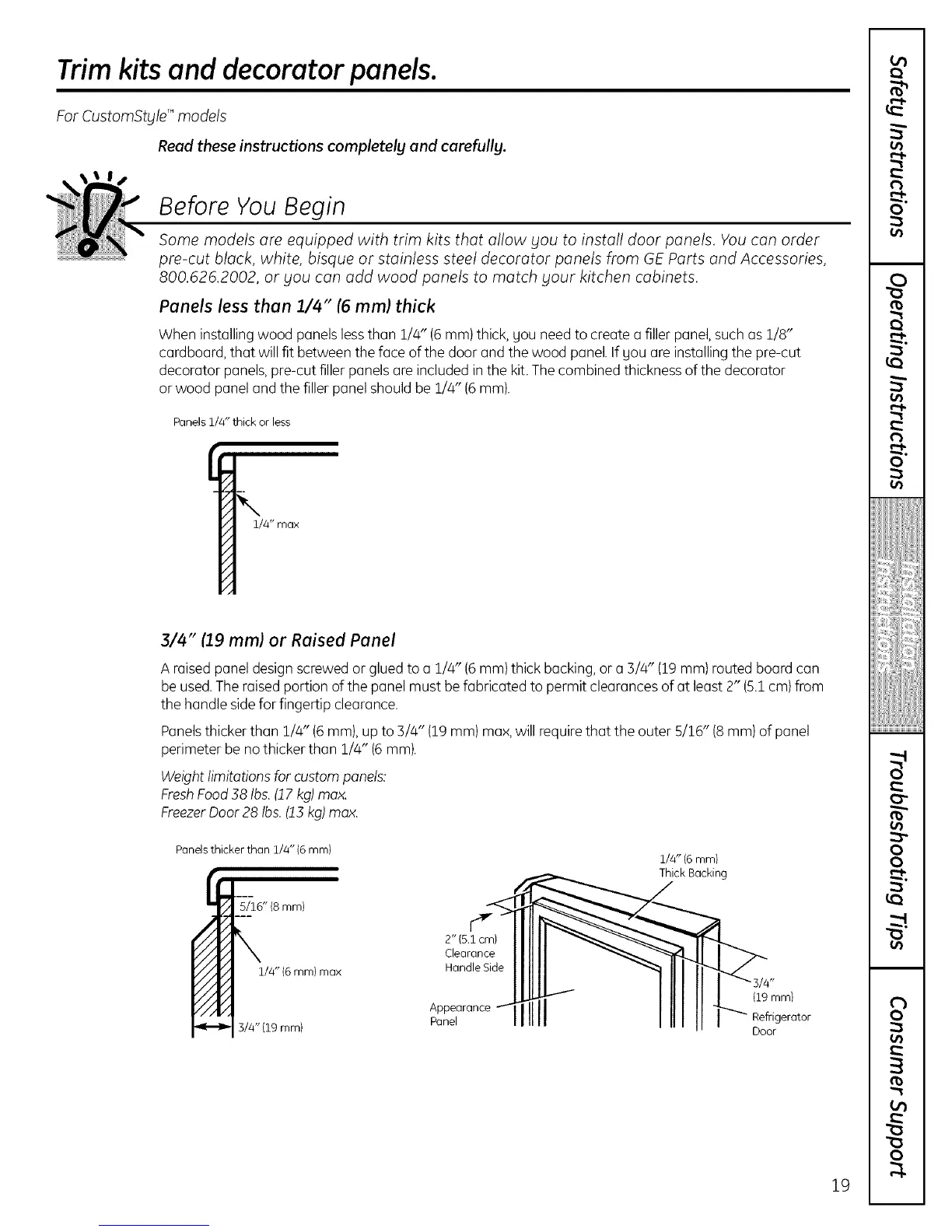

Trim kits and decorator panels.
For CustomStgle _"models
Read these instructions completely and carefully.
Before You Begin
Some models ore equipped with trim kits that allow you to install door ponels. You con order
pre-cut block, white, bisque or stainless steel decorator panels from GE Ports end Accessories,
800.626.2002, or you con odd wood ponels to motch your kitchen cobinets.
Panels less than :Z/4" (6 mm) thick
When installing wood panels lessthen 1/W'(6 mm) thick, you need to create a filler panel, such as 1/8"
cardboard, that will fit between the face of the door and the wood panel, If Uouare installing the pre-cut
decorator panels,pre-cut filler panels are included in the kit,Thecombinedthickness of the decorator
or wood panel and the filler panel should be 1/4" (6 mm),
Panels 1/4" thick or less
1/4" max
3/4" (:Z9mm) or Raised Panel
A raisedpanel designscrewedor glued to a 1/4" (6 mm) thick backing, or a 3/4" (19mm) routed board can
be used,The raised portion of the panel must be fabricated to permit clearances of at least 2" (5,1cm) from
the handle sidefor fingertip clearance.
Panelsthicker than 1/4" (6mm), up to 3/4" (19mm) max, will require that the outer 5/16" (8mm) of panel
perimeter be no thicker than 1/4" (6mm).
Weight limitations for custom ponds:
FreshFood38 lbs. (17kg) max.
FreezerDoor28 lbs.(13kg) mex.
Panels thicker than 1/4" (6 mm}
5/16" (8 ram)
1/4" (6 mm} max
3/4"(19rnm)
1/4" {6 ram)
ck Backing
APnP:f rance fiii[ll
Door
19
