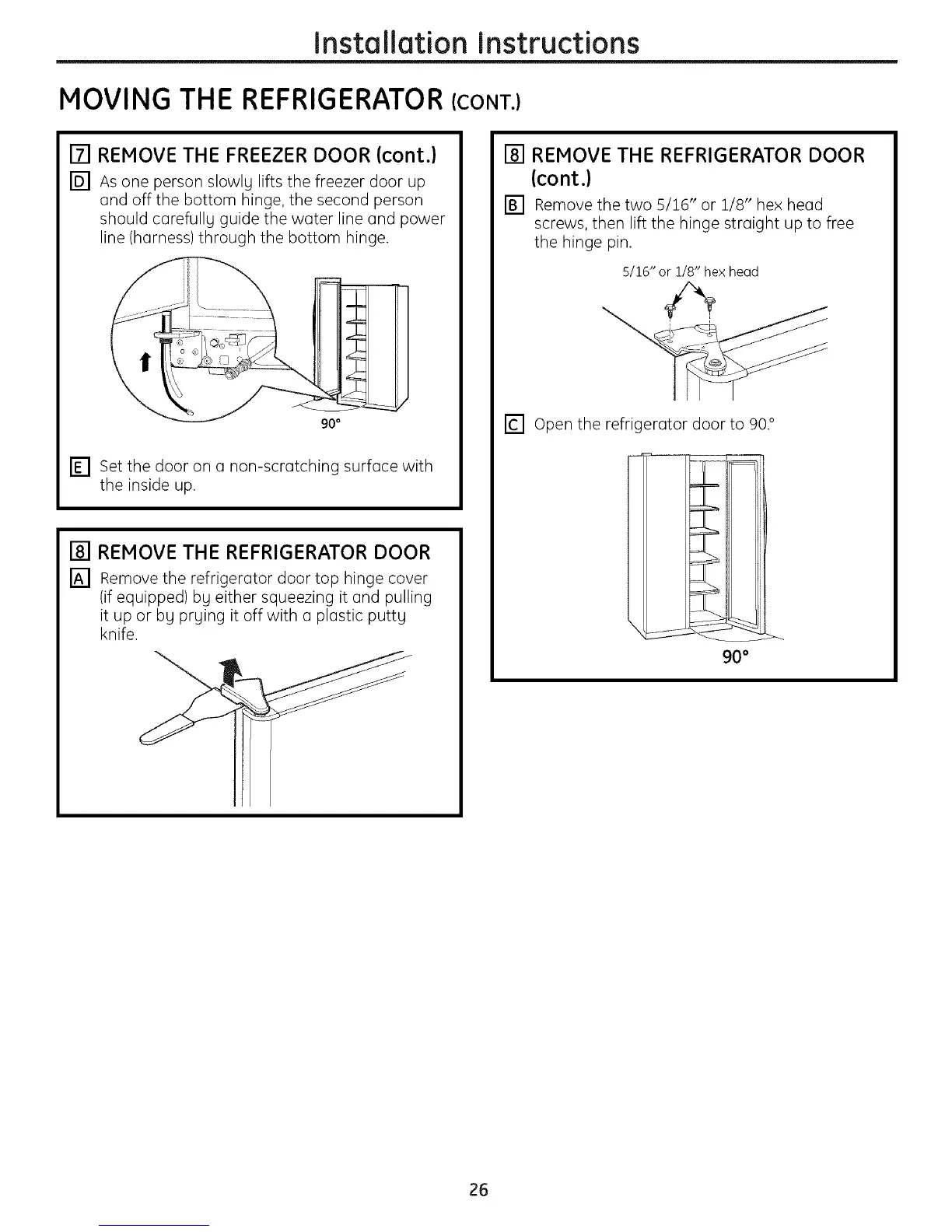

Installation Instructions
MOVING THE REFRIGERATOR(CONT.)
[] REMOVE THE FREEZER DOOR (cont.)
[] As one person slowlg lifts the freezer door up
and off the bottom hinge, the second person
should carefullg guide the water line and power
line (harness) through the bottom hinge.
[] Set the door on a non-scratching surface with
the inside up.
[] REMOVE THE REFRIGERATOR DOOR
[] Remove the refrigerator door top hinge cover
(if equipped) by either squeezing it and pulling
it up or by prying it off with a plastic putty
knife.
[] REMOVE THE REFRIGERATOR DOOR
(cont.)
[] Remove the two 5/16" or 1/8" hex head
screws, then lift the hinge straight up to free
the hinge pin.
5/16" or 1/8" hex head
<
[] Open the refrigerator door to 90. °
90°
26
