Plan the Location of the Hood and Ductwork
• Use a plumb bob to check the location.
The countertop/cooktop below the hood
must be centered with the hood.
• The hood should extend beyond the front and rear
edge of the cooking appliance.
• The duct in the ceiling must be centered over
the cooktop.
CONSTRUCT CEILING SUPPORT
Installation Preparation

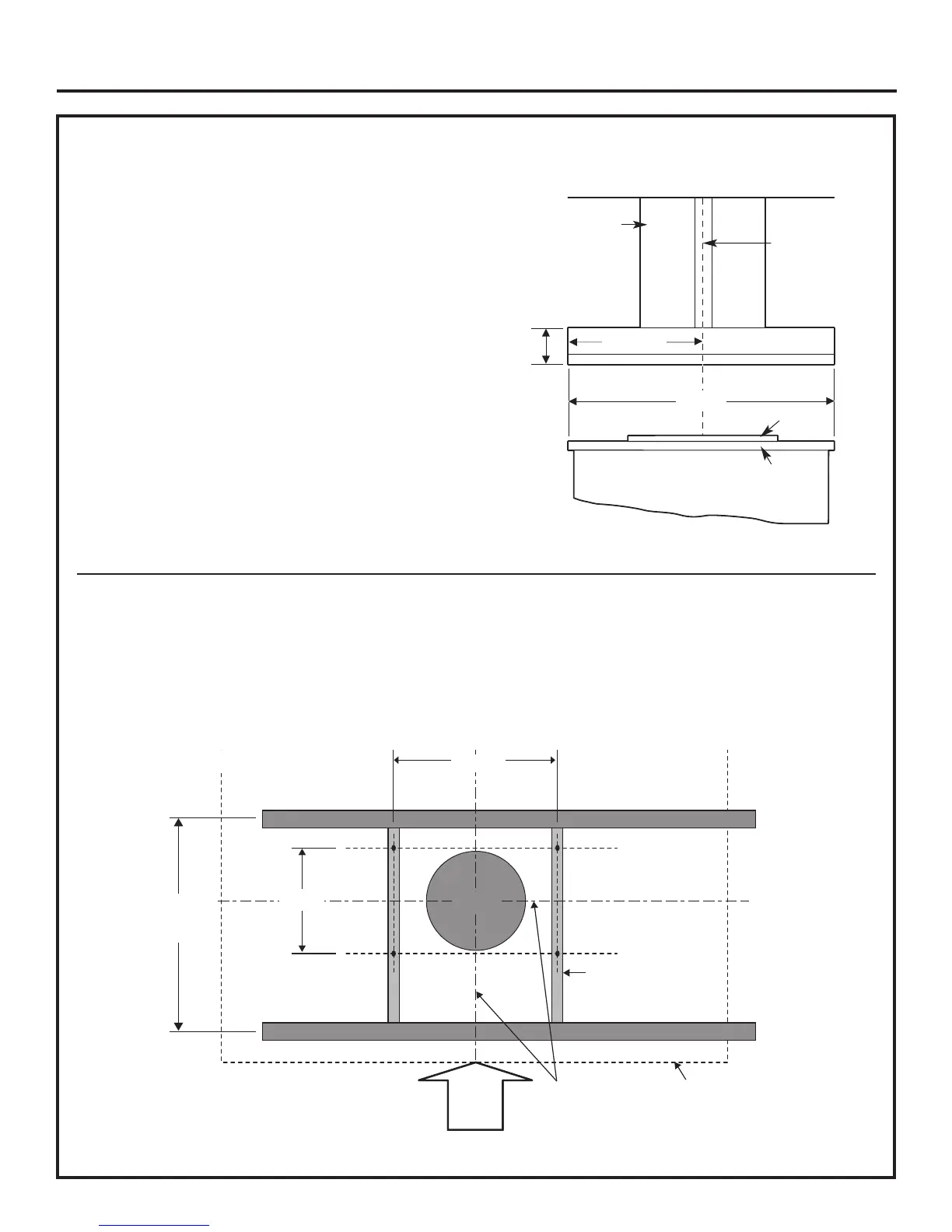

Top view – ceiling joists parallel to front of hood
16" Joist
spacing
8-1/4"
8" Duct
Front
of
hood
2x4 Cross
framing wood
supports
Cooktop
outline
Align duct
to center
of cooktop
Ceiling Support Structure
• At the hood location, install cross framing between
ceiling joists as shown. (2x4 wood supports
are required to support the weight of the hood.)
• Arrange cross framing in the ceiling to suit
the existing structure.
• Your ceiling joists will be like one of the following
examples.
EXAMPLE A
Ceiling
Hood ducting
centerline
Cooktop
Countertop
13-13/16"
Side view
Align with
center of
cooktop
Install cross-framing symmetrically over
duct/cooktop centerline
10-5/16"
27-5/8"
3-1/8"
Duct covers
