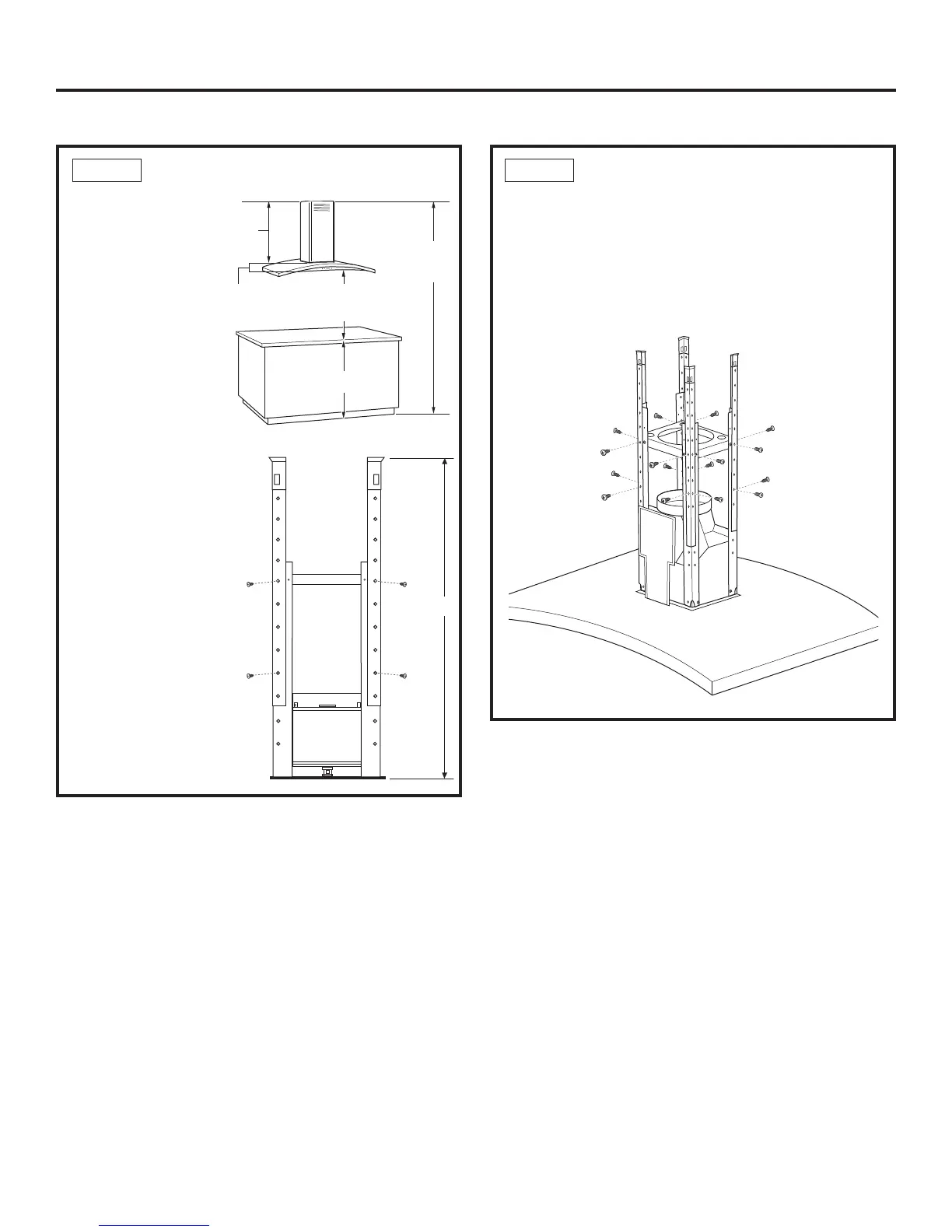

STEP 5 DETERMINE FRAME HEIGHT
•Measure exact
ceiling height.
•Find the exact
frame height
required
on the chart
on page 12.
•Use this formula
to determine
your frame
height:
A-(B+C+D) =
Frame height E where
A is the ceiling height,
B is the countertop
height, C is the height
determined by the
chart on page 12, D
is the height of the
hood measured from
the straight bottom
portion to the top
at the center.
24" Min.*
30" Max.*
36" Min.
Frame
height
2-3/8"
Ceiling
height
22
Installation Instructions
INSTALLATION—RECIRCULATING
E
A
B
D
C
STEP 6 INSTALL UPPER VERTICAL
SUPPORT
• Using the screws provided, attach the 4 upper
vertical supports to the lower vertical supports
at the position determined for frame height.
The upper vertical supports are mounted
to the outside of the lower supports.
*See Chart on page 12.
E
To Next Page
