29-6094 15
1

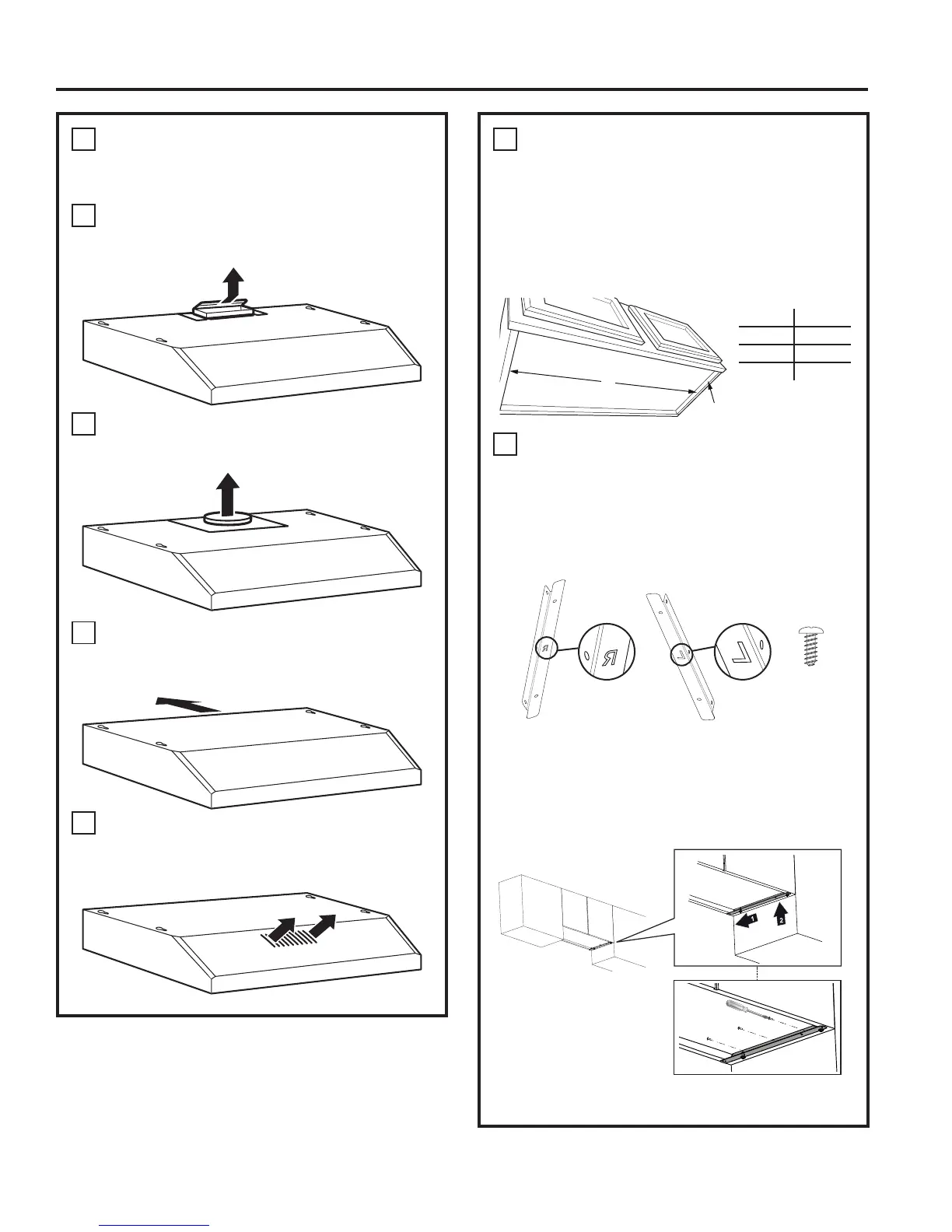

SELECT VENT OPTION THAT
YOUR INSTALLATION WILL
REQUIRE (A-D)
A
Outside top exhaust
(Vertical duct—3
1
»4” x 10” Rectangular)
B
Outside top exhaust
(Vertical duct—7” Round)
C
Outside rear exhaust
(Horizontal duct—3
1
»4” x 10”
Rectangular)
D
Recirculating
(Unit is configured from factory in
this mode)
2
PREPARING MOUNTING
For cabinets with dimensions below, the
mounting bracket may be used for any model.
Otherwise, the hood must mount directly
to bottom of cabinet. Wood shims may be
needed for cabinets with a recessed bottom.
Skip to step B.
A
To install the mounting bracket
Drive (E) screws in partway into mounting
bracket. The bracket labeled "R" will be
used on the right side of the cabinet and the
bracket labeled "L" will be used on the left
side of the cabinet.
Under the cabinet that you are placing the
range hood, attach the mounting bracket as
shown below with (F) screws. Make sure
orientation is correct. Brackets should be
located against the back wall and flush with
the bottom of the cabinet.
NOTE: Repeat on left side.
INSTALLATION PREPARATION
Installation Preparation
X
3
»4" Depth
Push
against
wall
Flush
with
cabinet
Cabinet X
24” 22
1
»2”
30” 28
1
»2”
36” 34
1
»2”
E
1" = 2.5 cm; 1' = 0.3 m
