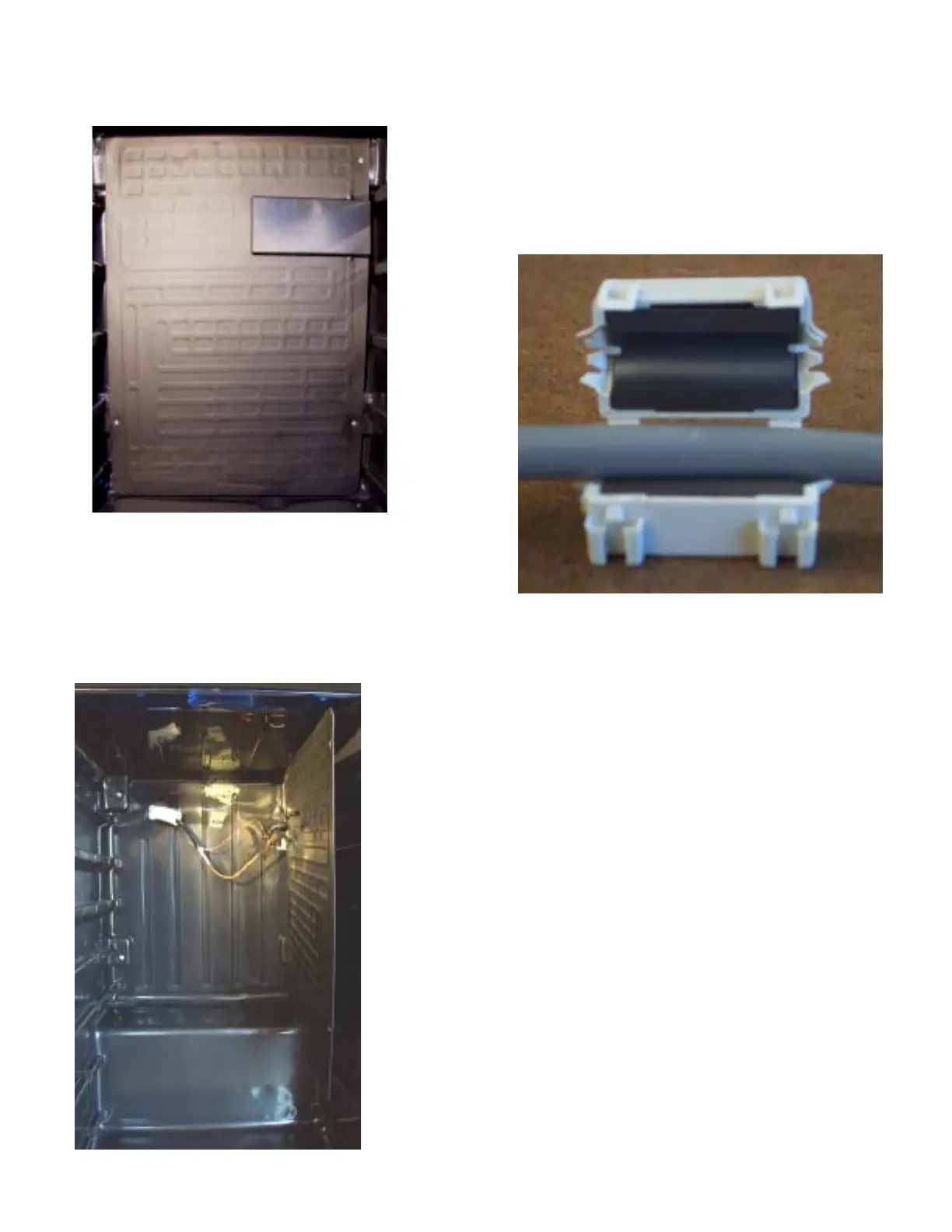

Evaporator
The evaporator plate is screwed to the back interior wall
with four Phillips screws.
To replace the evaporator, remove the screws and rotate
the left edge towards the front of the cabinet. The heat
exchanger is foamed into the cabinet and cannot be
replaced. To prevent damage to the plastic liner, the use
of LOKRING fittings are recommended. The suction line
requires a 1/4" to 1/4" brass connector (WR97X10031).
The capillary connector is a .079 to 5/32" brass connector
(WR97X10037).
THERMISTOR
EVAPORATOR
Electromagnetic Interference (EMI)
There is a very low possibility of interference if the
consumer places a television or radio directly on the
tabletop of the wine chiller. In these rare instances, two
ferrite filters can be installed. Part number WR49X10071
contains two filters. The ferrite filter housing wraps
around the power cord and locks with two snap tabs.
The filters are designed to prevent the power cord from
acting like an antenna. They should be installed between
the power cord strain relief and the main control board.
