Cabinetry
Built-In Speedcook Ovens

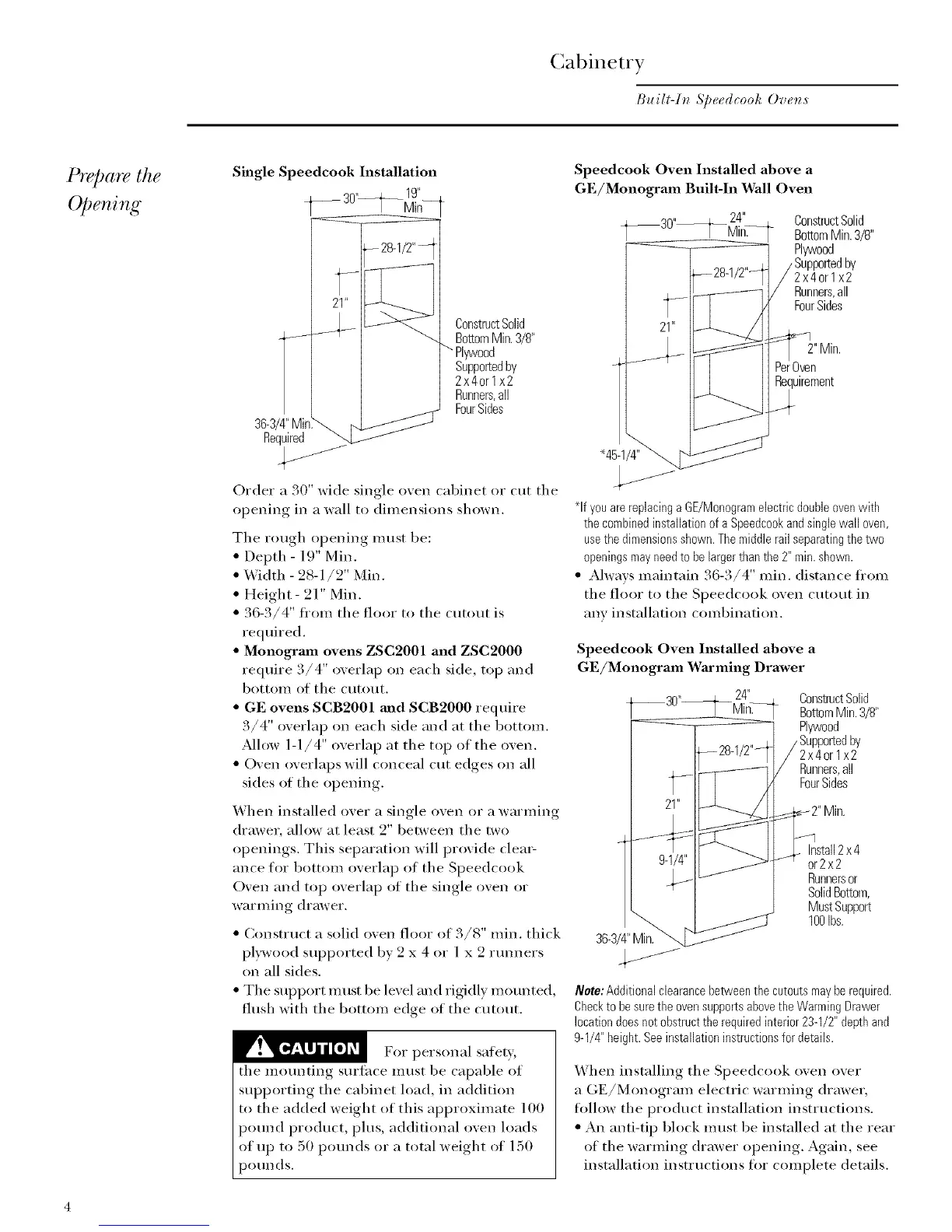

Single Speedcook Installation
ConstructSolid
BottomMin.3/8"
Supportedby
2x4orlx2
Runners,all
FourSides
36-3/4"Min
Required
+JJ
Order a 30" wide single oven cabinet oi" cut the
opening in a wall to dimensions shown.
The rough opening in/ist be:
• Depth - 19" Min.
• _]clth - 98-1/2" Min.
• Height- 21" Min.
• 36-3/4" from the floor to the CtltOtlt is
required.
• Monogrmn ovens ZSC2001 and ZSC2000
require 3/4" overlap on each side, top and
bottom of the cutout.
• GE ovens SCB2001 m_d SCB2000 require
3/4" overlap on each side and at the bottom.
.Mlow l-1/4" overlap at the top of the oven.
• Oven overlaps will conceal cut edges on all
sides of the opening.
When installed over a single oven or a warming
drmver, allow at least 2" between the two
openings. This separation will provide clem_
ance for bottom overlap of the Speedcook
Oven and top overlap of the single oven or
warming drawer.
• (]oI'lstrtlct a solid ovei'l floor of 3/8" rain. thick
pl}_vood supported by 2 x 4 or 1 x 2 I'/lI/Ilei's
on all sides.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
For personal safety,
the mounting surlhce must be capable of
supporting the cabinet load, in addition
to the added weight of this approximate 100
pound product, plus, additional oven loads
of up to 50 pounds or a total weight of 150
pounds.
Speedcook Oven Installed above a
GE/Monogram Built-In Wall Oven
ConstructSolid
BottomMin.3/8"
Plywood
by
2x4orlx2
Runners,all
FourSides
2" Min.
PerOven
Requirement
*If youarereplacinga GE/Monogramelectricdoubleovenwith
thecombinedinstallationofa Speedcookandsinglewall oven,
usethedimensionsshown.Themiddlerailseparatingthetwo
openingsmayneedto belargerthanthe2" min.shown.
• Ahvays maintain 36-3/4" rain. distance ti'om
the floor to the Speedcook oven cutout in
any installation c()mbination.
Speedcook Oven Installed above a
GE/Monogram Waxming Drawer
30"_ 24" ConstructSolid
/Mir_ BottomMin.3/8"
Plywood
2x4or 1x2
Runners,all
FourSides
Install2x4
or2x2
Runnersor
SolidBottorn,
MustSupport
100Ibs.
36-3/4"Min.
Note:Additional clearance betweenthe cutouts maybe required.
Checkto be sure the ovensupports abovethe WarmingDrawer
locationdoesnot obstructthe requiredinterior23-1/2"depthand
9-1/4"height.Seeinstallationinstructionsfordetails.
When installing the Speedcook oven ovei"
a GE/Monogram electric warming ch'mvei,
ti)llow the product installation instructions.
• An anti-tip block must be installed at the rear
of the warming ch'awer opening. Again, see
installation instructions fi)r complete details.
