GE SX Series User Manual

DIAGNOSTIC STATUS CODES
TRANSISTOR PUMP CONTROL Page 44
Revised May 2003
PUMP
STATUS CODE
DESCRIPTION OF STATUS CAUSE OF STATUS INDICATION
-103
“SPEED 3” switch closed with the key
turned off.
This status code will be displayed when the “SPEED
3” switch closes while the key switch is turned off.
MEMORY RECALL
NO

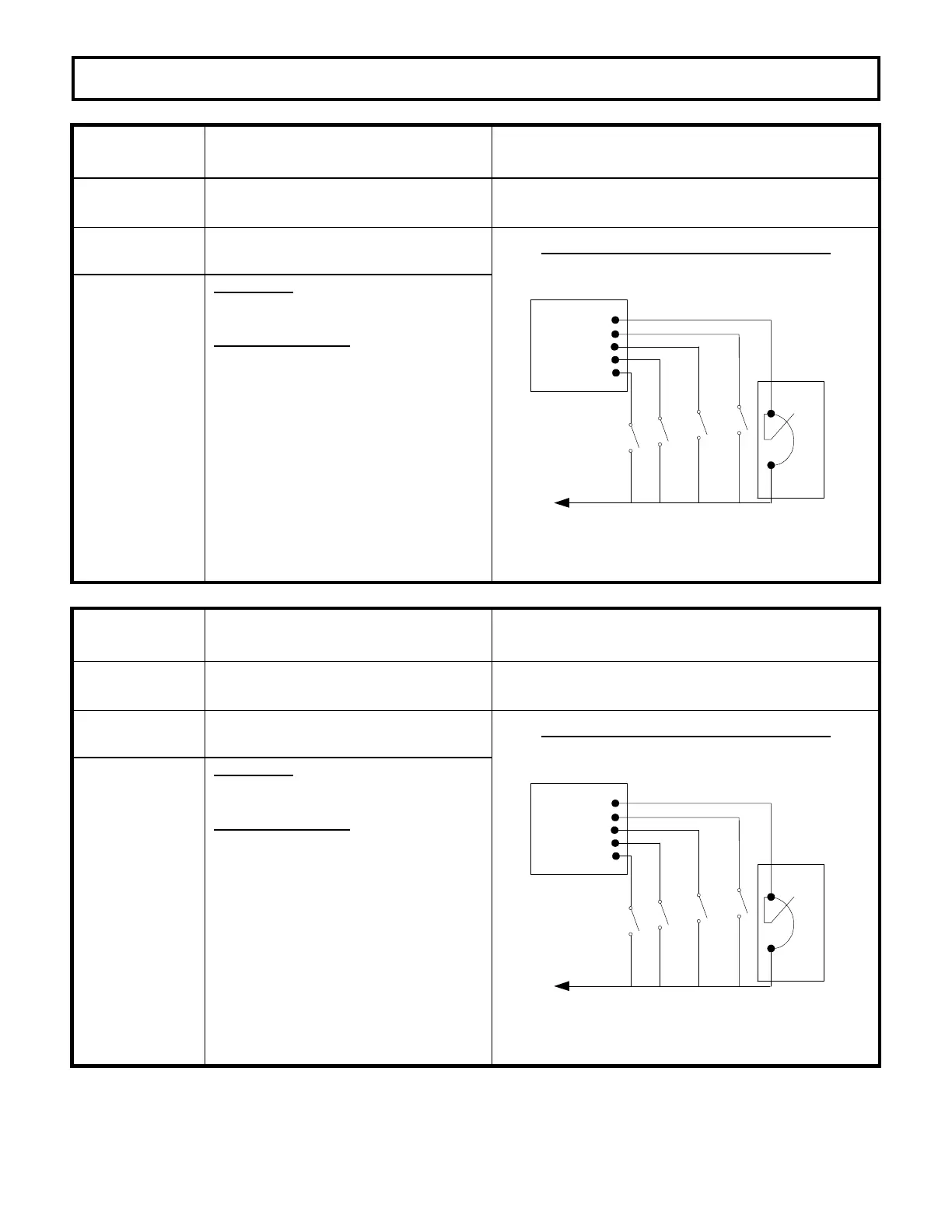

CORRECTIVE ACTIONS TROUBLE-SHOOTING DIAGRAM
Circuits valid
for
Pump
Controller
SYMPTOM
Control will not operate.
POSSIBLE CAUSE
“SPEED 3” switch is closed or shorted
to battery negative.
· Verify connections at P20 and
Battery negative. Replace switch,
if necessary.
12
19
20
21
51
*
*
SPEED 2 SPEED 1
52
53
*
SPEED 3
*
SPEED 4
7
ACCELERATOR
SWITCH
*
BATT
NEG
SX-2
CONTROL
PLUG PL2
PUMP
STATUS CODE
DESCRIPTION OF STATUS CAUSE OF STATUS INDICATION
-104
“SPEED 4” switch closed with the key
turned off.
This status code will be displayed when the “SPEED
4” switch closes while the key switch is turned off.
MEMORY RECALL
NO
CORRECTIVE ACTIONS TROUBLE-SHOOTING DIAGRAM
Circuits valid
for
Pump
Controller
SYMPTOM
Control will not operate.
POSSIBLE CAUSE
“SPEED 4” switch is closed or shorted
to battery negative.
· Verify connections at P21 and
Battery negative. Replace switch,
if necessary
.
12
19
20
21
51
*
*
SPEED 2 SPEED 1
52
53
*
SPEED 3
*
SPEED 4
7
ACCELERATOR
SWITCH
*
BATT
NEG
SX-2
CONTROL
PLUG PL2
