INSTALLATION INSTRUCTIONS
Outdoor Unit Wiring

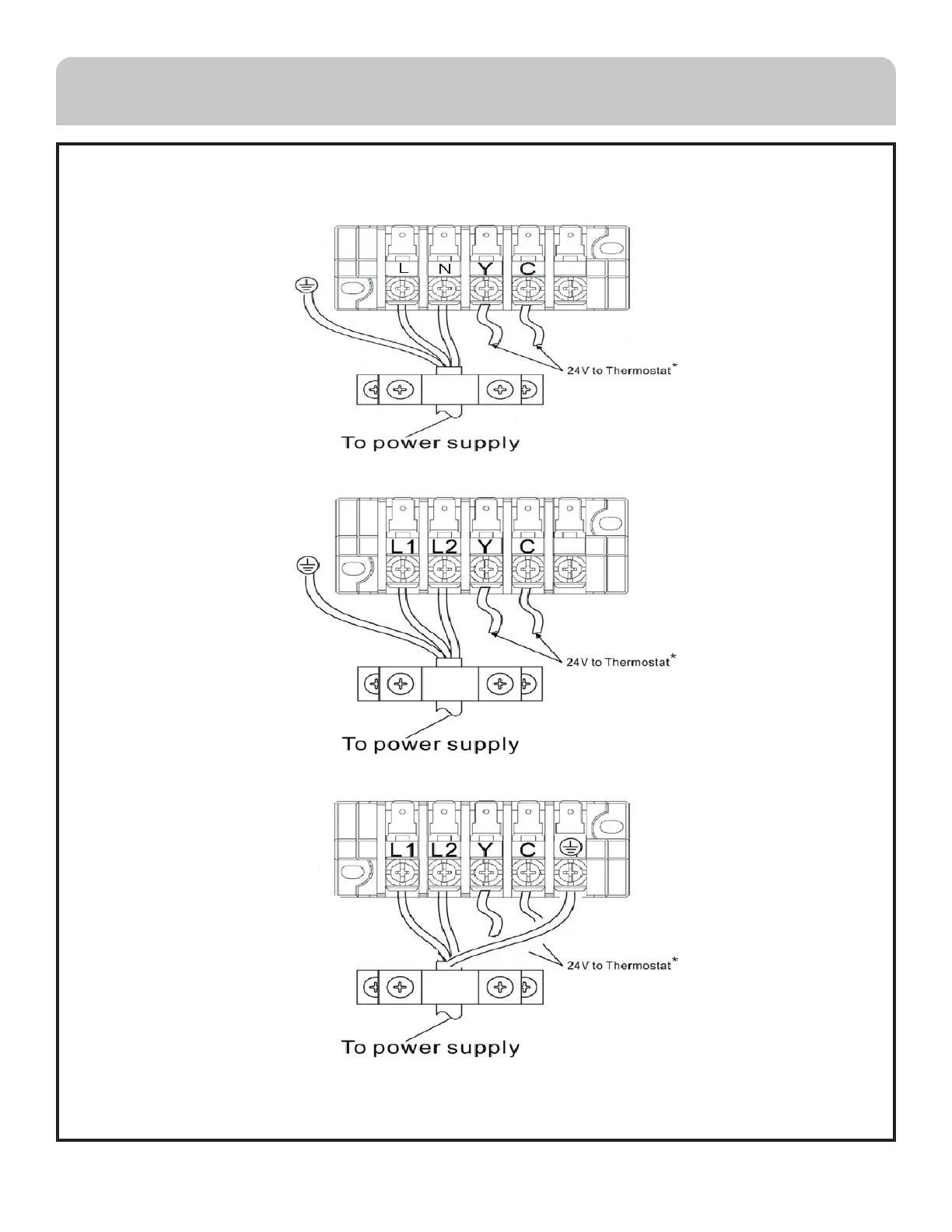

Terminal block of outdoor unit: 12K
Terminal block of outdoor unit: 18K-30K
Terminal block of outdoor unit: 36K and 48K
*NOTE: For additional wiring instructions, see the installation manual for the 24V thermostat used in conjunction with this
unit.
NOTE: For reference only. Refer to the unit wiring diagram.
