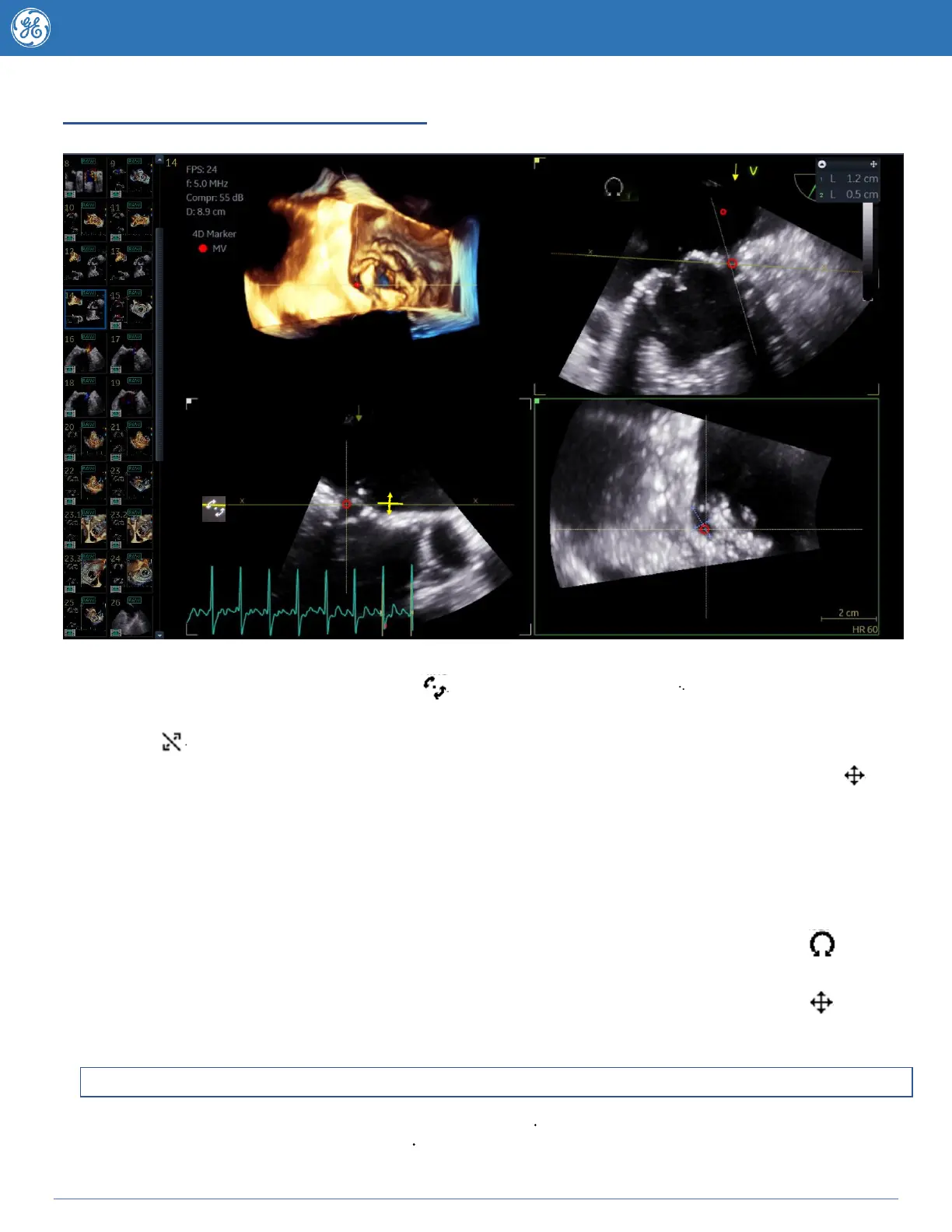

To Make Adjustments in Flexi-Slice
1) Place the cursor at one of the extremities of a cut-plane intersection line in one of the cut-
planes. The cursor will change to a . Drag to rotate the cut-plane.
2) Place the cursor in the middle section of a cut-plane intersection line. The cursor is changed to
a . Drag to translate the cut-plane.
3) Place the cursor at the intersection between two cut-plane lines the cursor is changed to .
Both cut-planes are translated simultaneously.
4) Click on a point in the volume rendering to move the intersection of the two other cut-planes to
that location.
• If Depth Mode is turned on: the reference plane is also moved inside the volume
rendering to the corresponding selected depth.
• In Depth Mode is turned off: the reference plane is kept at the current depth.
5) Place the cursor at the outer area of one of the cut-planes. The cursor is changed to . Drag
to rotate the cut-plane image. The cut-plane lines remain fixed.
6) Place the cursor in the inner area of one of the cut-planes. The cursor is changed to . Drag
to pan the cut-plane image. The cut-plane lines remain fixed.
