12

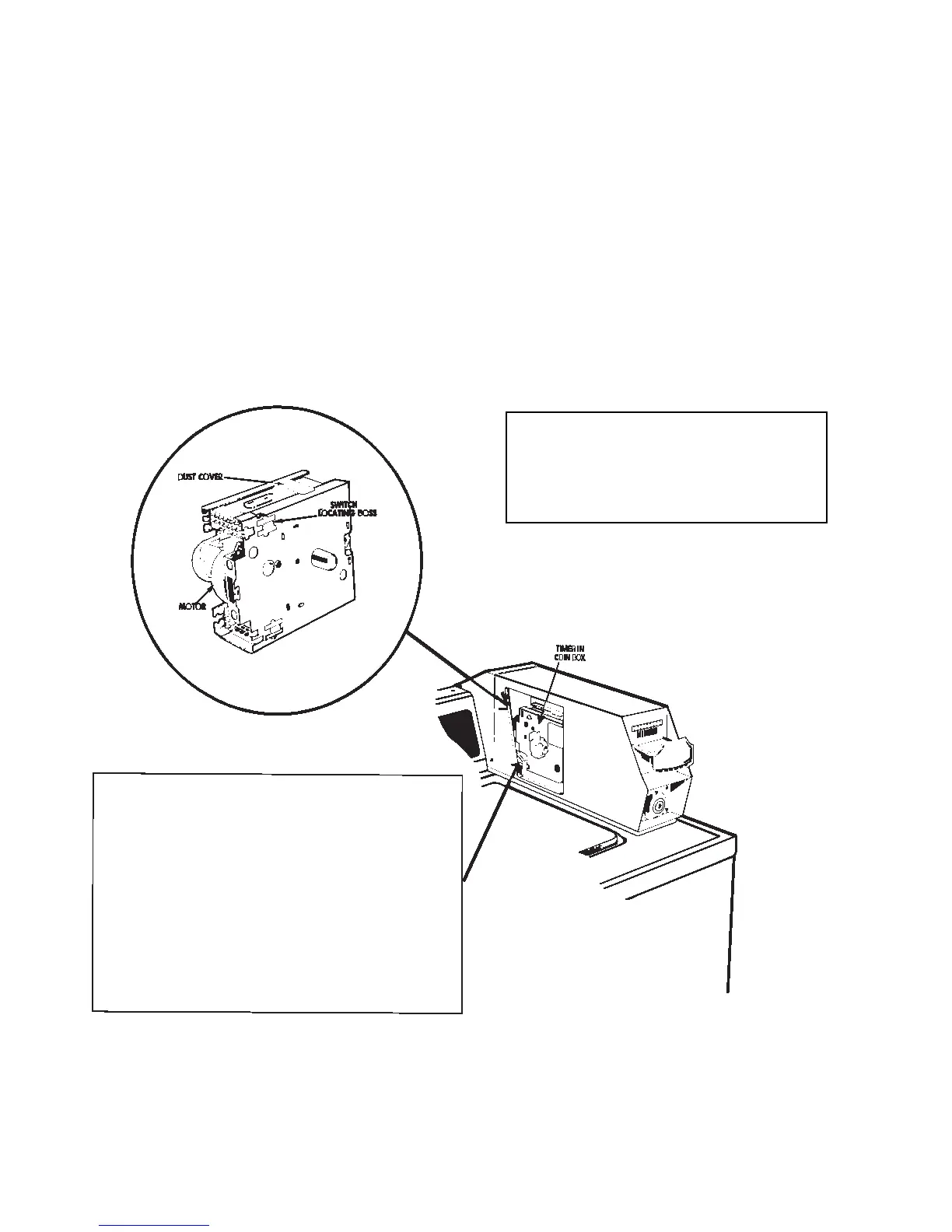

The timer is an Eaton double switch bank, with polarized harness connectors. This insures that the correct harness
connector will only fit the mating switch bank.
Timer motor and timer are NOT interchangeable with the “S” models and earlier timers. It is stocked as one compo-
nent, and repair parts are not available. The mounting bracket is stocked as a separate part and can be reused to
install the replacement timer. Timer cam charts and schematics are shown in this manual.
Timer
NOTE: Lid switch can be accessed by
removing door and latch assembly on
meter case as shown in illustration. Use a
plastic pen to prevent shock hazard. Hold
down lid switch activator and this will
allow you to run the machine with lid up
for service.
Warning! Take necessary personal safety
precautions to avoid personal injury due
to spin basket running with lid up.
°Accessory kit with debit
card capability is available and
designed exclusively for GE
