Transmission (con’t.)
NOTE: Transmission cutaway view below is shown
to provide you with a glimpse of the internal work-
ings of this rotating transmission. It features all
metal gears, metal counterweight, and 5.5 oz. of oil.
The transmission and quiet brake are one compo-
nent, and is replaced and not rebuilt.
New Transmission provides durability with its all-metal
gears. There are no plastic gears to wear or break. All-
metal gears provide more durability than plastic gears
of the same size. These metal gears allow for a smaller
and more balanced transmission. Agitation is accom-
plished by turning the transmission in a clockwise mo-
tion. Spin speeds occur when the transmission is spun
or rotated in a counterclockwise motion. A triple lip seal
with garter spring provides tub seal system. Care must
be taken to make sure garter spring is in place when
replacing transmission. The tub bushing is an oil im-
pregnated type, and is not replaceable. It is molded in
place at the factory.

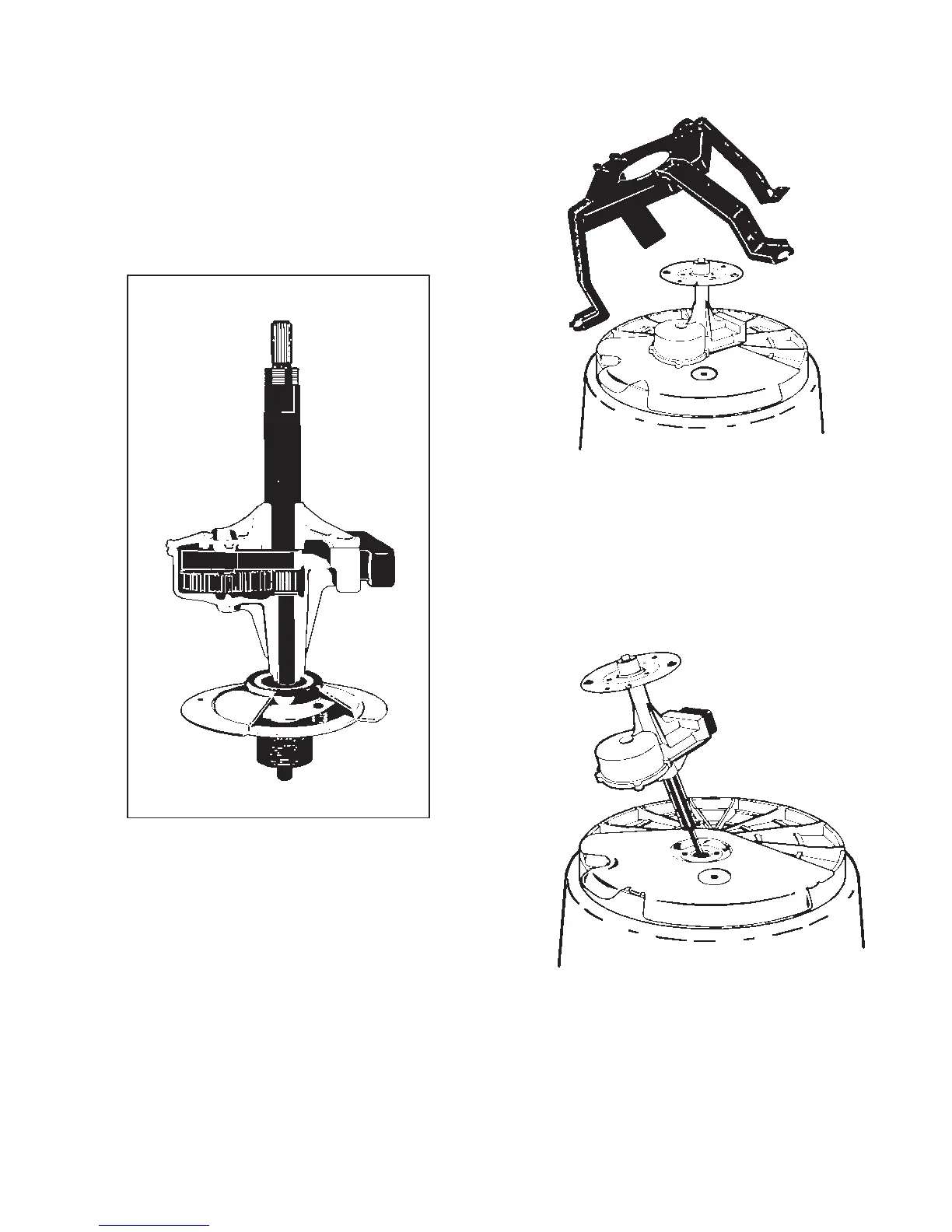

CUTAWAY VIEW OF ROTATING
TRANSMISSION
REMOVE PLATFORM
REMOVE TRANSMISSION
To Next Page
