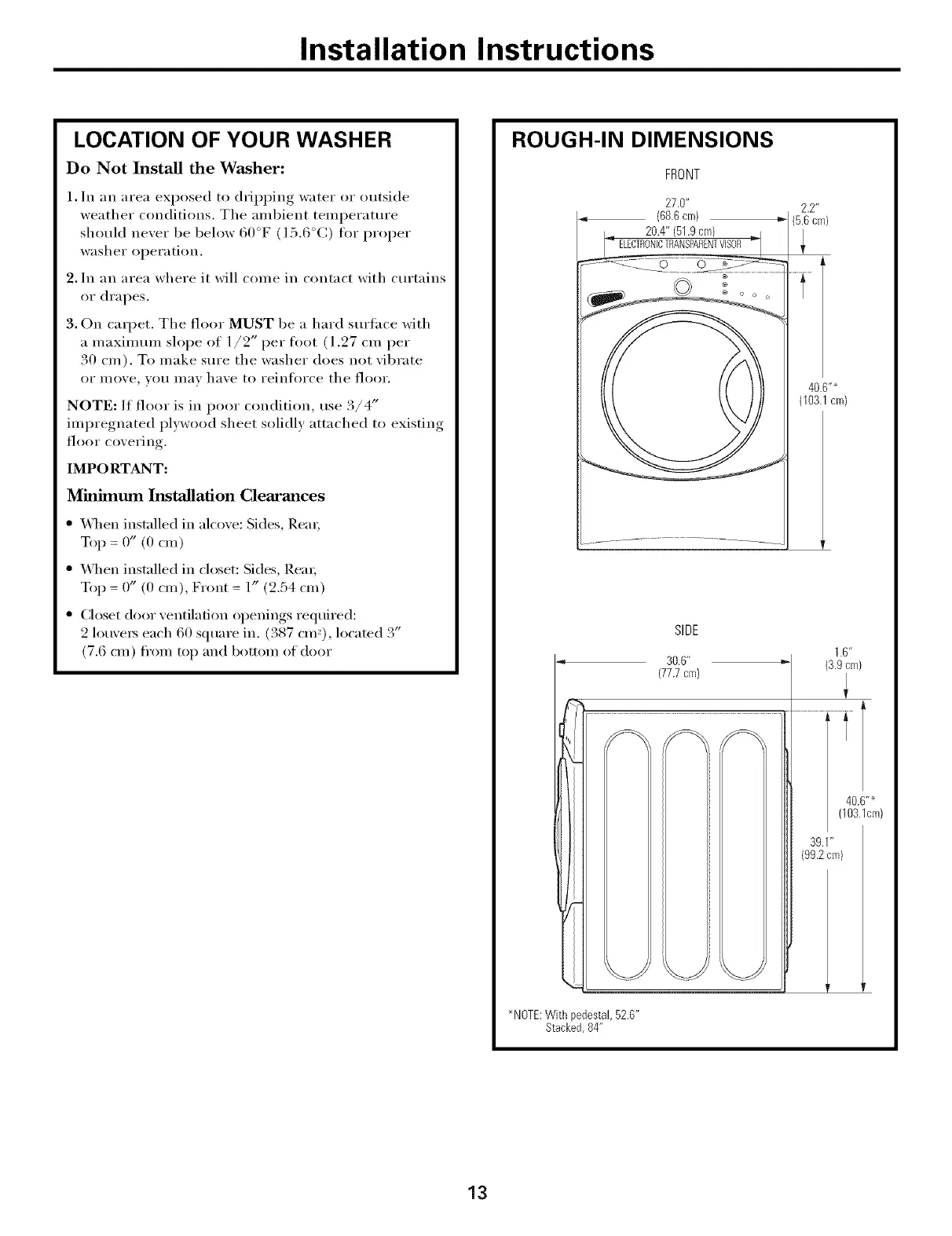

Installation Instructions
LOCATION OF YOUR WASHER
Do Not Install the Washer:
1. In an area exposed to dripping water or outside
weather conditions, The ambient temperature
should never be below 60°F (] 5.6°(;) fl)r proper
washer operation,
2. In an area where it will come in contact with cm'tains
or drapes.
3, On caq)et, The floor MUST be a hard sm'tace with
a maximum slope of 1/2" per fi)ot (1.27 cm per
30 cm), To make sure the washer does not vibrate
OI" IllOVe, )'Oil IllaV have to reinforce the floor.
NOTE: If floor is in poor condition, use 3/4"
impregnated plywood sheet solidly attached to existing
floor covering.
IMPORTANT:
Minimum Installation Clearances
" _]_en installed in alcove: Sides, Rein;
Top : 0" (0 cm)
* _]_en installed in closet: Sides, Rein;
Top : 0" (0 cm), Front : 1" (2.54 cm)
" Closet door ventilation openings required:
2 louve_ each 60 square in. (387 cmQ, located 3"
(7.6 cm) ti'om top and bottom of door
ROUGH-IN DIMENSIONS
FRONT
27.0"
(68.6cm)
20.4" (51.9cm)
ELECTRONICTRANSPARENTVISOR
0 ©
40.6"_
{103.1cm)
SIDE
30.6"
177.7cm)
1.6"
"" (3.9cm)
_NOTE:With pedestal,52.6"
Stacked,84"
40.6"_
(lO&lcm)
39.1"
(09.2cm)
13
