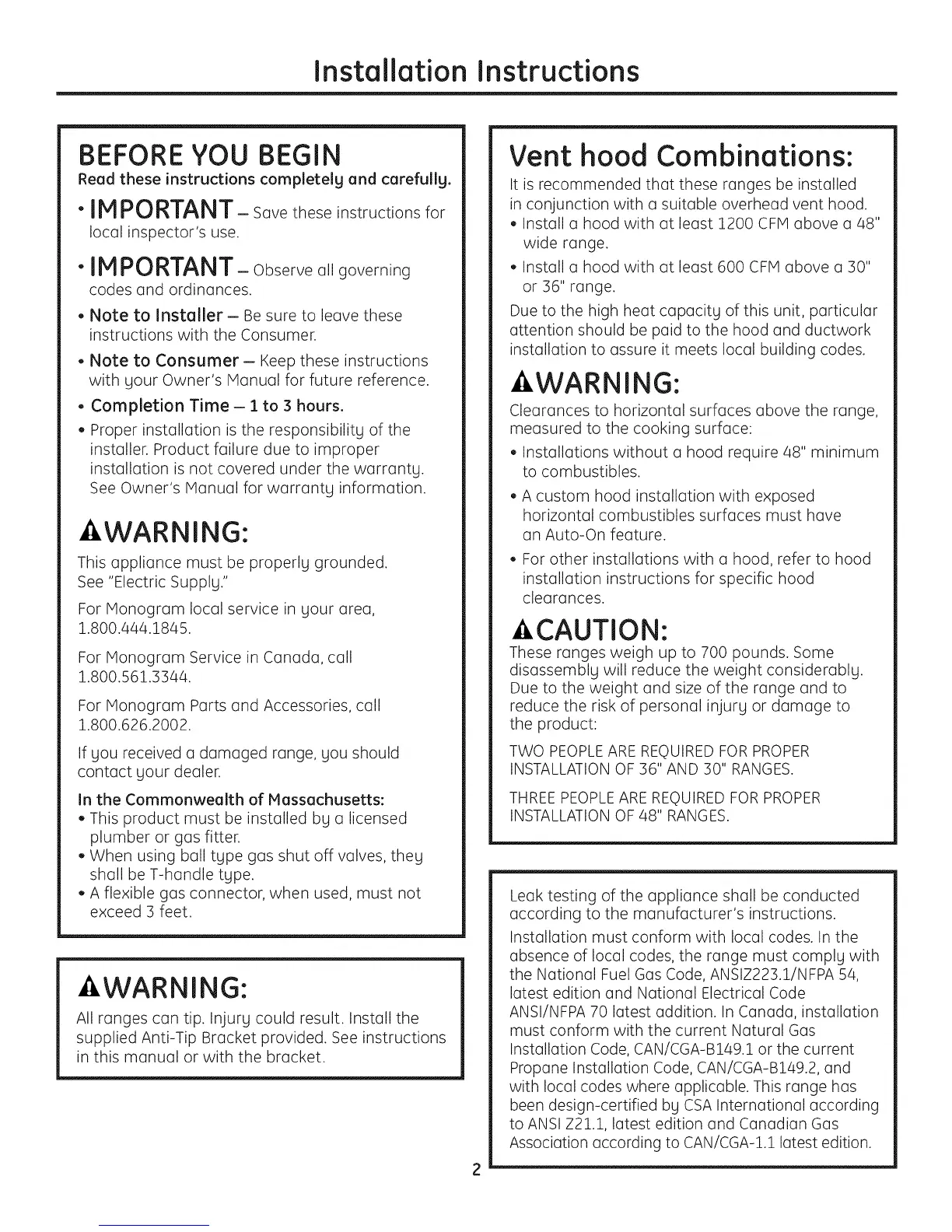

Installation Instructions
BEFORE YOU BEGIN
Read these instructions completelg and corefullg.
•IMPORTANT- savetheseinstructionsfor
local inspector's use.
• IMPORTANT-Observeall governing
codes and ordinances.
• Note to Installer- Be sure to leave these
instructions with the Consumer.
• Note to Consumer - Keep these instructions
with gour Owner's Manual for future reference.
• Completion Time- 1to 3 hours.
• Proper installation is the responsibilitg of the
installer. Product failure due to improper
installation is not covered under the warrantg.
See Owner's Manual for warrantg information.
AWARNING:
This appliance must be properlg grounded.
See "Electric Supplg."
For Monogram local service in gour area,
1.800.444.1845.
For Monogram Service in Canada, call
1.800.561.3344.
For Monogram Parts and Accessories, call
1.800.626.2002.
If gou received a damaged range, gou should
contact gour dealer.
In the Commonwealth of Massachusetts:
• This product must be installed bg a licensed
plumber or gas fitter.
• When using ball tgpe gas shut off valves, theg
shall be T-handle tgpe.
• A flexible gas connector, when used, must not
exceed 3 feet.
- WARNING:
All ranges can tip. Injurg could result. Install the
supplied Anti-Tip Bracket provided. See instructions
in this manual or with the bracket.
Vent hood Combinations:
It is recommended that these ranges be installed
in conjunction with a suitable overhead vent hood.
• Install a hood with at least 1200 CFM above a 48"
wide range.
• Install a hood with at least 600 CFM above a 30"
or 36" range.
Due to the high heat capacitg of this unit, particular
attention should be paid to the hood and ductwork
installation to assure it meets local building codes.
- WARNING:
Clearances to horizontal surfaces above the range,
measured to the cooking surface:
• Installations without a hood require 48" minimum
to combustibles.
A custom hood installation with exposed
horizontal combustibles surfaces must have
an Auto-On feature.
For other installations with a hood, refer to hood
installation instructions for specific hood
clearances.
CAUTION:
These ranges weigh up to 700 pounds. Some
disassemblg will reduce the weight considerablg.
Due to the weight and size of the range and to
reduce the risk of personal injurg or damage to
the product:
TWO PEOPLEARE REQUIRED FOR PROPER
INSTALLATION OF 36" AND 30" RANGES.
THREE PEOPLEARE REQUIRED FOR PROPER
INSTALLATION OF 48" RANGES.
Leak testing of the appliance shall be conducted
according to the manufacturer's instructions.
Installation must conform with local codes. In the
absence of local codes, the range must complg with
the National Fuel Gas Code, ANSIZ223.1/NFPA 54,
latest edition and National Electrical Code
ANSI/NFPA 70 latest addition. In Canada, installation
must conform with the current Natural Gas
Installation Code, CAN/CGA-B149.1 or the current
Propane Installation Code, CAN/CGA-B149.2, and
with local codes where applicable. This range has
been design-certified bg CSA International according
to ANSI Z21.1, latest edition and Canadian Gas
Association according to CAN/CGA-I.1 latest edition.
