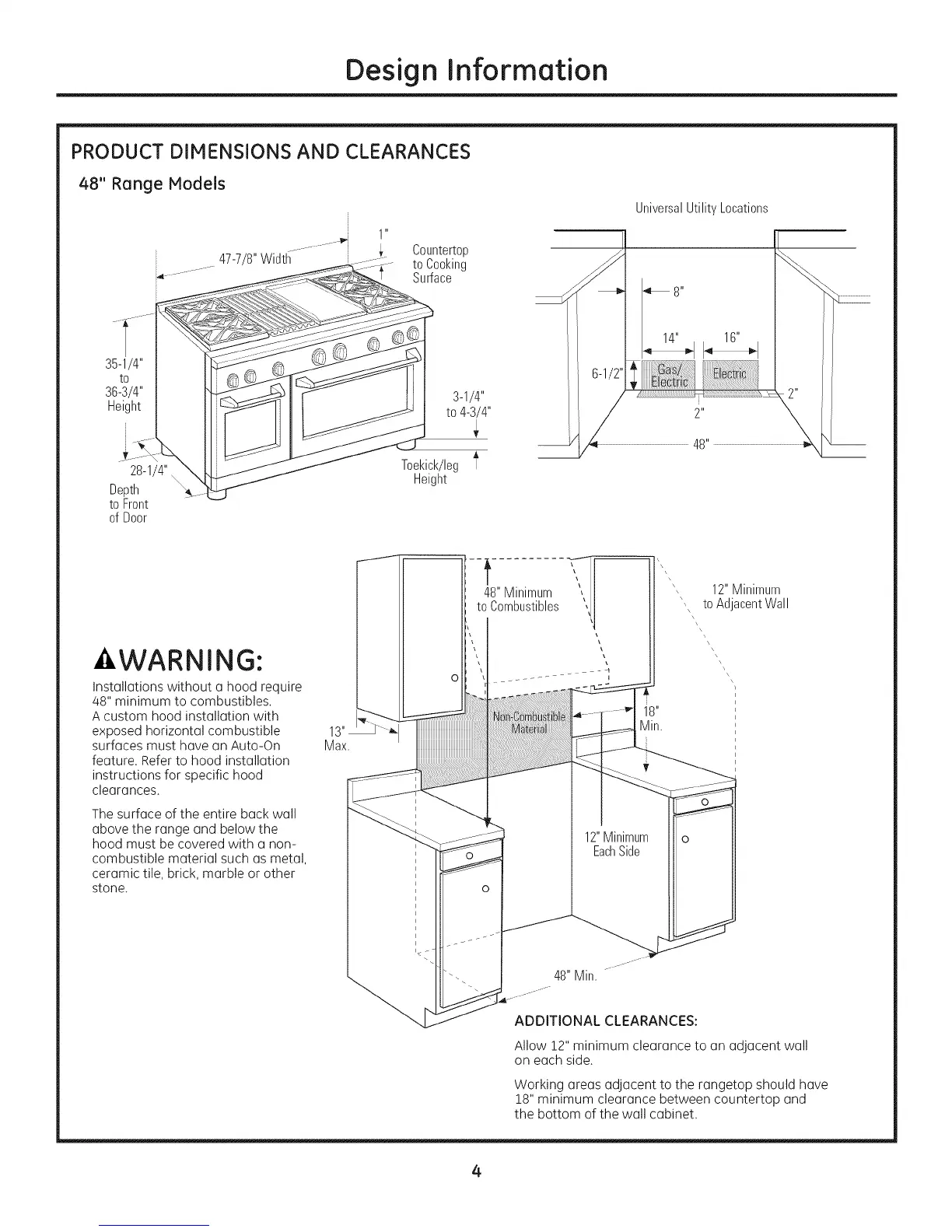

Design Information
PRODUCT DIMENSIONS AND CLEARANCES
48" Range Models
I "
Countertop
_ .......47-7/8"Width to Cooking
.............. Surface
35-1/4"
to
36-3/4"
Height
28-1/4"
Depth
to Front
of Door
3-1/4"
to 4-3/4"
Toel<icl</leg_'
Height
UniversalUtility Locations
1% I1 i
- WARNING:
Installations without a hood require
a8" minimum to combustibles.
A custom hood installation with
exposed horizontal combustible
surfaces must have an Auto-On
feature. Refer to hood installation
instructions for specific hood
clearances.
The surface of the entire back wall
above the range and below the
hood must be covered with a non-
combustible material such as metal,
ceramic tile, brick, marble or other
stone.
Max.
12"Minimum
', toAd acentWall
ADDITIONAL CLEARANCES:
Allow 12" minimum clearance to an adjacent wall
on each side.
Working areas adjacent to the rangetop should have
18" minimum clearance between countertop and
the bottom of the wall cabinet.
4
