– 23 –

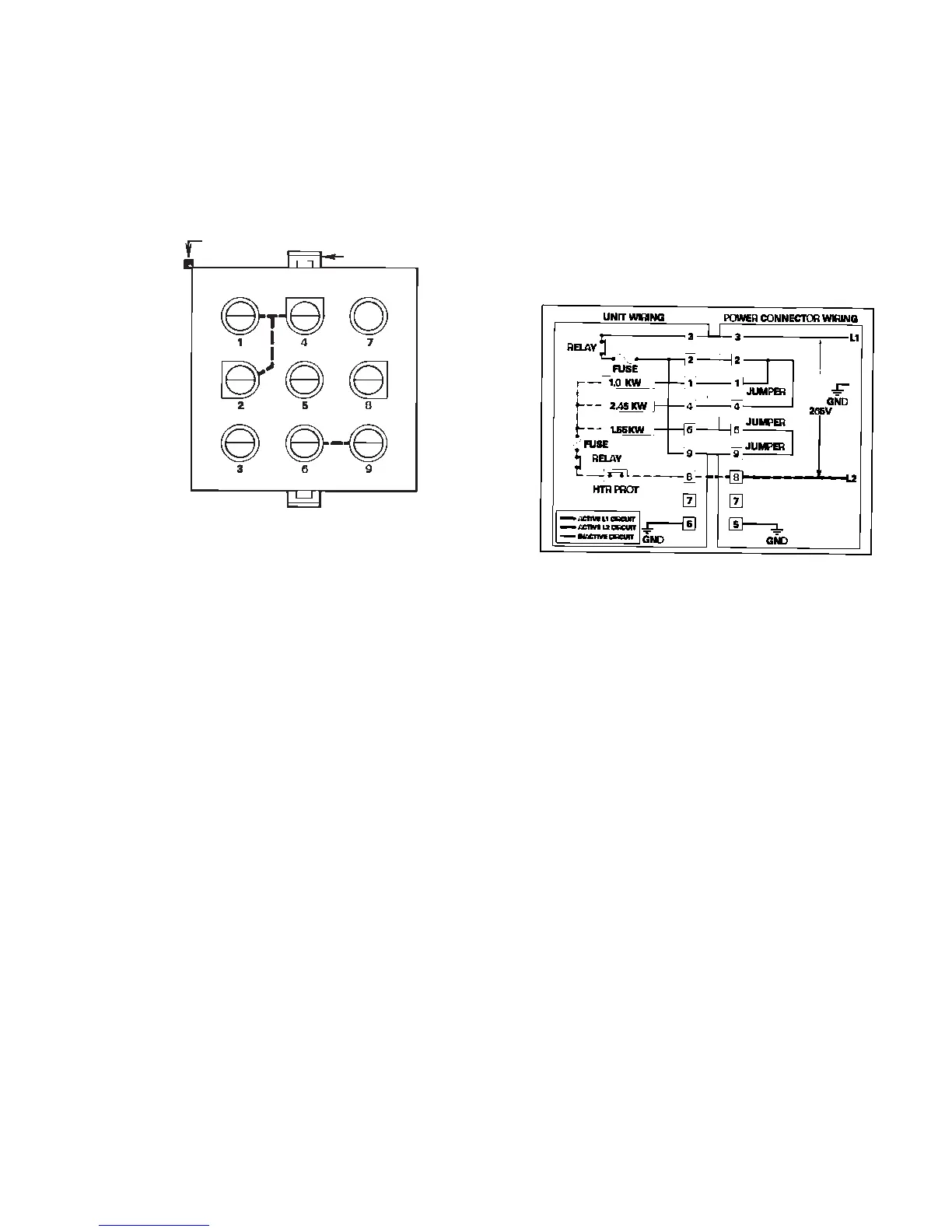

Power Connector Plug 30 Amp - 265 VAC,
5000 Watt Heater (RAK5302)
The L1 side of the line is connected to terminal #3
and L2 is connected to terminal #8. The ground wire
is connected to terminal #5. There are jumper wires
between terminals #1 and #2, #2 and #4, and #6
and #9.
#1 TERM
KEY
LATCH
BOTTOM
TERMINAL END VIEW
RAK5302
L2
L1
G
Heater Circuit Schematic 30 Amp - 265 VAC,
5.0 KW Heater (RAK5302)
When the relay contacts close, the circuits to the 1
KW, 2.45 KW, and 1.55 KW heaters are completed
from L1 through the jumper wires between
terminals #1 and #2, #2 and #4, and #6 and #9, and
back to L2 through terminal #8. This makes a total
of 5.0 KW of heat available to heat the room.
H
E
A
TE
R
C
I
RCU
IT
-
265
V
5
.
0
K
W
H
E
A
TE
R
RAK5302
