3| Areas of application F
Design for other
areas on request
Permissible rotation speeds:
F2, F3: 960 - 1800 rpm
F4, F5: 500 - 1800 rpm
F14, F16: 700 - 1800 rpm

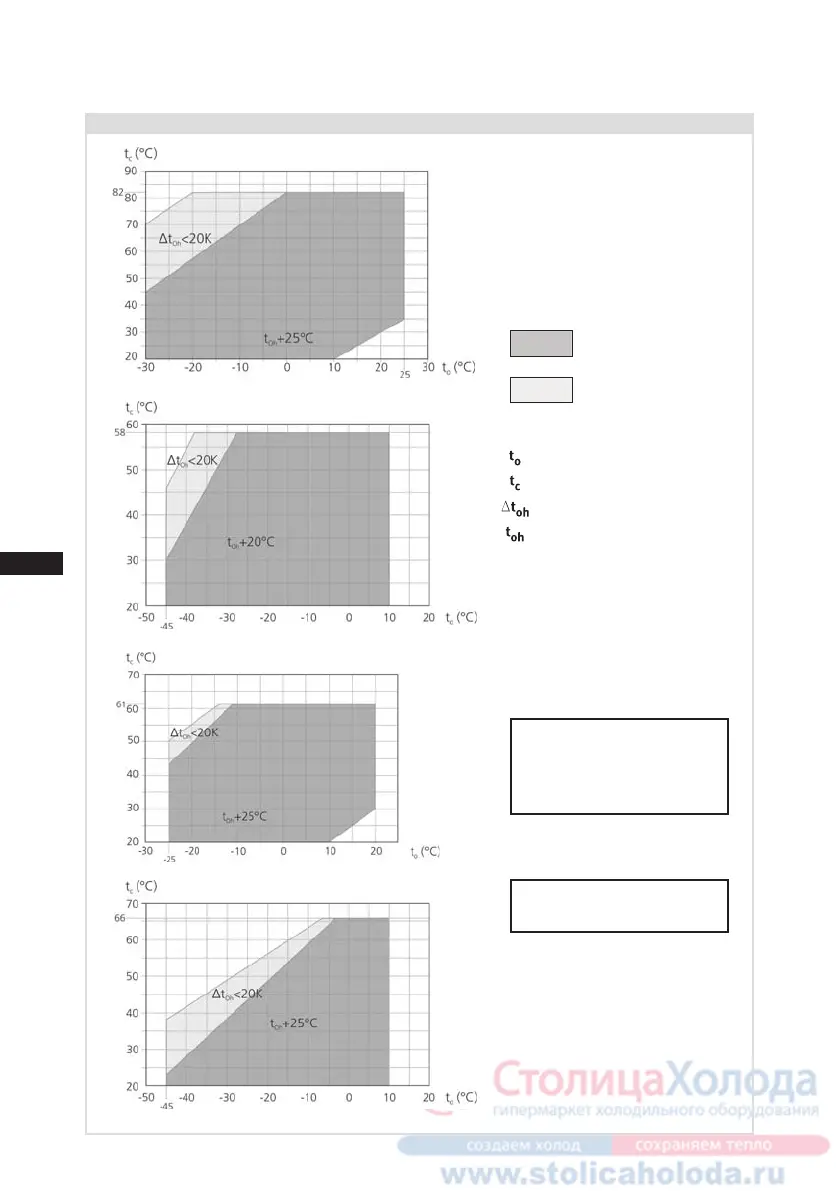

3.3 Operating limits
R134a
Fig. 6
R404A/R507
Fig. 7
R407C
Fig. 8
R22
Fig. 9
Unlimited
application range
Reduced suction gas
temperature
Evaporating temperature (°C)
Condensing temperature (°C)
Suction gas superheat (K)
Suction gas temperature (°C)
Maximum admissible
operating pressure (g)
High pressure side (LP/HP)
1)
:
19/28 bar
1)
LP = Low pressure
HP = High pressure
