Gecko CS Series - Page 7

Electrical Installation

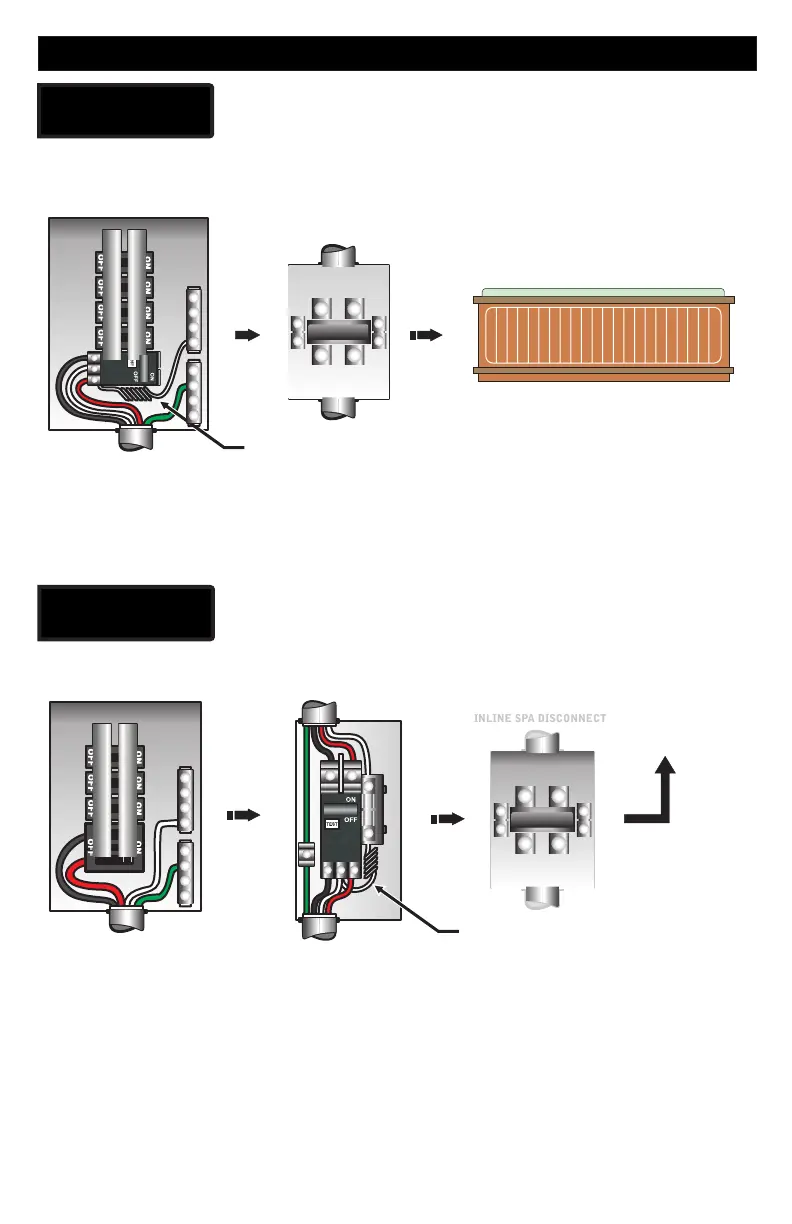

GFCI Installed in Main Service Panel
MAIN BREAKER PANEL
Option 1 shows the power from GFCI breaker installed into main service panel to a
service disconnect within line-of-site of the spa. If the manufacturer of your homes main
breaker panel makes a GFCI breaker, you may be able to add it to an open slot in the
panel.
OPTION 2
Subpanel GFCI Installed
20-60AMP HARDWIRED
GFCI DISCONNECT
MAIN BREAKER PANEL
OPTION 1
20-60AMP HARDWIRED
LINE 1
N
LINE 2
REFER TO GFCI WIRING DETAIL ON PAGE 8
PORTABLE SPA
INLINE SPA DISCONNECT
LINE 1
N
LINE 2
INLINE SPA DISCONNECT
TO PORTABLE SPA
ELECTRICAL CONNECTIONS
REFER TO GFCI WIRING DETAIL ON PAGE 8
Option 2 shows the power from main service panel to a GFCI subpanel within line-of-site
of the spa. (Note: Most local codes will allow a GFCI subpanel to be a disconnect. If this is
not the case in your installation, a disconnect must be provided.)
6
