• RS232 / TTL interface for GEFRAN instrument configuration
WSK-0-0-0
Cable interface + CD Winstrum
• ORDER CODE
ACCESSORIES
N.B. RS232 interface for PC configuration is supplied with the
WINSTRUM programming software. Make connection with
instrument powered but with inputs and outputs disconnect-
ed.

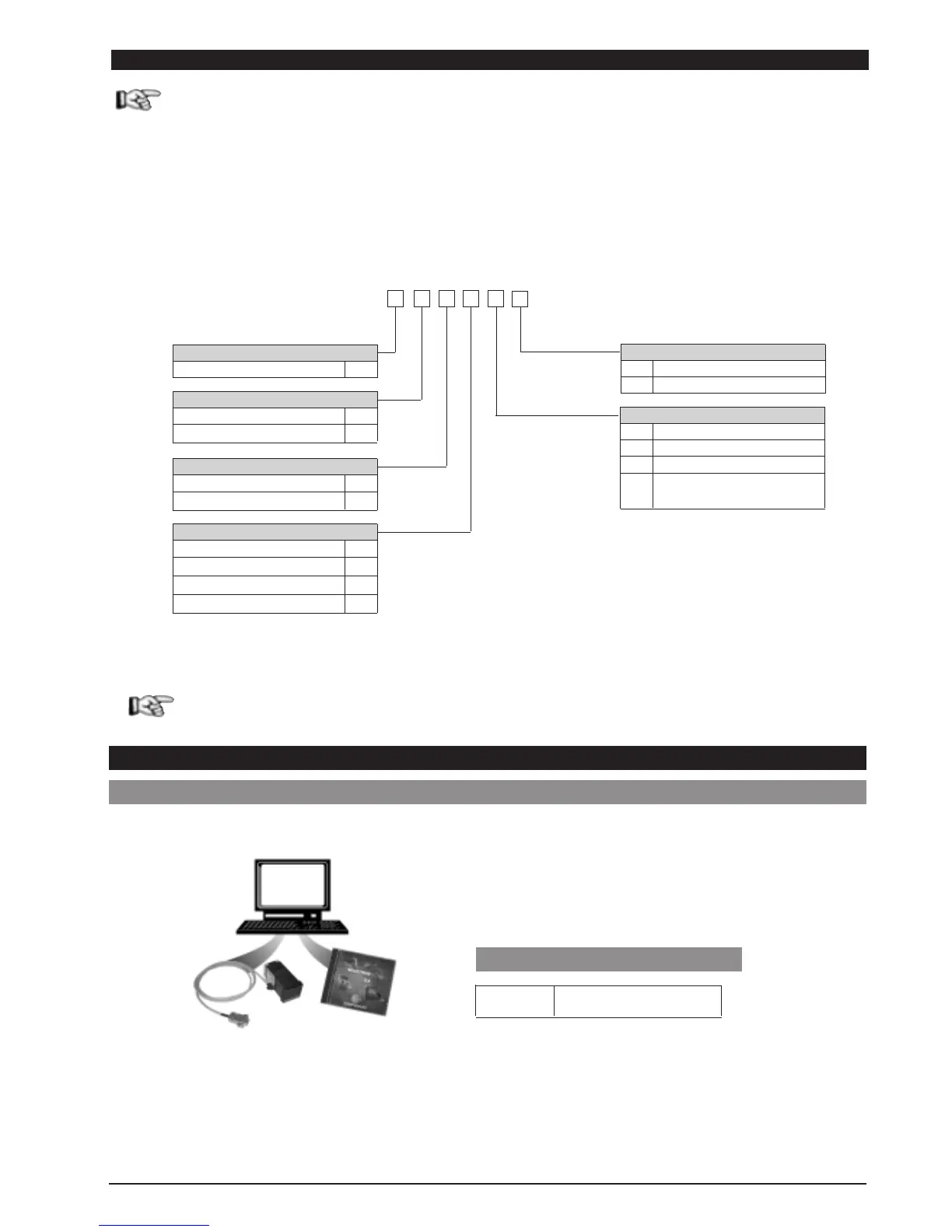

7 • TECHNICAL/COMMERCIAL INFORMATION
This section contains information regarding the instrument order codes and the main accessories available.
As stated in the Preliminary Warnings of these Instructions for Use, correct interpretation of the Controller order
code allows the hardware configuration for the controller to be identified immediately and so it is essential to quote
the order code each time the Gefran Customer Care Service is contacted for assistance with any problems.
Order code – Indicator / Interceptor 2400
For information on the availability of codes please contact your Gefran dealer.
SECOND MAIN INPUT
None 0
RETRANSMISSION OUTPUT
None 0
Analog 0/4...20mA (0...10V) W
MODEL
2400
Strain-gauge / TC / RTD / Pot / Lin 1
OUTPUT
4 relay outputs 4R
4 logic outputs 4D
2 relay outputs + Out MD8 2R
2 logic outputs + Out MD8 2D
The MD8 expansion must be version MD8-2, specific for the 2400
100...240Vac/dc
20...27Vac/dc
1
0
2
0
None
RS485
POWER SUPPLY
DIGITAL COMMUNICATION
3
RS232
P
PROFIBUS DP (not available if
option “W” is present )
