N.B.: for the version R77 are not available the probe codes 0...39, 48...51, 54...58
In case of non-availability, maximum and minimum limits are set to 0.
In case of custom linearization, test limits for setting LO and HI errors are given by the calibration
values.
If these limits are not exceeded, they are taken into consideration as limits LO_S and HI_S.
Max. non-linearity error for
thermocouples (TC),
resistors (PT100) and
thermistors (PTC, NTC).
The error is calculated as deviation from
theoretical value and is expressed as
percentage of full scale (in °C).
S, R range 0...1750°C; error < 0.2% f.s. (t > 300°C) / for other range; error < 0.5% f.s.
T error < 0.2% f.s. (t > -150°C)
B range 44...1800°C; error < 0.5% f.s. (t > 300°C) / range 44,0...999,9; error < 1% f.s. (t > 300°C)
U range -99,9...99,9 and -99...99°C; error < 0.5% f.s. / for other range; error < 0.2% f.s. (t > -150°C)
G error < 0.2% f.s. (t > 300°C)
D error < 0.2% f.s. (t > 200°C)
C range 0...2300; error < 0.2% f.s. / for other range; error < 0.5% f.s.
NTC error < 0.5% f.s.
Tc: J, K, E, N, L error < 0.2% f.s.
PT100, JPT100 and PTC error < 0.2% f.s.
In
t.P
(.1.
f.t
f.d
dp
l.s
x.s
o.f
d.1.
t.u.
t.d.
l.l
x.l
0 None
1 Zero
2 Hold
3 Flash
4 Max. peak display
5 Min. peak display
6 Delta peak display
7 Peak memory reset
8 Zero + peak memory reset
9 Alarms reset
10 Peak + alarms reset
11 Zero + alarms reset
12 Peak + zero + alarms reset
13 Output status OUT1
14 Output status OUT2
15 Output status OUT3
16 Output status OUT4
17 Keylock (d.I only)
18 Potentiometer Calibration
( t.U and t.d. only)
19 OFFSET (t.U. and t.d. only)
d. i. - t. u. - t. d.
min…max scale
of input selected in t.P
Decimal point position for
main input scale
Minimum limit of main
input scale
and analogue output
Maximum limit of main
input scale
and analogue output
Offset correction
of main input
Select function of
digital input
High limit for
the alarms set point
-999 ...999
scale points
dP Format
0 XXXX
1 XXX.X
2 * XX.XX
3 * X.XXX
min…max scale
of input selected in t.P
L.S ... H.S
Raise key function
(active only in
P.V.selection)
Low limit for the alarms
set point
L.S ... H.S
(*) not
available for
TC, RTD,
PTC and NTC
scales
Lower key function
(active only in
P.V.selection)
Select sampling time
(resolution). For linear
input 0...1V/POT only.
0 120ms > 14bit
1 60ms > 14bit
2 30ms > 13bit
3 15ms > 12bit
Digital filter
on main input
Digital filter on process
variable display
0.0 ... 20.0 sec
0.0 ... 9.9
scale points
TYPE Type 4 DIGIT 3 DIGIT + sign
PROBE
without dec. point with dec. point without dec. point with dec. point
Probe: TC
0 TC J °C 0/1000 0.0/999.9 0/999 0.0/99.9
1 TC J °F 32/1832 32.0/999.9 32/999 32.0/99.9
2 TC K °C 0/1300 0.0/999.9 0/999 0.0/99.9
3 TC K °F 32/2372 32.0/999.9 32/999 32.0/99.9
4 TC R °C 0/1750 0.0/999.9 0/999 0.0/99.9
5 TC R °F 32/3182 32.0/999.9 32/999 32.0/99.9
6 TC S °C 0/1750 0.0/999.9 0/999 0.0/99.9
7 TC S °F 32/3182 32.0/999.9 32/999 32.0/99.9
8 TC T °C -200/400 -199.9/400.0 -200/400 -99.9/99.9
9 TC T °F -328/752 -199.9/752.0 -328/752 -99.9/99.9
10 TC B °C 44/1800 44.0/999.9 not available not available
11 TC B °F 111/3272 111.0/999.9 not available not available
12 TC E °C -100/750 -100.0/750.0 -100/750 not available
13 TC E °F -148/1382 -148.0/999.9 -148/999 not available
14 TC N °C 0/1300 0.0/999.9 0/999 not available
15 TC N °F 32/2372 32.0/999.9 32/999 not available
16
TC L-GOST°C 0/600 0.0/600.0 0/600 0.0/99.9
17 TC L-GOST°F 32/1112 32.0/999.9 32/999 32.0/99.9
18 TC U °C -200/400 -199.9/400.0 -200/400 -99.9/99.9
19 TC U °F -328/752 -199.9/752.0 -328/752 -99.9/99.9
20 TC G °C 0/2300 0.0/999.9 0/999 not available
21 TC G °F 32/4172 32.0/999.9 32/999 not available
22 TC D °C 0/2300 0.0/999.9 0/999 not available
23 TC D °F 32/4172 32.0/999.9 32/999 not available
24 TC C °C 0/2300 0.0/999.9 0/999 not available
25 TC C °F 32/4172 32.0/999.9 32/999 not available
26 TC °C Custom Custom Custom Custom
27 TC °F Custom Custom Custom Custom
Probe: RTD
28 PT100 °C -200/850 -199.9/850.0 -200/850 -99.9/99.9
29 PT100 °F -328/1562 -199.9/999.9 -328/999 -99.9/99.9
30 JPT100 °C -200/600 -199.9/600.0 -200/600 -99.9/99.9
31 JPT100 °F -328/1112 -199.9/999.9 -328/999 -99.9/99.9
Probe: PTC - NTC
32 PTC °C -55/120 -55.0/120.0 -55/120 -55.0/99.9
33 PTC °F -67/248 -67.0/248.0 -67/248 -67.0/99.9
34 NTC °C -10/70 -10.0/70.0 -10/70 -10.0/70.0
35 NTC °F 14/158 14.0/158.0 14/158 14.0/99.9
Probe: Voltage + Current
36 0...60mV -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
37 0...60mV linear custom linear custom linear custom linear custom
38 12...60mV -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
39 12...60mV linear custom linear custom linear custom linear custom
40 0...20mA -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
41 0...20mA linear custom linear custom linear custom linear custom
42 4...20mA -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
43 4...20mA linear custom linear custom linear custom linear custom
44 0...10V -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
45 0...10V linear custom linear custom linear custom linear custom
46 2...10V -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
47 2...10V linear custom linear custom linear custom linear custom
48 0...5V -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
49 0...5V linear custom linear custom linear custom linear custom
50 1...5V -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
51 1...5V linear custom linear custom linear custom linear custom
52 0...1V/POT -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
53 0...1V/POT linear custom linear custom linear custom linear custom
54 200mV...1V -1999/9999 -199.9/999.9 -999/999 -99.9/99.9
55 200mV...1V linear custom linear custom linear custom linear custom
Probe: Custom PT100 - PTC - NTC
56 PT100 custom custom custom custom
JPT
57 PTC custom custom custom custom
58 NTC custom custom custom custom

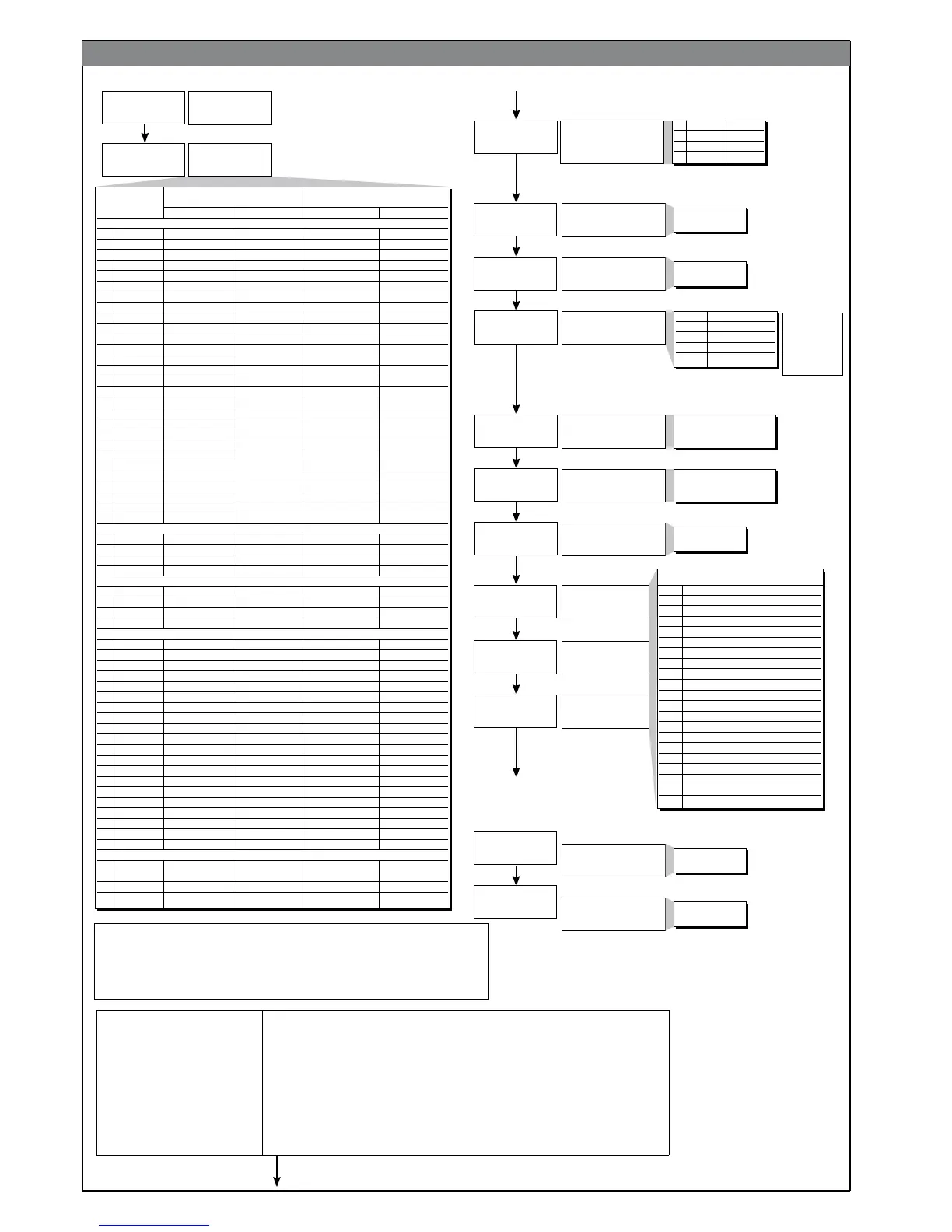

• TC/LIN input parameters
Input
settings
Type of probe,
signal and scale of
main input
+4 to disable filter (average
of the last eight values sampled)
+4 in order to visualize under the Ls value - (Hs - Ls) / 256
(only linear inputs not custom)
6
81641I_MHW_40T96_07-2011_ENG
