Seat and Seat Belt

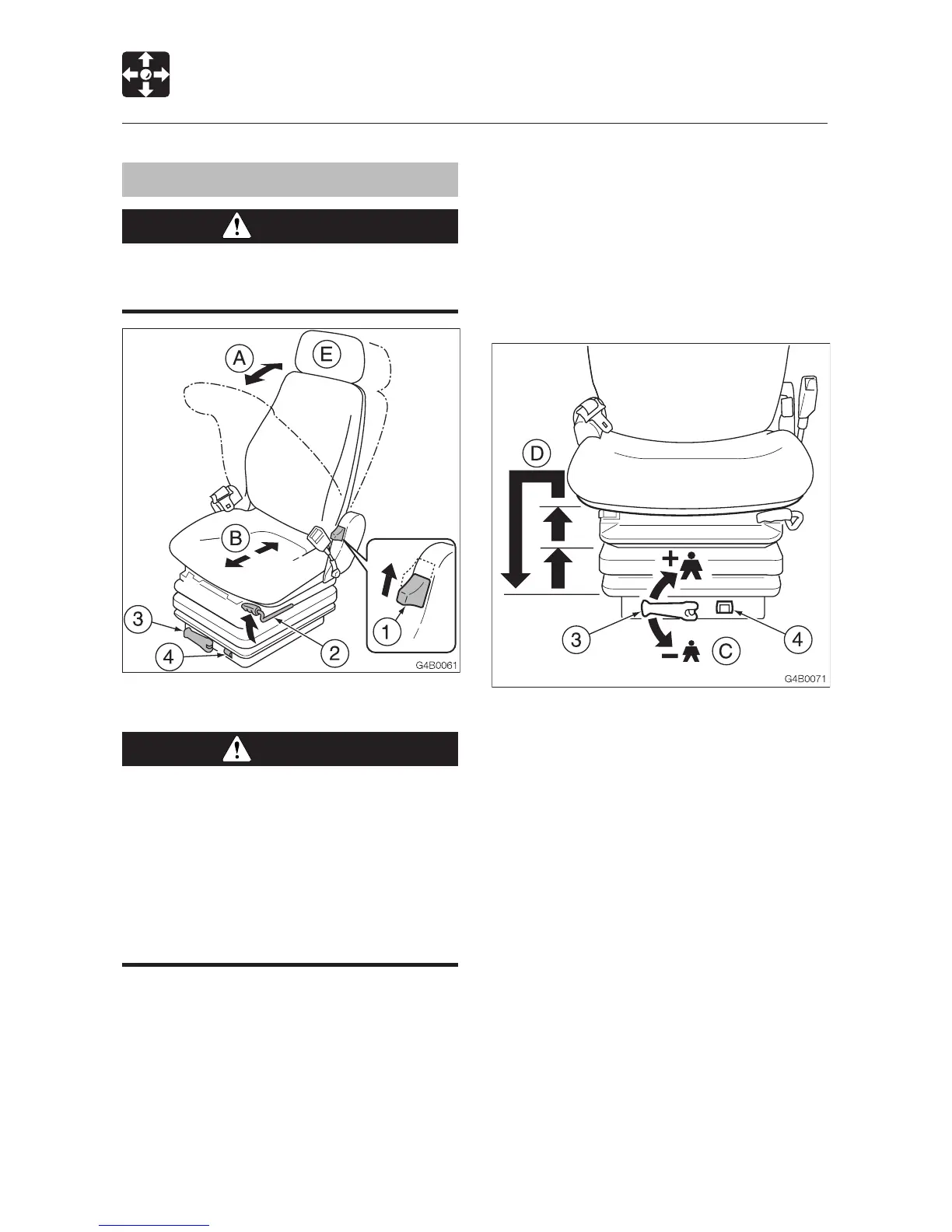

Seat < CTL65 / CTL75 / CTL85 >
WARNING
Adjust, secure and latch the operator’s
seat.
(A) Seatback angle adjustment
WARNING
Do not set the seat back to its maximum
reclining position and slide the seat
backwards at the same time. Doing
so may break the rear window glass,
resulting in injury.
Be careful not to allow the force of the
spring to bring the seat back sharply
forward.
1. Raise your torso, and sit down firmly in
the seat.
2. Pull on lever (1) to use the force of the
springs in the seatback to adjust the
reclining angle. Release the lever (1) at the
desired angle and the seatback will be
locked in that position.
(B) Fore-and-aft adjustment
1. Pull on lever (2) and slide the seat rearward
or forward to bring it to the optimum
position for operating the machine.
2. Release the lever (2) at the desired position
and the seat will be locked there.
Adjustment range: 15 steps,150 mm (5.9
in.)
(C) Weight adjustment
1. Turn handle (3) until the indicator (4) will
show the operator’s weight .
May be set to any value 10 kg steps, from
50 to 130 kg (110 to 287 lbs.)
(D) Vertical adjustment
Upward—
Lift the seat to first or second position
click-stop.
Downward—
First lift the seat to highest position, then the
seat can be lowered to lowest position.
(E) Headrest adjustment (Option)
The position of the headrest can be adjusted
in the vertical and front/rear directions.
1. To adjust in the vertical direction, grasp
the headrest with both hands and move
it upward or downward.
2. To adjust in the front/rear direction, grasp
the headrest with both hands and move it
forward or rearward.
