Every 50 Hours (or weekly)
20. Push arm cylinder pivot pins (2)
21. Top clamp weldment pivot pins (2)
22. Top clamp cylinder pivot pins (2)
23. Top clamp cylinder pivot pins (2)
24. Top clamp weldment pivot pins (2)
25. Top clamp cylinder pivot pins (2)
26. Top clamp weldment pivot pins (4)

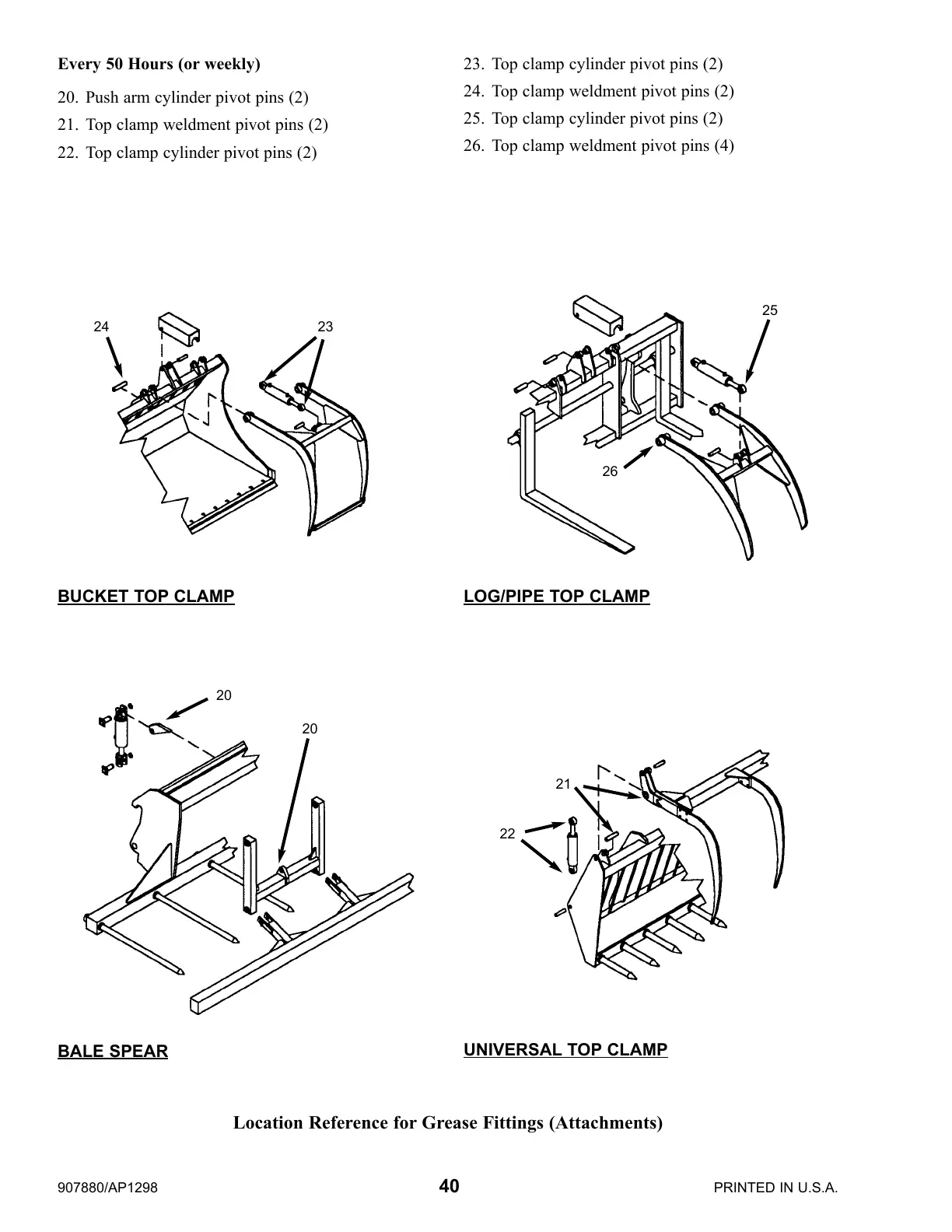

Location Reference for Grease Fittings (Attachments)
BUCKET TOP CLAMP
BALE SPEAR
UNIVERSAL TOP CLAMP
LOG/PIPE TOP CLAMP
24 23
25
26
21
22
20
20
