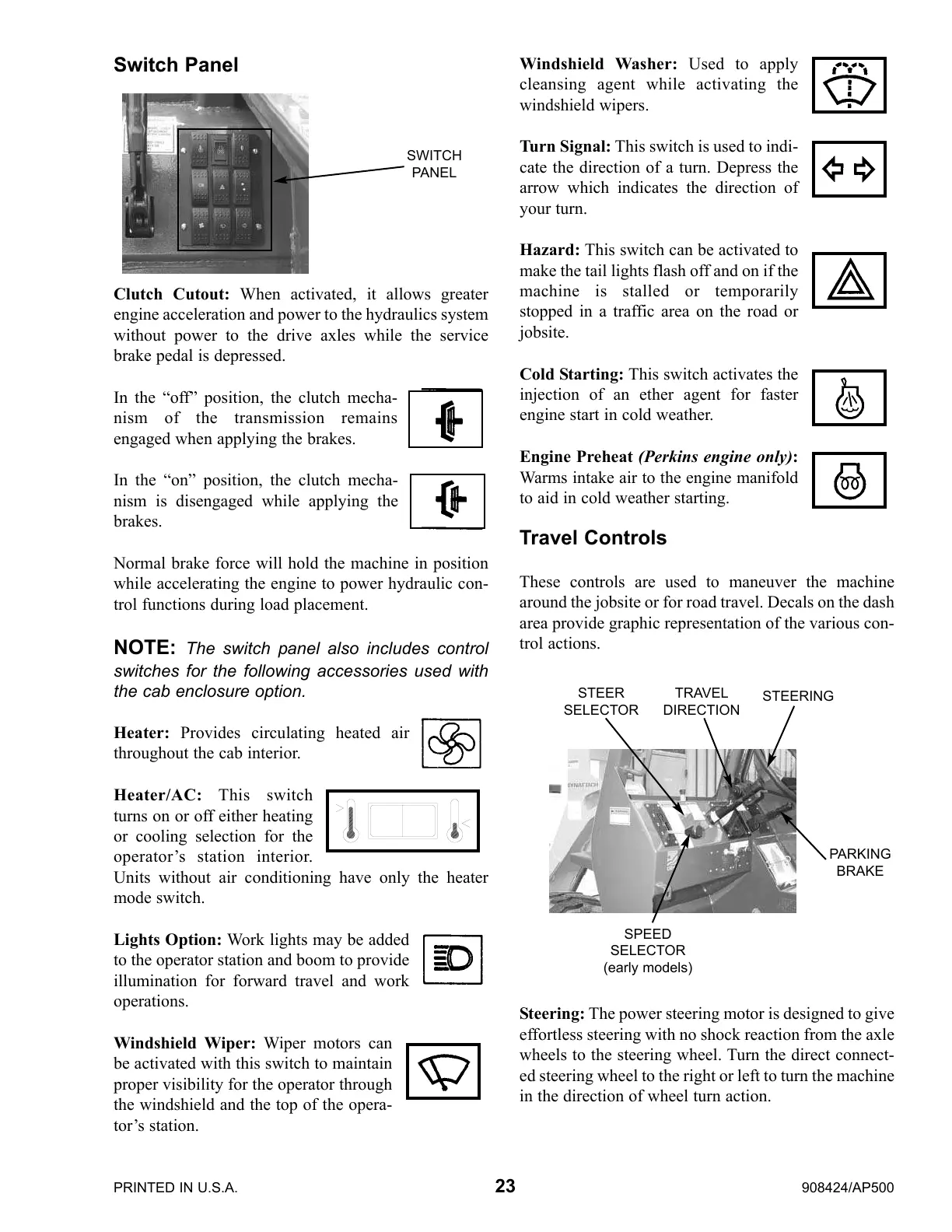

Switch Panel
Clutch Cutout: When activated, it allows greater
engine acceleration and power to the hydraulics system
without power to the drive axles while the service
brake pedal is depressed.
In the “off” position, the clutch mecha-
nism of the transmission remains
engaged when applying the brakes.
In the “on” position, the clutch mecha-
nism is disengaged while applying the
brakes.
Normal brake force will hold the machine in position
while accelerating the engine to power hydraulic con-
trol functions during load placement.
NOTE: The switch panel also includes control
switches for the following accessories used with
the cab enclosure option.
Heater: Provides circulating heated air
throughout the cab interior.
Heater/AC: This switch
turns on or off either heating
or cooling selection for the
operators station interior.
Units without air conditioning have only the heater
mode switch.
Lights Option: Work lights may be added
to the operator station and boom to provide
illumination for forward travel and work
operations.
Windshield Wiper: Wiper motors can
be activated with this switch to maintain
proper visibility for the operator through
the windshield and the top of the opera-
tors station.
Windshield Washer: Used to apply
cleansing agent while activating the
windshield wipers.
Turn Signal: This switch is used to indi-
cate the direction of a turn. Depress the
arrow which indicates the direction of
your turn.
Hazard: This switch can be activated to
make the tail lights flash off and on if the
machine is stalled or temporarily
stopped in a traffic area on the road or
jobsite.
Cold Starting: This switch activates the
injection of an ether agent for faster
engine start in cold weather.
Engine Preheat (Perkins engine only):
Warms intake air to the engine manifold
to aid in cold weather starting.
Travel Controls
These controls are used to maneuver the machine
around the jobsite or for road travel. Decals on the dash
area provide graphic representation of the various con-
trol actions.
Steering: The power steering motor is designed to give
effortless steering with no shock reaction from the axle
wheels to the steering wheel. Turn the direct connect-
ed steering wheel to the right or left to turn the machine
in the direction of wheel turn action.
PRINTED IN U.S.A. 23 908424/AP500
SWITCH
PANEL
STEERING
STEER
SELECTOR
PARKING
BRAKE
TRAVEL
DIRECTION
SPEED
SELECTOR
(early models)
