Hydraulic Reservoir Oil Level and Fill Cap: The
dipstick on the fill cap of the reservoir indicates the
level of the hydraulic oil in the reservoir.
Side Mirror: Located on the front outside corner of
the hydraulic reservoir, provides the operator with a
rear view of the right side and rear area of the machine.
Transmission Oil Level: The dipstick is located under
the access cover on the front hood section.
Battery Compartment: The battery is located under
the access cover on the front hood section.
Engine Oil Level: The dipstick is located on the left-
side of the engine.
Engine Coolant Level: The radiator cap is located
under the opening toward the rear of the main hood
section.
Backup Alarm: Located inside the rear frame cover,
produces a loud warning sound whenever the machine
is in reverse.
ATTACHMENT TOOLS
Gehl offers a versatile range of attachment tools to
meet various lifting and material handling applications
for this machine. Contact your area Gehl dealer for
specifications and ordering information.
ACCESSORIES
Gehl offers a versatile range of special accessories for
this machine. Contact your area Gehl dealer for speci-
fications and ordering information.
NOTE: All accessories are field installed unless
otherwise noted. Information and parts for field
installing of all of the accessories will be provided
by the Gehl Company or Gehl Telescopic Forklift
dealers.

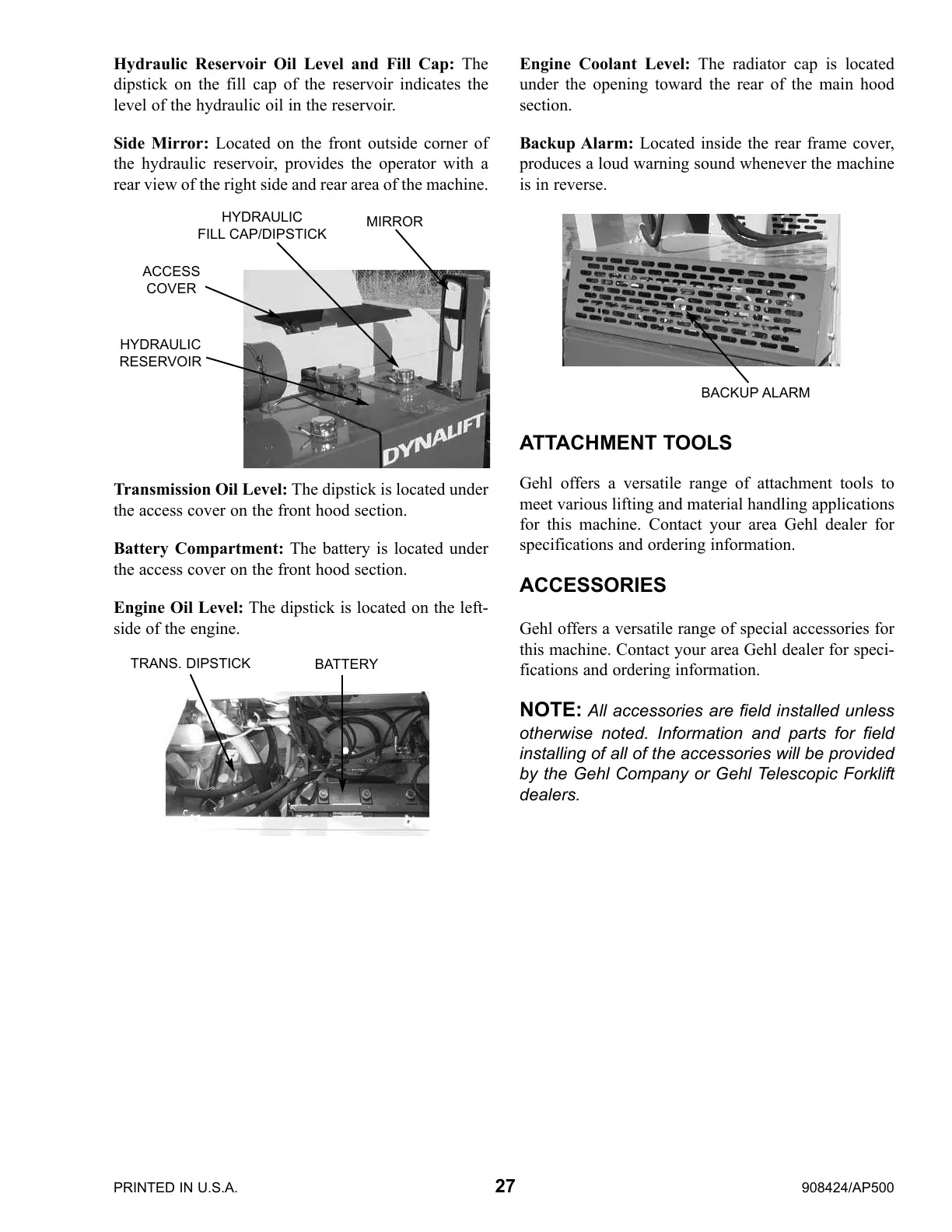

MIRROR
HYDRAULIC
FILL CAP/DIPSTICK
HYDRAULIC
RESERVOIR
ACCESS
COVER
TRANS. DIPSTICK
BATTERY
BACKUP ALARM
