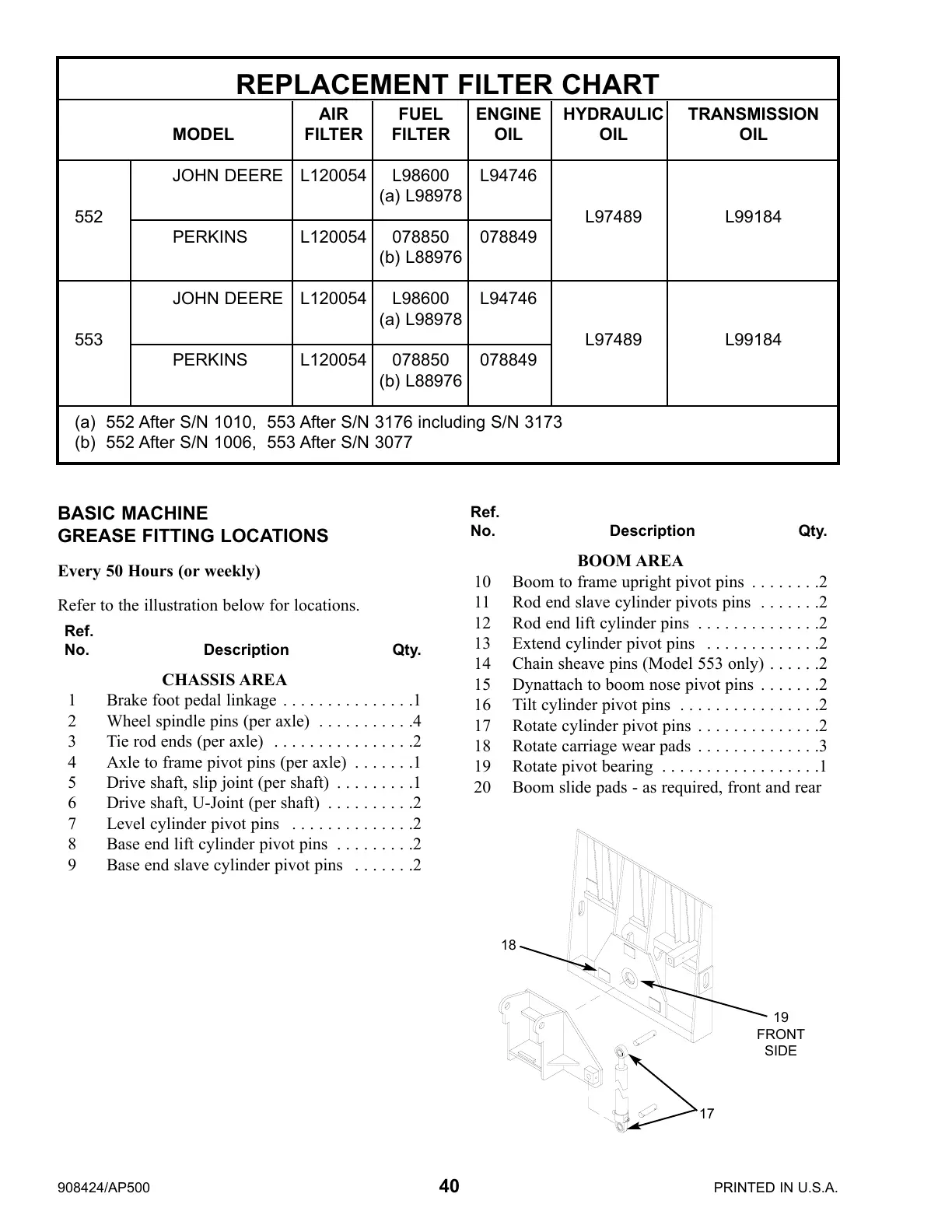

BASIC MACHINE
GREASE FITTING LOCATIONS
Every 50 Hours (or weekly)
Refer to the illustration below for locations.
CHASSIS AREA
1 Brake foot pedal linkage . . . . . . . . . . . . . . .1
2 Wheel spindle pins (per axle) . . . . . . . . . . .4
3 Tie rod ends (per axle) . . . . . . . . . . . . . . . .2
4 Axle to frame pivot pins (per axle) . . . . . . .1
5 Drive shaft, slip joint (per shaft) . . . . . . . . .1
6 Drive shaft, U-Joint (per shaft) . . . . . . . . . .2
7 Level cylinder pivot pins . . . . . . . . . . . . . .2
8 Base end lift cylinder pivot pins . . . . . . . . .2
9 Base end slave cylinder pivot pins . . . . . . .2
908424/AP500 40 PRINTED IN U.S.A.
REPLACEMENT FILTER CHART
AIR FUEL ENGINE HYDRAULIC TRANSMISSION
MODEL FILTER FILTER OIL OIL OIL
JOHN DEERE L120054 L98600 L94746
(a) L98978
552 L97489 L99184
PERKINS L120054 078850 078849
(b) L88976
JOHN DEERE L120054 L98600 L94746
(a) L98978
553 L97489 L99184
PERKINS L120054 078850 078849
(b) L88976
(a) 552 After S/N 1010, 553 After S/N 3176 including S/N 3173
(b) 552 After S/N 1006, 553 After S/N 3077
BOOM AREA
10 Boom to frame upright pivot pins . . . . . . . .2
11 Rod end slave cylinder pivots pins . . . . . . .2
12 Rod end lift cylinder pins . . . . . . . . . . . . . .2
13 Extend cylinder pivot pins . . . . . . . . . . . . .2
14 Chain sheave pins (Model 553 only) . . . . . .2
15 Dynattach to boom nose pivot pins . . . . . . .2
16 Tilt cylinder pivot pins . . . . . . . . . . . . . . . .2
17 Rotate cylinder pivot pins . . . . . . . . . . . . . .2
18 Rotate carriage wear pads . . . . . . . . . . . . . .3
19 Rotate pivot bearing . . . . . . . . . . . . . . . . . .1
20 Boom slide pads - as required, front and rear
Ref.
No. Description Qty.
Ref.
No. Description Qty.
18
17
19
FRONT
SIDE
