GUARDS AND SHIELDS
Whenever possible and without affecting machine
operation, guards and shields are used to protect poten-
tially hazardous areas. In many places, decals are also
provided to warn of potential dangers and to display
special operating procedures.
WARNING
Read and thoroughly understand ALL safety
decals on the Telescopic Forklift BEFORE
operating it. DO NOT operate the machine
unless ALL factory installed guards and
shields are properly secured in place.
CAUTION
Become familiar with and know how to use
ALL safety devices and controls on the
Telescopic Forklift BEFORE operating it.
Know how to stop the machine operation
BEFORE operating it. This GEHL machine is
designed and intended to be used ONLY with
a mounted GEHL Company attachment tool or
a GEHL Company approved accessory or
referral attachment tool. The GEHL Company
cannot be responsible for operator safety if
the machine is used with an unapproved
accessory or attachment tool.

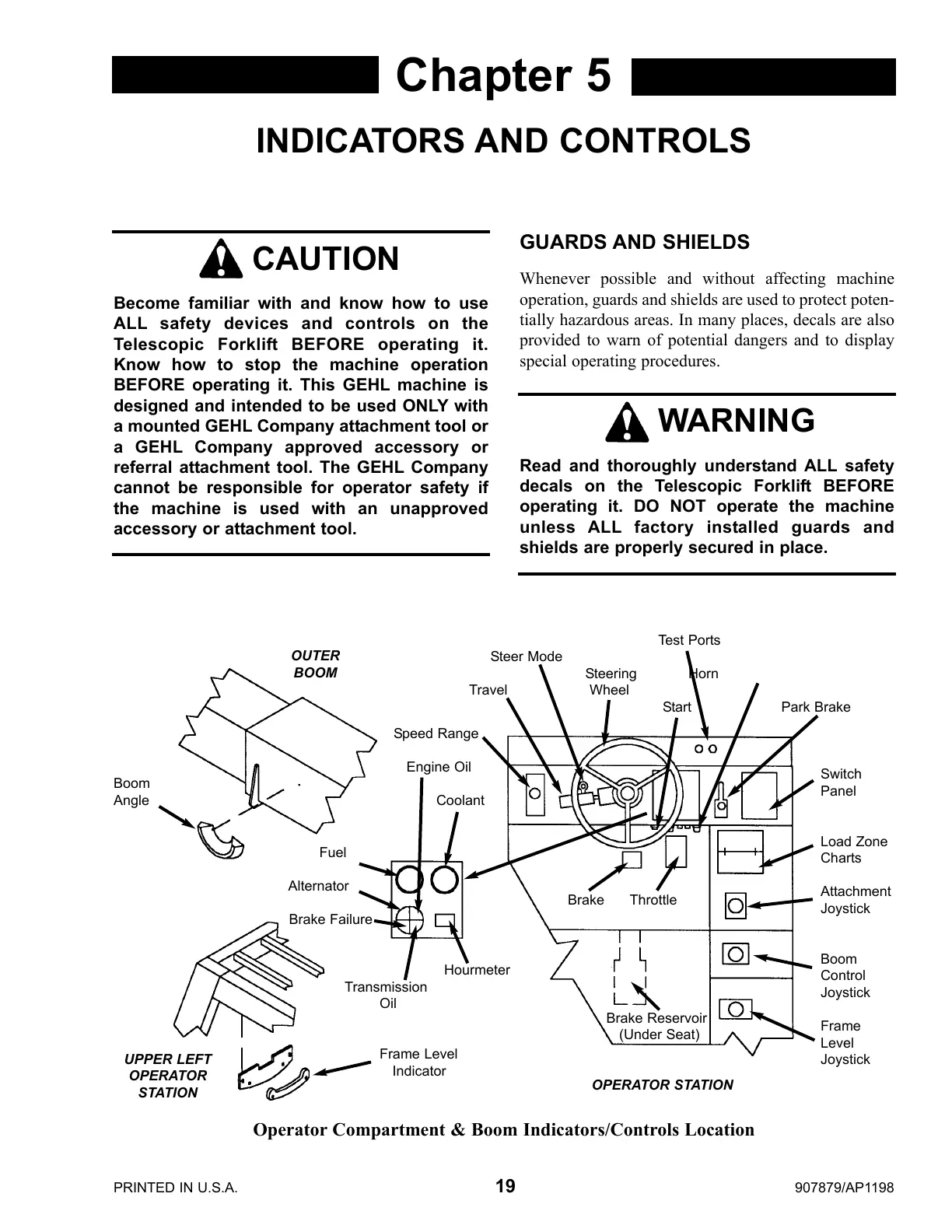

Chapter 5
INDICATORS AND CONTROLS
Operator Compartment & Boom Indicators/Controls Location
Speed Range
Engine Oil
Boom
Angle Coolant
Switch
Panel
Load Zone
Charts
Attachment
Joystick
Boom
Control
Joystick
Frame
Level
Joystick
Test Ports
Steer Mode
Steering Horn
Travel Wheel
Start Park Brake
Fuel
Alternator
Brake Failure
Hourmeter
Transmission
Oil
Frame Level
Indicator
Brake Throttle
Brake Reservoir
(Under Seat)
OUTER
BOOM
UPPER LEFT
OPERATOR
STATION
OPERATOR STATION
