PRINTED IN U.S.A. 35 907879/AP1198
Hydraulic System/Reservoir
Use a Mobil DTE 15M, or equivalent
which contains anti-rust, anti-foam and anti-
oxidation additives and conforms to ISO VG46.
Capacity:
47 gallons (178 Liters)
All Grease Fittings
Use No. 2 Lithium-based Grease
Engine Crankcase Oil
Ambient Temperature Grade
Below 32
o
F (0
o
C) SAE 10 or 10W30
32-77
o
F (0-25
o
C) SAE 20 or 10W30
Above 77
o
F (25
o
C) SAE 30 or 10W30
*Service Classification: API - CD/CE/CF-4
Capacity:
Refer to Engine Specifications, Chapter 2
Axle Gear Oil
Use API-GL-5 80W90
Differential Capacity:
3.4 quarts (3.22 Liters)
Planetary Capacity (each side):
1.3 quarts (1.2 Liters)
Transmission/Cooler Oil
Use Sunco Multi-ATF or Equivalent
Capacity:
24 quarts (23.0 Liters)
Brake System
DOT-3 Brake Fluid
GENERAL INFORMATION
NOTE: The “Maintenance” chapter in this manu-
al has provisions for recording the dates and
hourmeter readings after lubrication or other ser-
vice has been performed; use those spaces to
keep a log for maintaining a current service inter-
val record. Proper routine lubrication is an impor-
tant factor in preventing excessive part wear and
early failure.
LUBRICANTS
The chart on this page lists the locations, temperature
ranges and types of recommended lubricants to be used
when servicing this machine. Also refer to the separate
engine manual for additional information regarding
recommended engine lubricants, quantities required
and grades.
NOTE: Refer to Operator Services topic in the
“Service & Storage” chapter of this manual for
detailed information regarding periodic checking
and replenishing of lubricants.

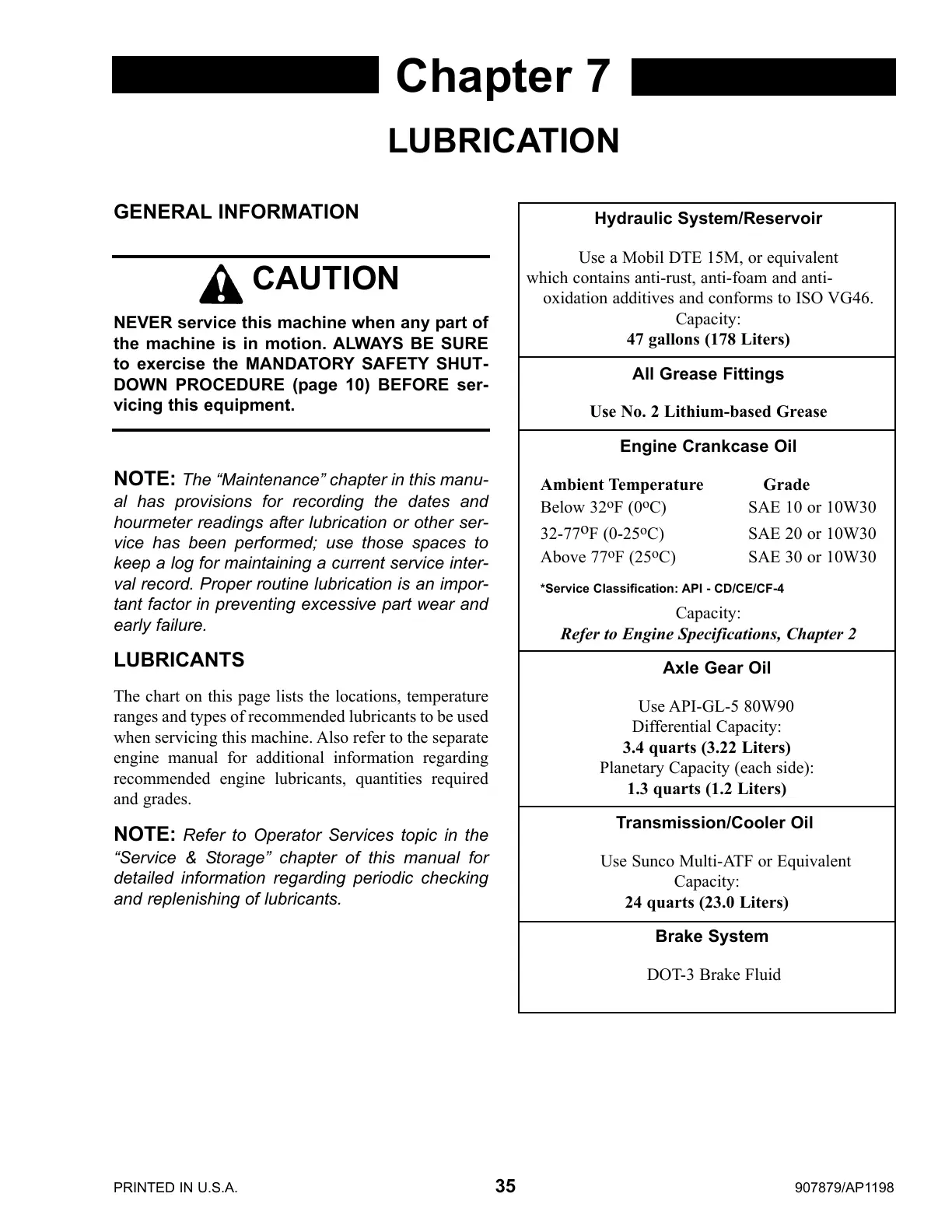

Chapter 7
LUBRICATION
CAUTION
NEVER service this machine when any part of
the machine is in motion. ALWAYS BE SURE
to exercise the MANDATORY SAFETY SHUT-
DOWN PROCEDURE (page 10) BEFORE ser-
vicing this equipment.
