907879/AP1198 32 PRINTED IN U.S.A.
each fork. NEVER add extra unauthorized counter-
weights to this machine. Consider the additional
weight of any attachment tool as part of the picking
load capacity of the machine.
Approach the load squarely and slowly with the
machine straight and level. Adjust the space between
forks, if necessary. Engage the load equally on forks
until the load touches the carriage backrest. Tilt the
forks back to position the load for travel.
Carrying The Load
If the load obstructs your view get someone to direct
you. Maintain ground speed consistent with ground
conditions and that permit stopping in a safe manner.

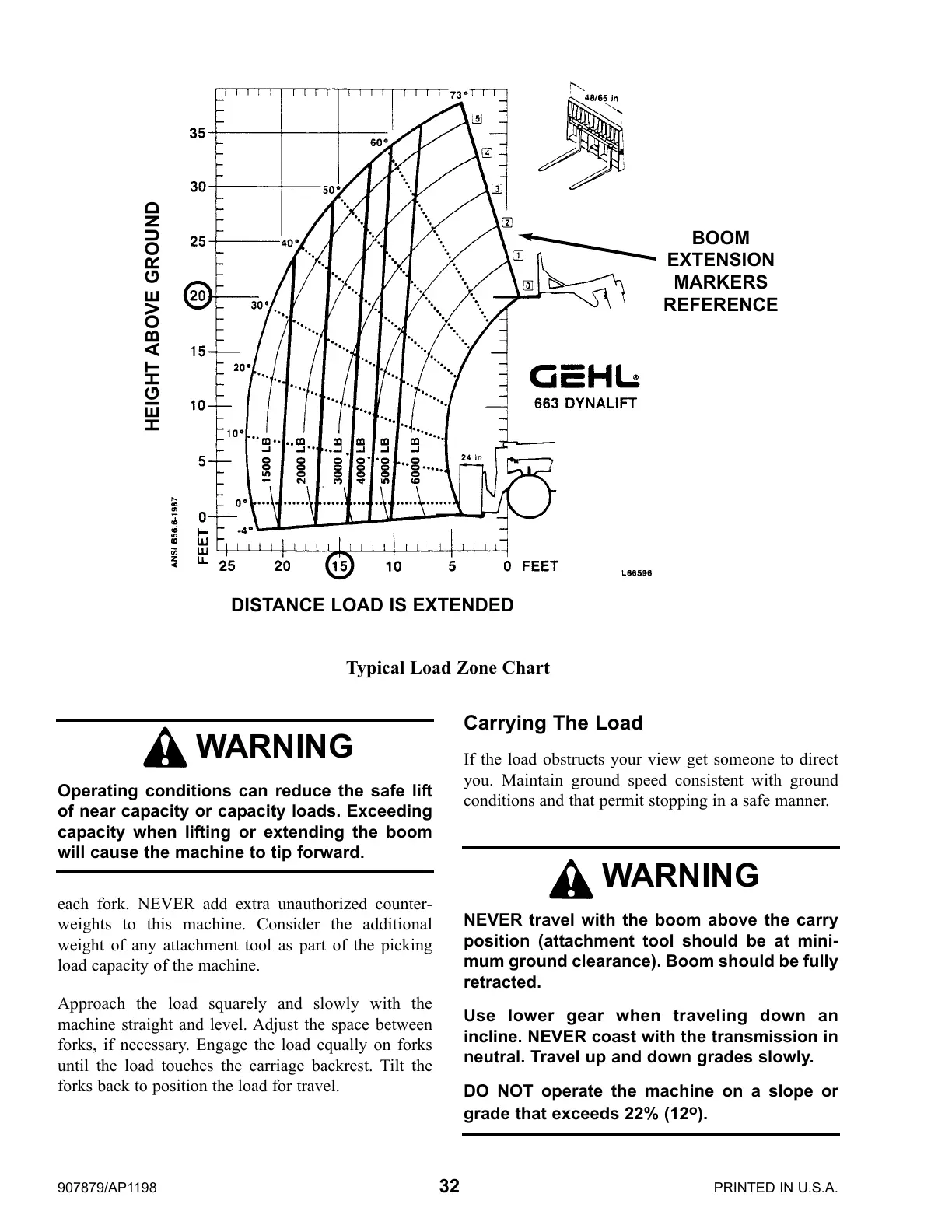

Typical Load Zone Chart
HEIGHT ABOVE GROUND
BOOM
EXTENSION
MARKERS
REFERENCE
DISTANCE LOAD IS EXTENDED
WARNING
Operating conditions can reduce the safe lift
of near capacity or capacity loads. Exceeding
capacity when lifting or extending the boom
will cause the machine to tip forward.
WARNING
NEVER travel with the boom above the carry
position (attachment tool should be at mini-
mum ground clearance). Boom should be fully
retracted.
Use lower gear when traveling down an
incline. NEVER coast with the transmission in
neutral. Travel up and down grades slowly.
DO NOT operate the machine on a slope or
grade that exceeds 22% (12
o
).
