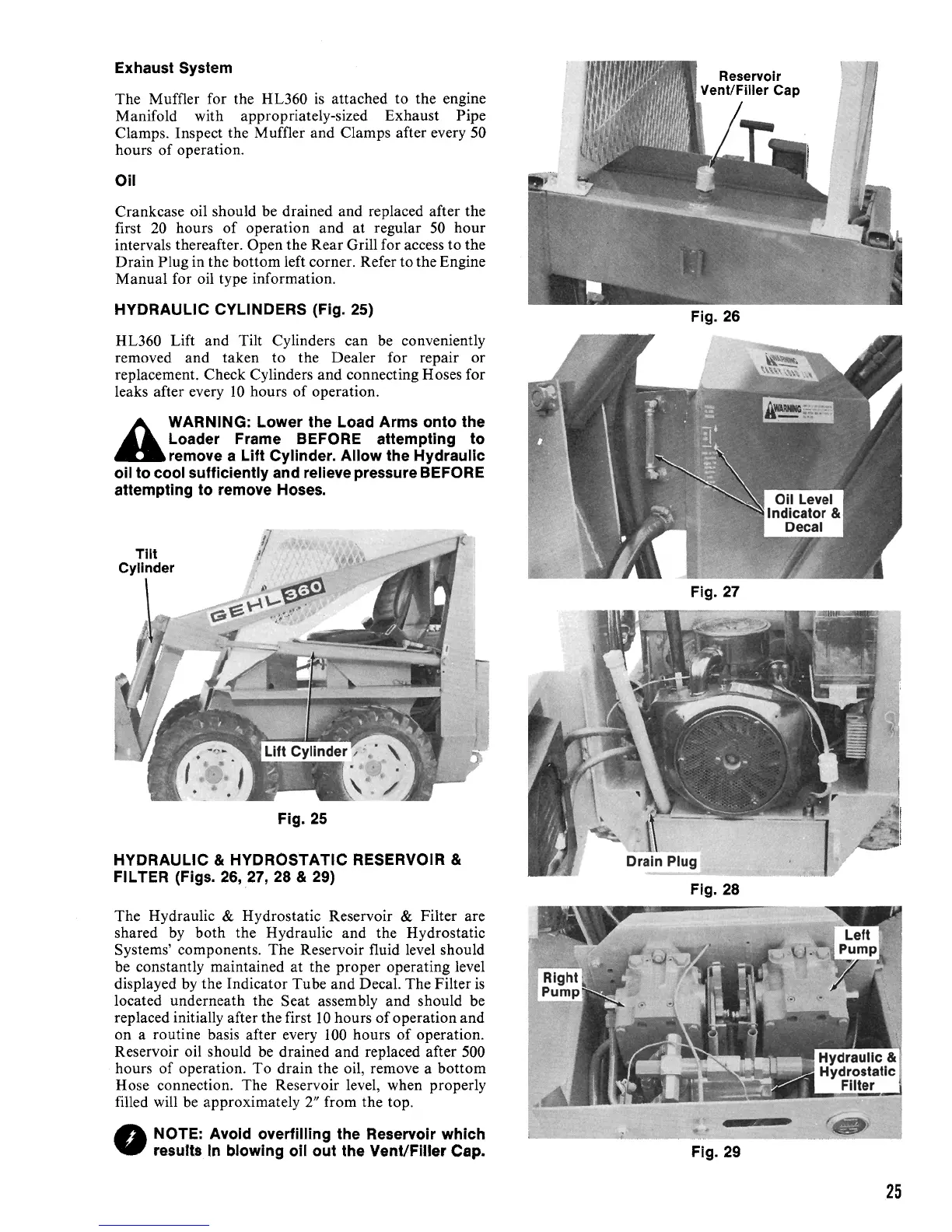

Exhaust System
The Muffler for the HL360
is
attached to the engine
Manifold with appropriately-sized Exhaust Pipe
Clamps. Inspect the Muffler and Clamps after every
50
hours of operation.
Oil
Crankcase oil should be drained and replaced after the
first
20
hours
of
operation and
at
regular
50
hour
intervals thereafter. Open the Rear Grill for access
to
the
Drain Plug in the bottom left corner. Refer to the Engine
Manual for oil type information.
HYDRAULIC CYLINDERS (Fig. 25)
HL360 Lift and Tilt Cylinders can be conveniently
removed and taken to the Dealer for repair or
replacement. Check Cylinders and connecting Hoses for
leaks after every
10
hours
of
operation.
A
WARNING: Lower the Load Arms onto the
Loader Frame BEFORE attempting to
remove a
Lift Cylinder. Allow the Hydraulic
oil to cool sufficiently and relieve pressure BEFORE
attempting to remove Hoses.
Tilt
Cylinder
Fig. 25
HYDRAULIC &
HYDROSTATIC
RESERVOIR &
FILTER (Figs. 26, 27, 28 & 29)
The Hydraulic & Hydrostatic Reservoir & Filter are
shared
by
both the Hydraulic and the Hydrostatic
Systems' components. The Reservoir fluid level should
be constantly maintained
at
the proper operating level
displayed
by
the Indicator Tube and Decal. The Filter
is
located underneath the Seat assembly and should be
replaced initially after the first
10
hours
of
operation and
on a routine basis after every
100
hours
of
operation.
Reservoir oil should be drained and replaced after 500
hours
of
operation.
To
drain the oil, remove a bottom
Hose connection. The Reservoir level, when properly
filled will
be
approximately
2"
from the top .
NOTE: Avoid overfilling the Reservoir which
•
results. In blowing oil out the Vent/Filler Cap.
Fig. 26
Fig.
27
Fig. 28
Fig. 29
25
