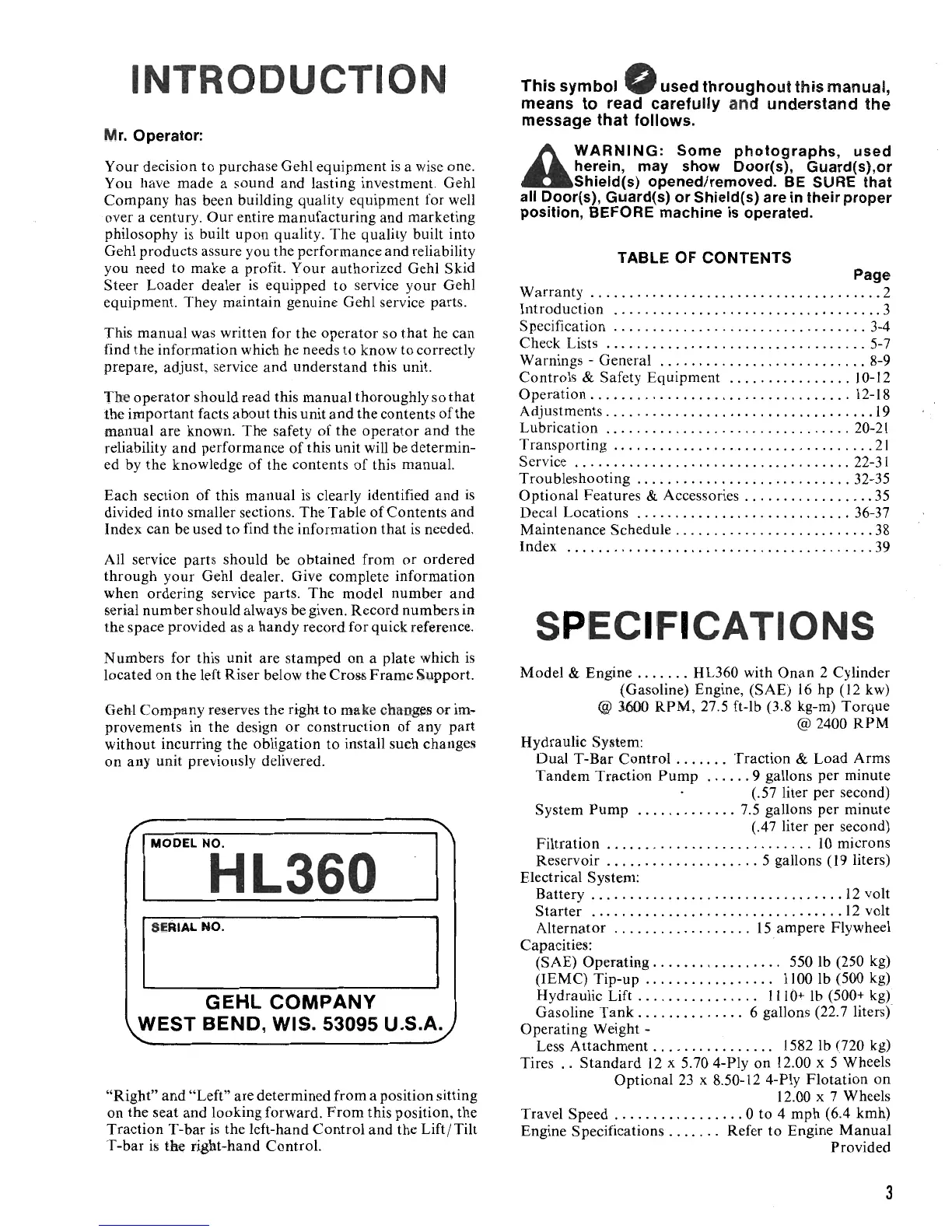

INTRODUCTION
M r. Operator:
Your decision to purchase Gehl equipment is a wise one.
You have made a sound
and lasting investment. Gehl
Company has been building quality equipment for well
over a century.
Our entire manufacturing and marketing
philosophy
is built upon quality. The quality built into
Gehl products assure you the performance
and reliability
you need to make a profit. Your authorized Gehl Skid
Steer
Loader dealer is equipped to service your Gehl
equipment. They maintain genuine Gehl service parts.
This manual was written for the
operator so that he can
find the information which he needs
to know to correctly
prepare, adjust, service and understand this unit.
The operator should read this manual thoroughly so that
the important facts about this unit and the contents of the
manual are known. The safety of the operator and the
reliability
and performance of this unit will be determin-
ed by the knowledge
of the contents of this manual.
Each section
of this manual is clearly identified and is
divided into smaller sections. The Table of Contents and
Index can be used
to find the information that is needed.
All service parts should be obtained from
or ordered
through your Gehl dealer. Give complete information
when ordering service parts.
The model number and
serial number should always be given. Record numbers in
the space provided as a handy record for quick reference.
Numbers for this unit are stamped
on a plate which is
located on the left Riser below the Cross Frame Support.
Gehl
Company reserves the right to ma ke cha-nges or im-
provements in the design
or construction of any part
without incurring the obligation to install such changes
on any unit previously delivered.
GEHL COMPANY
WEST BEND, WIS. 53095 U.S.A.
"Right" and "Left" are determined from a position sitting
on the seat and looking forward. From this position, the
Traction
T-bar is the left-hand Control and the Lift/Tilt
T-bar ill the right-hand Control.
This Symbol . used throughout this manual,
means
to read carefully and understand the
message that follows.
A
WARNING: Some photographs, used
herein, may show Door(s), Guard(s),or
Shield(s) opened/removed. BE SURE that
all Door(s), Guard(s) or Shield(s) are in their proper
position, BEFORE machine
is operated.
TABLE
OF CONTENTS
Page
Warranty ...................... . ............... 2
Introduction ............ . ........ . ............. 3
Specification
................ . .............. . . 3-4
Check Lists
............... .. . .. .... . ......... 5-7
Warnings - General
......... . ................. 8-9
Controls
& Safety Equipment .. ....... . ...... 10-12
Operation . . . . . .
................ ... . . .. .. . .. 12-18
Adjustments
.................. . ... .. ........... 19
Lubrication ............ . .... . .. .. . . .. .. .... 20-21
Transporting ...................... . ........... 21
Service ........... . ........................ 22-31
Troubleshooting ............................ 32-35
Optional Features
& Accessories .......... ... .... 35
Decal Locations .............. . ............. 36-37
Maintenance Schedule
................ . . . .. . . ... 38
Index ... .. ....................... . .. ... ... . .. 39
SPECIFI CATIONS
Model & Engine ....... HL360 with Onan 2 Cylinder
(Gasoline) Engine, (SAE)
16 hp (12 kw)
@ 1600 RPM, 27.5 ft-lb (3.8 kg-m) Torque
@ 2400 RPM
Hydraulic System:
Dual T-Bar Control ....... Traction & Load Arms
Tandem Traction Pump ...... 9 gallons per minute
(.57 liter per second)
System
Pump ............. 7.5 gallons per minute
(.47 liter per second)
Filtration
..................... . ..... 10 microns
Reservoir
.................... 5 gallons (19 liters)
Electrical System:
Battery
......................... . ....... 12 volt
Starter ............................... . . 12 volt
Alternator
.............. . .. . 15 ampere Flywheel
Capacities: .
(SAE) Operating
................. 550 Ib (250 kg)
(lEMC) Tip-up ................. 1100 Ib (500 kg)
Hydraulic Lift . . . . . . . . . . . . . .
.. 1110+ Ib (500+ kg)
Gasoline
Tank .............. 6 gallons (22.7 liters)
Operating Weight -
Less
Attachment. . . . . . . . . . . . . . .. 1582 Ib (720 kg)
Tires
.. Standard 12 x 5.70 4-Ply on 12.00 x 5 Wheels
Optional
23 x 8.50-12 4-Ply Flotation on
12.00 x 7 Wheels
Travel Speed
............... . . 0 to 4 mph (6.4 kmh)
Engine Specifications
....... Refer to Engine Manual
Provided
