Gehl HL 360 User Manual

Attachments:
Struck
Heaped
fp (m3)
fp (m3)
36" Utility Bucket
3.6 (0.1) 4.6 (0.
13)
42" Utility Bucket
4.3 (0.
12) 5.4 (0.15)
42" Light Material Bucket
7.7 (0.215) 9.8 (0.275)
48" Light Material Bucket
8.8 (0.245) 11.4 (0.32)
60" Light Material Bucket
11.0 (0.31)
14 .5 (0.41)
36"
Manure Fork
42" Manure Fork
36" Pallet Fork
Accessory
............. Weld-on Grapple Attachment

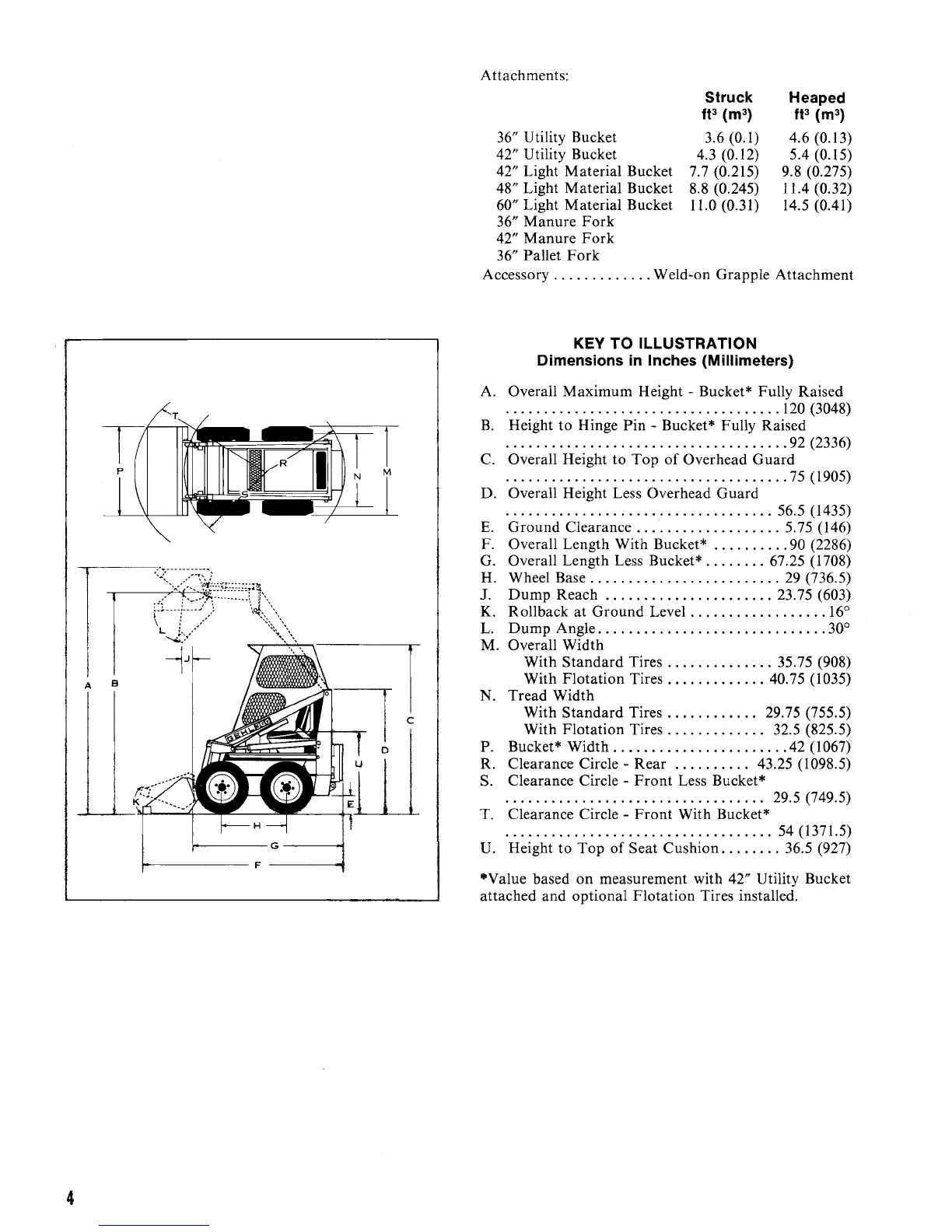

KEY TO ILLUSTRATION
Dimensions in Inches (Millimeters)
A. Overall Maximum Height - Bucket* Fully Raised
·
....................... ......... ... 120 (3048)
B. Height
to Hinge Pin - Bucket* Fully Raised
·
.... . .. ..... .......... .. .. .... . . , ... 92 (2336)
C. Overall Height
to Top of Overhead Guard
· .................................... 75 (1905)
D. Overall Height Less Overhead
Guard
· .................................. 56.5 (1435)
E. Ground Clearance ...... . ........... . 5.75 (146)
F. Overall Length With Bucket* .
... . ..... 90 (2286)
G. Overall Length Less Bucket* . .
.. .... 67.25 (1708)
H. Wheel Base .
.. .... . ..... .... .. . .. ... 29 (736.5)
1.
Dump Reach . ......... .... ... ..... 23.75 (603)
K. Rollback
at Ground Level .................. 16 °
L. Dump Angle .............................. 30°
M. Overall Width
With
Standard Tires .............. 35.75 (908)
With
Flotation Tires ..... . ....... 40. 75 (1035)
A B
N.
Tread Width
With
Standard Tires ............ 29.75 (755. 5)
With Flotation Tires ... . ......... 32.5 (825.5)
P. Bucket*
Width . ... ........ ..... . ..... 42 (1067)
R. Clearance Circle -
Rear . . ....... . 43.25 (1098. 5)
S. Clearance Circle - Front Less Bucket*
·
....................... . ..... . .. . 29.5 (749.5)
T. Clearance Circle -
Front With Bucket*
·
..... . .. . ..... ... ...... . ..... .. ... 54 (1371.5)
U. Height to Top of Seat Cushion ........ 36.5 (927)
·Value based on measurement with 42" Utility Bucket
attached and optional
Flotation Tires installed.
4
