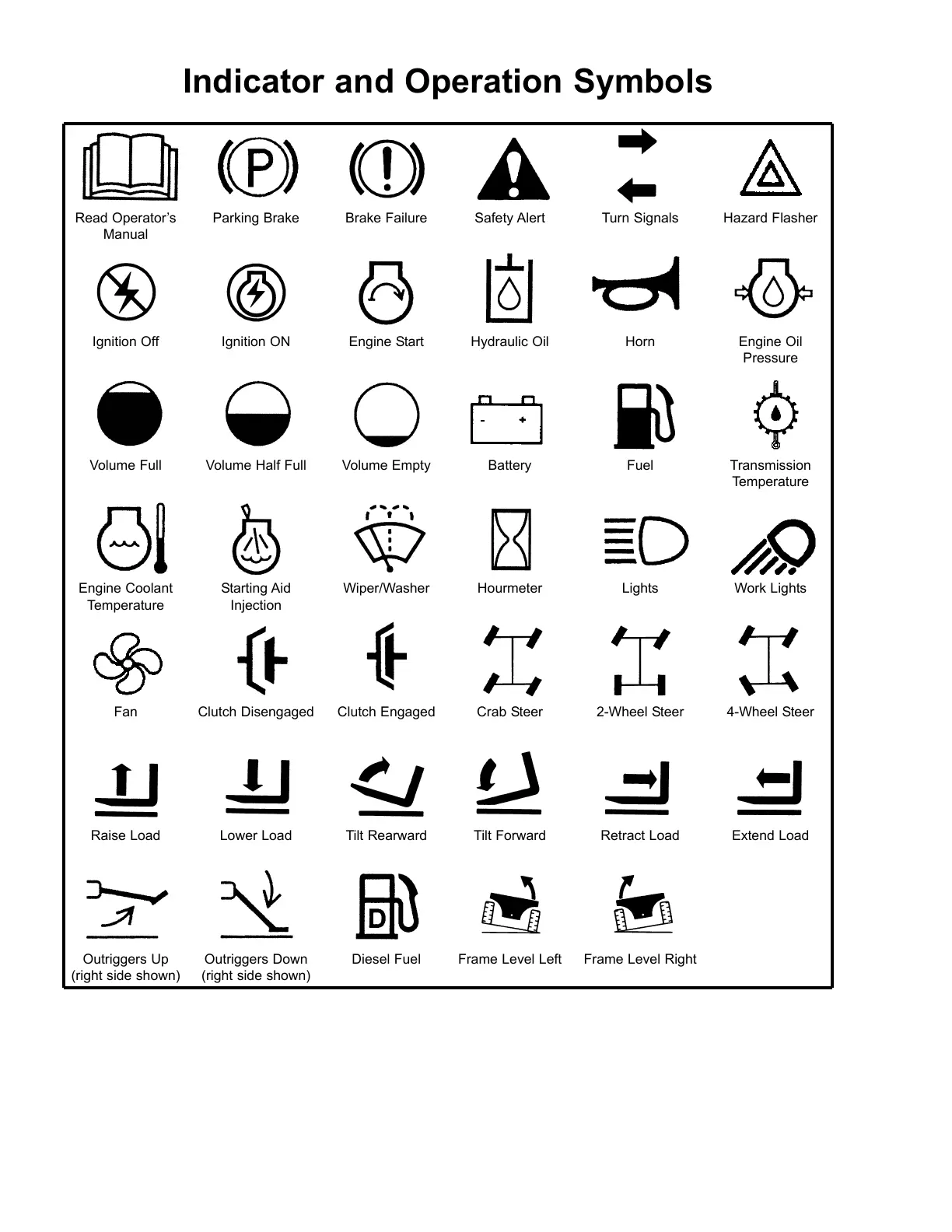

Indicator and Operation Symbols
Read Operator’s
Manual
Turn SignalsParking Brake Safety Alert
Fuel
Lights
Volume Half FullVolume Full
Engine Oil
Pressure
Hazard Flasher
Battery
Work Lights
Clutch Disengaged
Transmission
Temperature
Fan
Frame Level Left
Crab Steer
Lower Load
2-Wheel Steer
Raise Load
4-Wheel Steer
Engine Coolant
Temperature
Hourmeter
Retract Load
Volume Empty
Starting Aid
Injection
Tilt Rearward
Wiper/Washer
Extend LoadTilt Forward
Hydraulic OilEngine Start Horn
Frame Level Right
Clutch Engaged
Ignition Off Ignition ON
Outriggers Down
(right side shown)
Outriggers Up
(right side shown)
Brake Failure
Diesel Fuel
