PRINTED IN U.S.A. 33 913218/CP0307
2. Roll the carrier rearward as far as it will go. Once
the carrier is rolled all the way back, perform the
MANDATORY SAFETY SHUTDOWN PROCE-
DURE (p. 8, Safety chapter).
3. With the engine off, leave the operator’s station.
Manually raise the lock spring and flip the lock
plate up and outward at least 180
o
so it is in posi-
tion to re-lock on the next attachment tool.
4. Tilt the Quick-attach System forward to allow the
attachment tool to roll out, then lower the boom so
the hook ears clear the hookup bar on the attach-
ment tool.
NOTE: One side of the lock plate has a bright
red decal to indicate the unlocked position.
5. If the attachment tool has auxiliary hydraulics, dis-
connect the hoses from the quick-disconnects on
the boom nose.
6. Start the engine and tilt the Quick-attach System
forward, then slowly back the machine until the
attachment tool is free from the boom nose.
SELF-LEVELING
The machine is equipped with a hydraulic self-leveling
feature. This feature is designed to keep the attachment
tool level while the boom is being raised.
GENERAL MACHINE OPERATION
Take time to check the Telescopic Handler to be sure
all systems are in good operating condition. Perform
the following steps before starting the machine for the
first time each day:
1. Check the engine oil and coolant, transmission oil
and hydraulic oil levels.
2. Be sure weekly lubrication has been done.
3. Visually inspect for leaks, broken or malfunction-
ing parts. Be sure all caps, covers and safety
shields are in place.
4. Check tires for cuts, bulges, nails, correct pressure,
loose wheel nuts, etc.
5. Inspect the work area. Be sure you know where
you will make load pickups, lifts, and turns. Look
over the terrain of the jobsite for holes, obstacles,
slippery surfaces, soft or deep mud.
6. Check clearances of ramps, doorways and
passage-ways. Check overhead clearances if you
will travel and place loads near power or telephone
lines.
If the machine is found to be in need of repair or in any
way unsafe, or contributes to an unsafe condition, the
matter shall be reported immediately to the user’s des-
ignated authority. The machine must NOT be operated
until it has been restored to a safe operating condition.
WARNING
Exhaust fumes can kill. Ensure proper ventila-
tion when starting indoors or in enclosed
areas.
Use proper hand holds, NOT the steering
wheel or control levers when mounting and
dismounting.
NEVER operate the machine with safety
guards or covers removed.
Over-inflated tires can explode and cause
injury or death. Tire repairs MUST be made
only by authorized personnel using proper
tools and equipment.

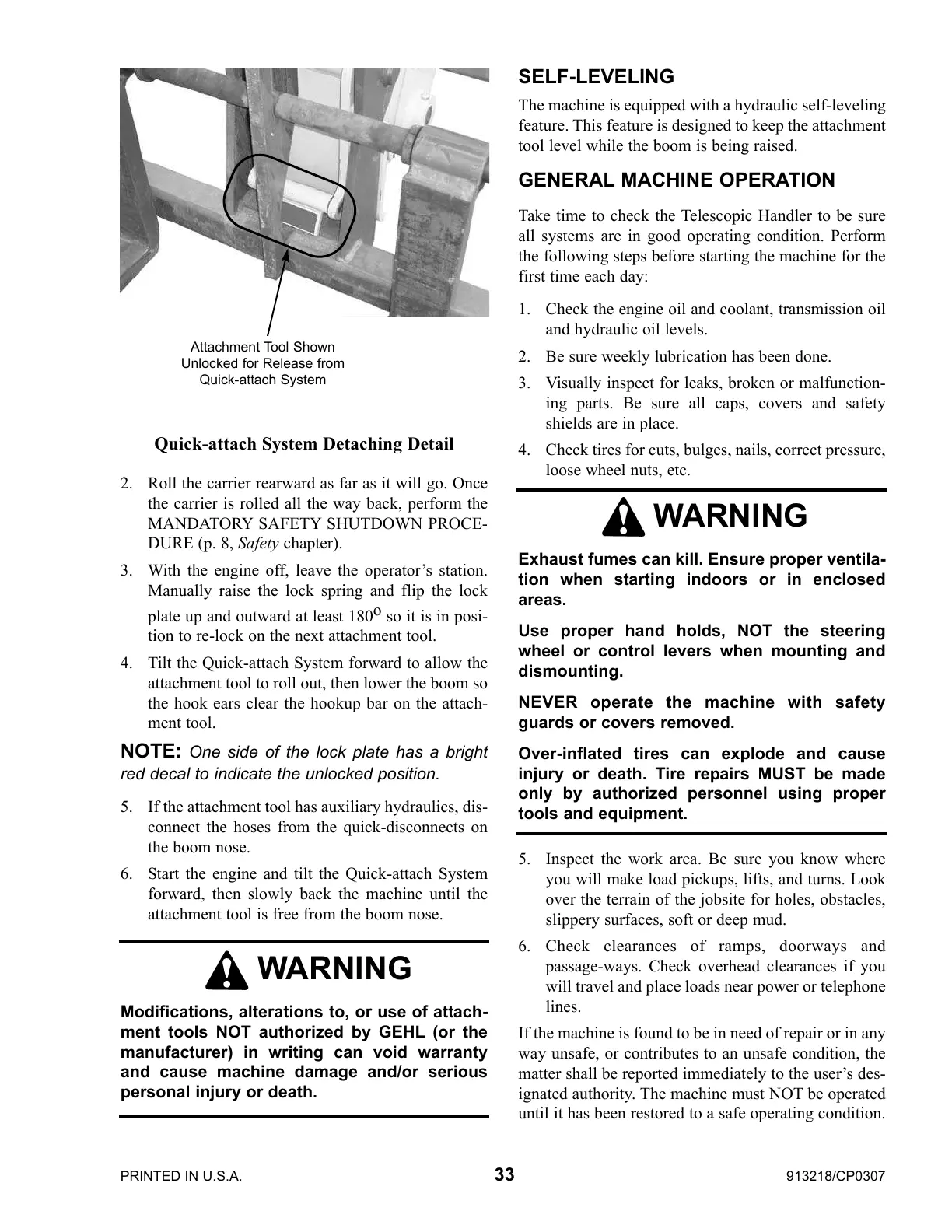

Quick-attach System Detaching Detail
WARNING
Modifications, alterations to, or use of attach-
ment tools NOT authorized by GEHL (or the
manufacturer) in writing can void warranty
and cause machine damage and/or serious
personal injury or death.
Attachment Tool Shown
Unlocked for Release from
Quick-attach System
To Next Page
