Electrical System
Circuit Breakers
The circuit breakers for the loader are located on the right instrument panel.
Battery
Before servicing the battery or electrical
system, be sure the battery disconnect switch is in the
OFF position.
The battery on the loader is a 12 volt, wet-cell battery, located under the
operator’s seat. To access the battery, remove the two cover plates (refer to
Figs. 45, 46). Remote battery terminals and the battery disconnect switch are
located at the rear of the loader.
The battery top must be kept clean. Clean it with an alkaline solution
(ammonia or baking soda and water). After foaming has stopped, flush the
battery top with clean water. If the terminals and cable connection clamps are
corroded or have a build-up, disconnect the cables and clean the terminals
and clamps with the same alkaline solution.
61 908274/BP1202
WARNING

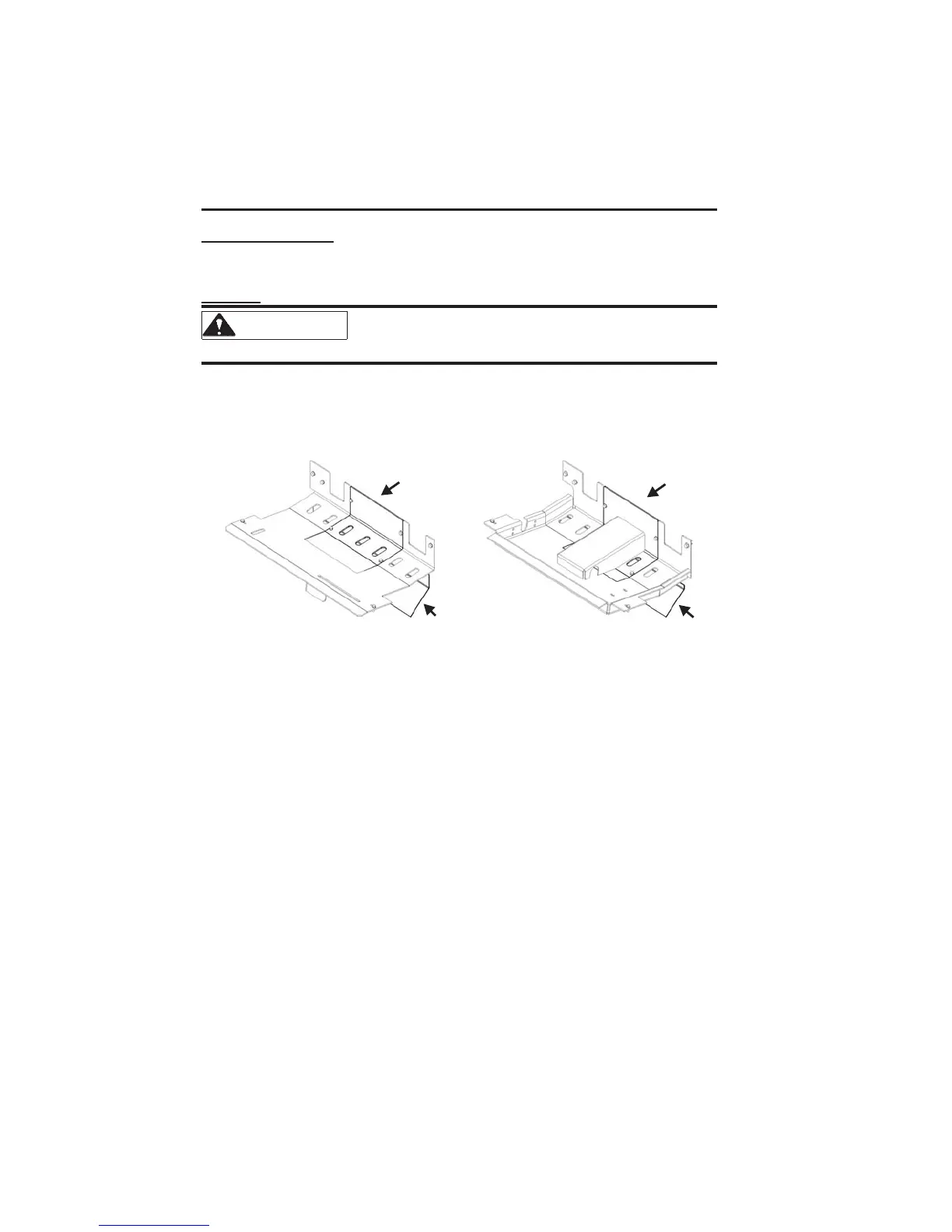

Fig. 45: T-bar and Dual Hand Battery
Cover Plates
Fig. 46: Hand/Foot Battery Cover
Plates
To Next Page
