Gehl SL7600 - Page 80

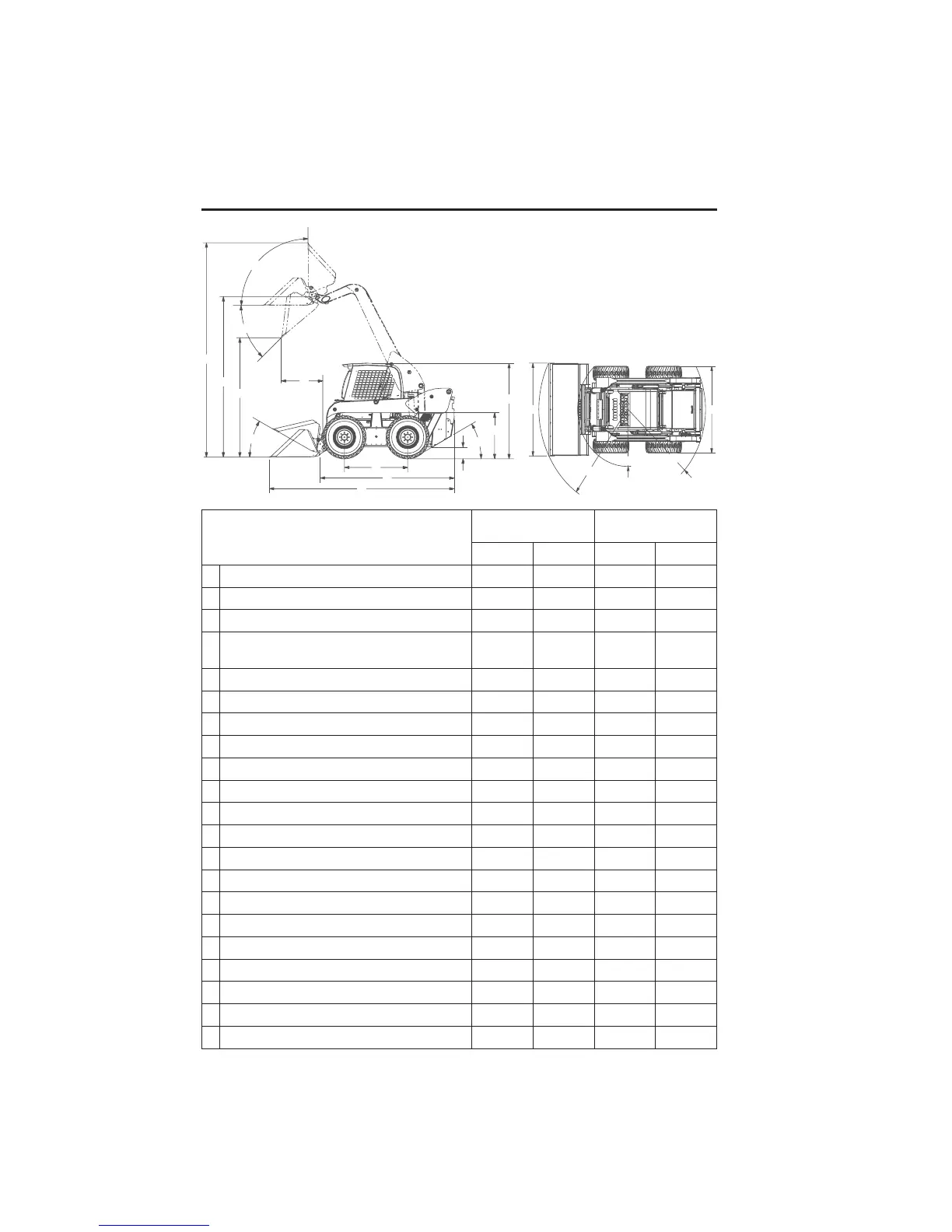

Dimensional Specifications
3/4 Yd
3
Bucket
w/14 X 17.5 Tires
1Yd
3
Bucket
w/14 X 17.5 Tires
inches (mm) inches (mm)
A
Overall Operation Height - Fully Raised
185.8 (4719) 189.3 (4808)
B
Height to Hinge Pin - Fully Raised
142.0 (3607) 142.0 (3607)
C
Overall Height - Top of ROPS
81.1 (2060) 81.1 (2060)
D
Ground Clearance - to Chassis
(Between Wheels)
9.1 (231) 9.1 (231)
E
Overall Length - Bucket Down
155.8 (3957) 159.3 (4046)
F
Overall Length (Less Bucket)
117.5 (2985) 117.5 (2985)
G
Wheel Base - Nominal
54.3 (1379) 54.3 (1379)
H
Dump Reach - Bucket Full Height
33.0 (838) 36 (914)
I
Rollback at Ground
28° 28°
J
Dump Angle at Full Height
40° 40°
K
Overall Width - Less Bucket
80.3 (2040) 80.3 (2040)
L
Bucket Width - Overall
84.0 (2134) 84.0 (2134)
M
Clearance Circle - Rear
72.0 (1829) 72.0 (1829)
N
Clearance Circle - Front (Less Bucket)
58.3 (1481) 58.3 (1481)
O
Clearance Circle - Front (With Bucket)
98.1 (2492) 101.3 (2573)
P
Seat to Ground Height
40.5 (1029) 40.5 (1029)
Q
Rollback Angle at Full Height
97° 97°
R
Dump Height
108.0 (2743) 105.7 (2685)
S
Departure Angle
30° 30°
Reach Maximum (Bucket Flat)
48.5 (1232) 52.0 (1321)
Maximum Back Grading Angle
86° 86°
