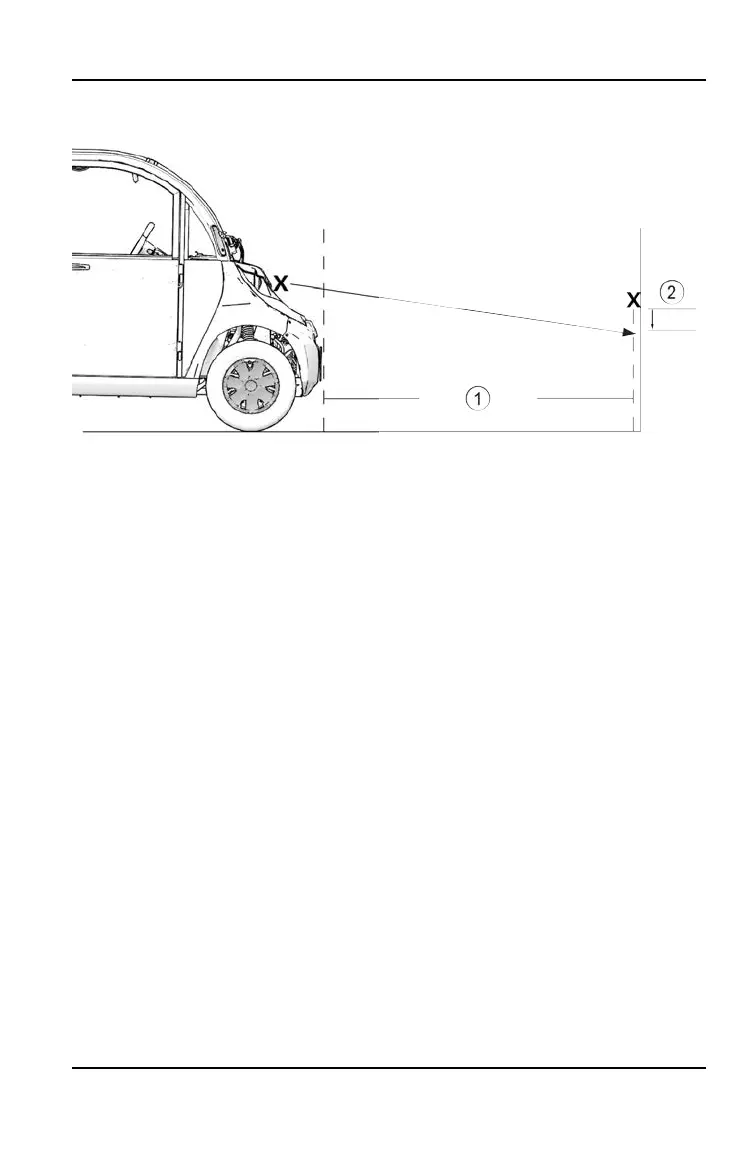

HEADLIGHT BEAM ADJUSTMENT
1. Place the vehicle on a level surface with the headlight approximately 25 ft.
(7.6 m) from a wall
q
.
2. Measure the distance from the floor to the center of the headlight and make
a mark on the wall at the same height.
3. Apply the brakes. Turn the key on. Turn the headlights on.
4. Observe the headlight aim. The most intense part of the headlight beam
should be aimed 8" (20 cm) below the mark placed on the wall
w
. Include
the weight of a rider on the seat while performing this step.
5. If a headlight needs adjustment, access the adjustment screw under the
hood or through the wheel well.
6. Loosen the headlight adjustment screw, adjust the headlight, and tighten
the screw.
7. Repeat steps 4-6 until the lamp is properly adjusted.
69
MAINTENANCE
